How Shaft Grounding Rings Improve Reliability in HVAC Fan and Motor Systems
Time: 2026-04-27 16:59:30     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.

1. Industry Background: Energy Efficiency Comes with Hidden Risks

In modern HVAC systems, improving energy efficiency is a top priority. Most fans, pumps, and compressors now rely on variable frequency drives (VFDs) to adjust speed and reduce energy consumption. However, this shift has introduced a less visible issue. As VFD technology becomes more common, motors are exposed to high-frequency electrical signals that did not exist in traditional systems. Over time, these signals can create electrical imbalances inside the motor, leading to shaft voltage buildup—an issue that often goes unnoticed until it starts causing real damage.

2. Why HVAC Motors Are Prone to Shaft Current

VFD-driven motors generate non-sinusoidal waveforms, which create capacitive coupling between internal components of the motor. This causes electrical potential to accumulate on the shaft. When the voltage exceeds a certain threshold, it discharges through the bearing in the form of microscopic sparks.

• Long operating hours (often 24/7)
• Distributed systems across large buildings
• Limited routine inspection

These factors make HVAC motors particularly vulnerable to gradual electrical damage.

3. The Real Impact: Maintenance Cost and System Reliability

At first, the effects of shaft current may seem minor—slight noise or vibration that can easily be ignored. But over time, repeated electrical discharge damages the bearing surface, leading to increased friction, lubrication breakdown, and eventually premature failure. In commercial buildings, this doesn’t just mean replacing a motor component. It can disrupt ventilation, affect indoor comfort, and even impact business operations. For facility managers, this translates into higher maintenance costs and unexpected downtime, which are far more expensive than the initial issue itself.

4. Why Traditional Solutions Fall Short

Some HVAC systems attempt to address this issue using insulated bearings or simple grounding methods. However, these approaches often fail to solve the root problem.

• Insulation only redirects electrical energy rather than eliminating it
• Traditional brushes wear quickly and lose effectiveness over time
• Continuous operation reduces long-term stability

As a result, many systems still face recurring failures.

5. Volsun Solution: Stable and Long-Term Protection

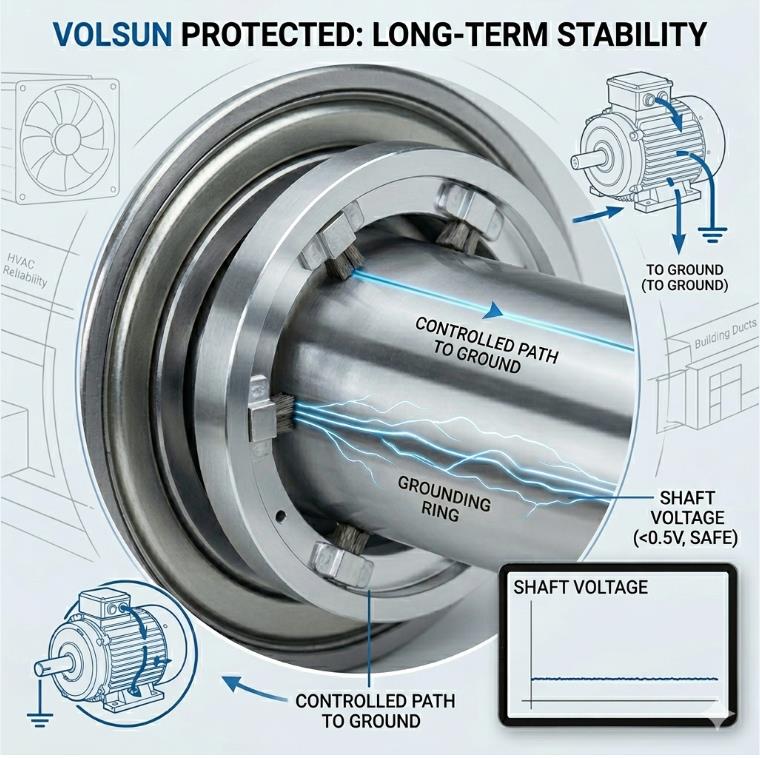

The shaft grounding ring from Volsun is designed to address this issue directly. Instead of blocking or redirecting electrical energy, it provides a controlled path for shaft current to safely discharge. Installed close to the bearing, it allows electrical charges to flow to ground before they can cause damage. With a static resistance of less than 1Ω and a dynamic contact resistance maintained within 10Ω throughout its service life, the solution ensures consistent performance even under continuous operation.

6. Designed for Continuous Operation Environments

HVAC systems demand reliability over long periods with minimal maintenance. Volsun’s grounding ring uses metallized carbon fibers that maintain stable contact with the shaft, even during extended operation.

• Low wear over time
• Stable electrical contact
• Reduced maintenance needs

This makes it particularly suitable for building systems where downtime must be minimized.

7. Application Results: Lower Cost, Higher Reliability

By integrating shaft grounding rings into HVAC systems, operators can reduce the risk of unexpected failures while improving overall system stability. Fewer breakdowns mean fewer emergency repairs, and longer component lifespan helps lower total operating costs. Over time, this creates a more reliable and predictable maintenance cycle, which is especially valuable in large-scale buildings where HVAC systems play a critical role.

As HVAC systems continue to evolve, the balance between efficiency and reliability becomes increasingly important. Addressing shaft current is a key step in ensuring that energy savings do not come at the cost of long-term performance.
