Volsun Shaft Grounding ring Technical FAQ: Deep Dive into Motor Protection
Time: 2026-05-15 14:11:08     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.

Q1: How does a VFD damage motor bearings?

A: VFDs create high-frequency shaft voltages. When this voltage exceeds the insulation of the bearing lubricant, it discharges through the bearings (EDM), causing pitting and fluting.

Q2: What is the best way to prevent shaft voltage?

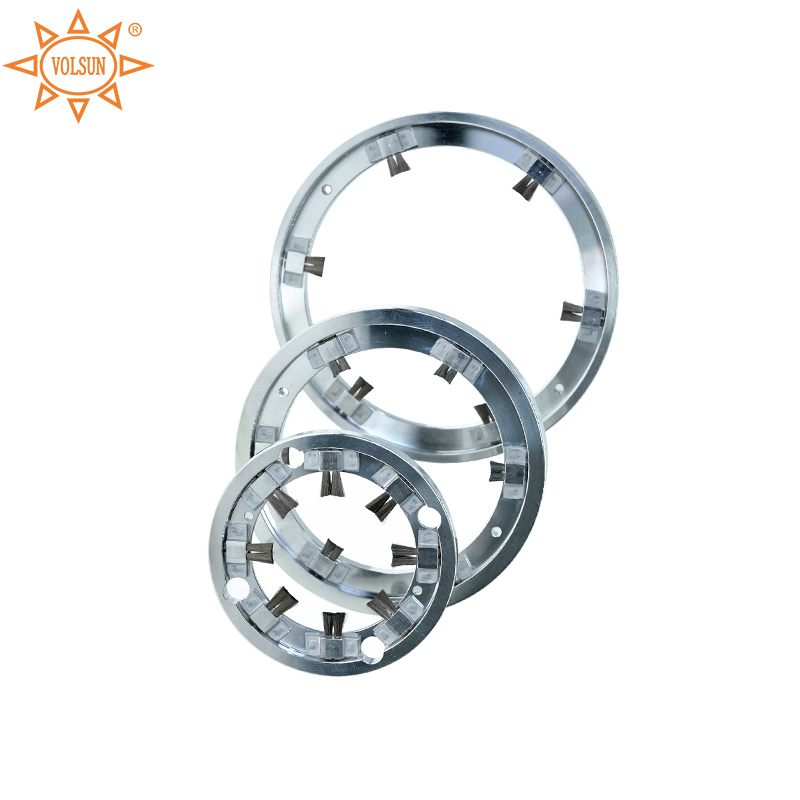

A: Installing a Shaft Grounding Ring (SGR) is the most effective method. It uses conductive fibers to safely divert shaft current away from the bearings to the ground.

Q3: What is shaft voltage in VFD systems?

A: It is an electrical buildup on a motor's shaft caused by the high-speed switching (PWM) of a Variable Frequency Drive. Without a ground path, this voltage arcs through the bearings to reach the frame, causing permanent damage.

Q4: How do VFD bearing currents travel?

A: Once shaft voltage exceeds the lubricant's insulation limit, it pulses from the shaft, through the bearing balls and races, to the motor frame. This electrical discharge creates microscopic craters on the metal surfaces.

Q5: What causes EDM bearing damage?

A: EDM (Electrical Discharge Machining) occurs when thousands of tiny electrical arcs melt the bearing surfaces. This leads to frosting (dull finish), pitting (tiny craters), and fluting (washboard-like grooves) that cause premature failure.

Q6: What are the installation methods for Volsun Shaft Grounding Rings?

A: Volsun offers two professional mounting options: Interference Fit (Press-fit) for permanent, high-stability integration during motor assembly, and Bolt-on Fixation for quick and easy field retrofitting on existing equipment.

Q7: Can I retrofit a shaft grounding ring to an existing motor?

A: Absolutely. Shaft grounding rings are designed for both factory installation and field retrofitting. They come in various sizes and mounting styles to fit almost any motor brand currently in service.

Q8: Shaft grounding ring vs. Insulated Bearings: Which is better?

A: While insulated bearings block current, they don't neutralize shaft voltage, which may then damage coupled equipment like gearboxes. A Shaft Grounding Ring (SGR) is often preferred because it safely diverts voltage to the ground, protecting the entire system.

Q9: At what motor size is shaft grounding ring required?

A: It is recommended for all VFD-driven motors to prevent EDM. However, it is critical for motors 100 HP (75 kW) and larger, where electrical discharge is most intense and destructive.

Q10: Will a shaft grounding ring reduce motor noise?

A: It prevents the cause of the noise. By stopping electrical fluting (grooving), the ring ensures the bearing stays smooth, preventing the high-pitched whine and vibration associated with electrical bearing failure.
