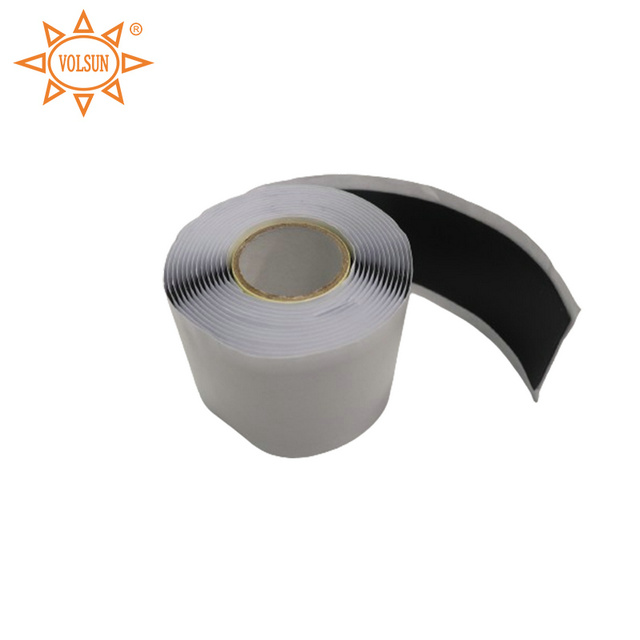

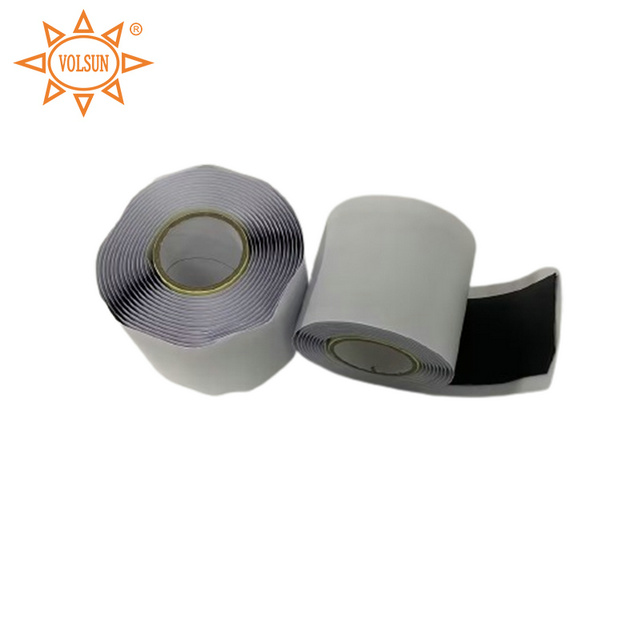

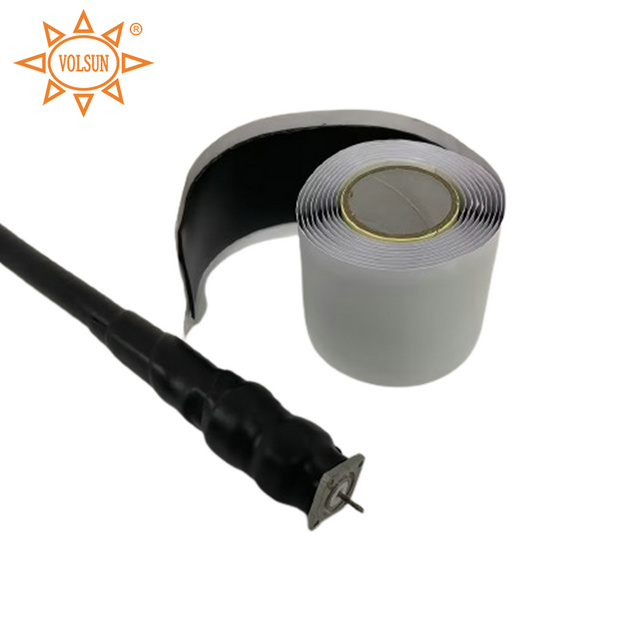

Volsun Insulated Waterseal Mastic Tape Butyl Waterproof Mastic Tape
Time: 2024-06-25 16:32:24     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.


Description

Waterproof insulation tape is mainly composed of synthetic rubber, which can be used as the connecting insulation material of electrical conductors at 80℃. It has good water resistance, suitable for low-voltage wire insulation, handling abnormal conditions in the connection, moisture-proof sealing of the ground wire of the high-voltage joint, wrapping and covering of the surface of the winding high-voltage line and irregular joints or valve joints.


Features

  • Operating temperature:-40℃~+85
  • Non-corrosive adhesive in the form of flexible tape, clean to use, no waste
  • Provides optimal compliance to help seal multi-conductor cable connections and wire outlets at high voltage contacts
  • Sealing grade:IP68


Technical Performance


Technical specification of waterproof insulating composite tape backing

Item

Typical Data

Test Method

Tensile strength

1.7MPa

GB/T 528-2009

Breakdown strength

20kV/mm

GB/T1698-2005

Volume resistivity

1*1014*cm

JB/T 1692-2008

Technical specification of waterproof insulation tape

Item

Typical Data

Test Method

Tensile strength

1.0MPa

GB/T 528-2009

Elongation at break

500%

GB/T 528-2009

Heat Resistance(100℃,1h

No Crack

JB/T 6464-2006

Resistant to thermal stress

cracking130℃,1h

No Crack

JB/T 6464-2006

Adhesion (with stainless steel plateN/cm)

26

GB/T2792-2014

Water absorption23℃,

24h%

0.15

GB/T 1034-2008

Dimension


Sizemm

Widthmm

Thicknessmm

Lengthm

VS-T1

50.0±1.5

1.65±0.1

3.0±0.1


Usage Method & Precautions

  • Clean the surface of the substrate to be installed before use
  • Cut the product size based on the dimensions of the installation position
  • The environment should be free of large debris or other pollutants to avoid affecting the installation effect and protective performance of the material
  • The cutting size of the product should be similar to that of the installation position. The deviation should not be too large






KEYWORD:waterproof seal mastic tape, waterseal mastic tape
