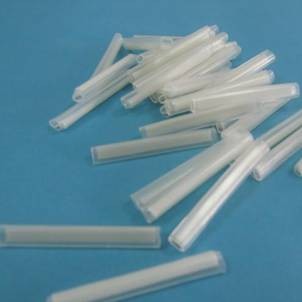

Fiber Optic Fusion Splice Protector
- TZRS-FOSP
- Cross-linked polyolefin
- Wide range of sizes
- Pre-installed stainless steel or ceramic rod
- Accommodates single or ribbon fibers
- Meet: UL 224, VW-1 600V, RoHS
- Operating temperature: -45°C~+100°C
- Minimum fully recovery temperature: 120°C
- Detailed
Fiber Optic Fusion Splice Protector
Description
Consist of cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices
Features
● Cross-linked polyolefin
● Wide range of sizes
● Pre-installed stainless steel or ceramic rod
● Accommodates single or ribbon fibers
● Meet: UL 224, VW-1 600V, RoHS
● Operating temperature: -45°C~+100°C
● Minimum fully recovery temperature: 120°C
Technical Performance
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
≥18MPa |
ASTM D 2671 |
|
Ultimate elongation |
≥700% |
ASTM D 2671 |
|
Longitudinal |
-5%～+5% |
ASTM D 2671 |
|
Dielectric strength |
≥20kV/mm |
IEC 60243 |
|
dielectric constant |
≤2.5 |
IEC 60243 |

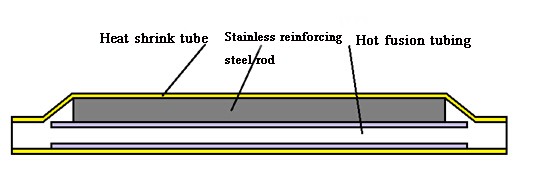

Structure
Dimensions
|
Splice protector (mm) |
Fusion Tube (mm) |
Steel Rod (mm) |
Packing (pcs/bag) |
|||
|
O.D. |
L |
O.D. |
L |
O.D. |
L |
100 |
|
Larger sleeves |
||||||
|
3.0 |
61.0 |
1.40 |
61 |
1.5 |
55 |
100 |
|
3.0 |
45.0 |
1.40 |
45 |
1.5 |
40 |
100 |
|
3.0 |
23.0 |
1.40 |
23 |
1.5 |
18 |
100 |
|
Standard sleeves |
||||||
|
2.5 |
61.0 |
1.40 |
61 |
1.0 |
57 |
100 |
|
2.5 |
45.0 |
1.40 |
45 |
1.0 |
41 |
100 |
|
2.5 |
40.0 |
1.40 |
40 |
1.0 |
36 |
100 |
|
2.5 |
2.5 |
1.40 |
30 |
1.0 |
26 |
100 |
|
2.5 |
2.5 |
1.40 |
25 |
1.0 |
21 |
100 |
|
Mini/micro sleeves |
||||||
|
1.3 |
1.3 |
0.35 |
40 |
0.5 |
40 |
100 |
|
1.3 |
1.3 |
0.35 |
25 |
0.5 |
25 |
100 |
|
1.3 |
1.3 |
0.35 |
18 |
0.5 |
18 |
100 |
|
1.3 |
1.3 |
0.35 |
15 |
0.5 |
15 |
100 |
|
1.3 |
1.3 |
0.35 |
10 |
0.5 |
10 |
100 |
Ordering information
Standard colors: Clear
Special colors: Blue, Yellow, Green, Violet, Brown. Red
Packaging: Standard packaging on bags
