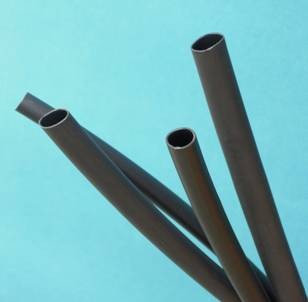

Diesel Resistant Modified Elastomeric Heat Shrink Tubing
- TZRS-DR150 (2X)
- Flexible, flame retardant
- Shrink Temperature:90°C ~150°C
- Continuous Operating Temperature:-75°C~150°C
- Shrink Ratio:2:1
- RoHS Compliant
- Standard colors :Black
- Detailed
Diesel Resistant Modified Elastomeric Heat
Shrink Tubing
Description
TZRS-DR150(2X)tubing is a high performance, rugged heat shrinkable tubing designed for harsh operating conditions. T h e tubing is made from flexible elastomeric polyester and has a continuous operating temperature range of -55°C (-70°F) to 150°C (302°F). TZRS-DR 150(2X)-A is resistant to a wide range of solvents and chemicals including aviation fuel, diesel fuel, lubricating oils and hydraulic fluid. Volsun TZRS-DR 150(2X)-A tubing is specifically designed to pass the SC-X15111C military specification but also meets the functional requirements of MIL-DTL-2 3 0 5 3 / 1 6
Features
● Flexible, flame retardant
● Shrink Temperature:90°C ~150°C
● Continuous Operating Temperature:-75°C~150°C
● Shrink Ratio:2:1
● RoHS Compliant
● Standard colors :Black
Applications
TZRS-DR150 (2X)-A tubing is primarily designed for wire harnessing applications on military ground vehicles. It was primarily developed for the M-1 tank program, but is well suited for any application where conditions call for a high performance heat shrink tubing, particularly where the tubing will be exposed to petroleum based fluids. TZRS-DR150 (2X)-A tubing is also an excellent choice for heavy duty equipment and off -road vehicles.
Technical Performance
|
Properties |
Typical Data |
Test Methods |
|
Tensile Strength |
≥12MPa |
ASTM D 2671 |
|
Elongation |
≥400% |
ASTM D 2671 |
|
Tensile Strength After Heat Aging |
≥8MPa |
160°C×168h |
|
Elongation After Heat Aging |
≥220% |
160°C×168h |
|
Longitudinal Change |
-8%~+8% |
ASTM D 2671 |
|
Dielectric Strength |
≥15kV/mm |
IEC 60243 |
|
Fluid Resistance Tensile Strength |
≥10MPa |
ISO 37 24hrs.(diesel 70°C,hydraulic 70°C, lubricant 100°C) |
|
Fluid Resistance Elongation |
≥300% |
|
|
Flammability |
VW-1 |
UL 224 |
|
Heat Shock |
No crack,no dripping |
215°C×4h |

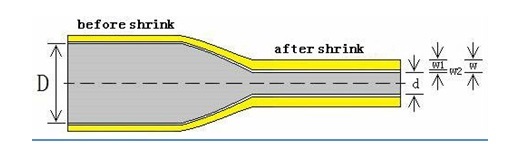

Structure
Dimensions
|
Sizes |
I.D. As Supplied D(mm) |
Sizes After Full Recovery(mm) |
Standard Package (m/spool) |
|
|
I.D. d |
Wall Thickness w |
|||
|
Φ3.2 |
≥3.2 |
≤1.6 |
0.76±0.15 |
200 |
|
Φ4.8 |
≥4.8 |
≤2.4 |
0.84±0.15 |
100 |
|
Φ6.4 |
≥6.4 |
≤3.2 |
0.89±0.15 |
100 |
|
Φ9.5 |
≥9.5 |
≤4.8 |
1.02±0.20 |
50 |
|
Φ12.7 |
≥12.7 |
≤6.4 |
1.22±0.20 |
30 |
|
Φ19.0 |
≥19.0 |
≤9.5 |
1.45±0.28 |
30 |
|
Φ25.4 |
≥25.4 |
≤12.7 |
1.78±0.28 |
30 |
|
Φ38.1 |
≥38.1 |
≤19.0 |
2.41±0.41 |
15 |
|
Φ50.8 |
≥50.8 |
≤25.4 |
2.79±0.41 |
15 |
|
Φ76.0 |
≥50.8 |
≤38.0 |
3.18±0.50 |
15 |
Note: Non-standard sizes and package are available on your request
