Military Grade Flame Retardant Heat Shrinkable Tubing
- DBRS-135G (2X) R
- Meets:UL 224, CAN/CSA C22.2 NO198.1-99
- Shrink Ratio:2:1
- Semi-rigid, Flame Retardant,Wear
- Resistant,Resistant to general industrial fluids
- Shrink Temperature:90℃~130℃
- Continuous Operating Temperature:-55℃~135℃
- RoHS Compliant
- Standard color:Black
- Detailed

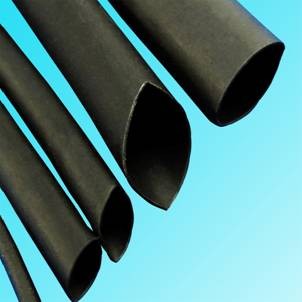

Military Grade Flame Retardant Heat Shrinkable Tubing
Description
Volsun DBRS-135G(2X)R is a heat shrinkable tubingmade of cross-linked polyolefin, which carries excellent abrasion resistance,corrosion resistance, and very excellent physical, chemical and electricalproperties. DBRS-135G(2X)R finds extensive applications in defence, aerospaceand high precision electronic devices serving mainly insulation and protectionpurposes.
Features
● Meets:UL 224, CAN/CSA C22.2 NO198.1-99
● Shrink Ratio:2:1
● Semi-rigid, Flame Retardant,Wear Resistant,Resistant to general industrial fluids
● Shrink Temperature:90℃~130℃
● Continuous Operating Temperature:-55℃~135℃
● RoHS Compliant
● Standard color:Black
Technical Performance
|
Properties |
Typical Data |
Test Methods |
|
Tensile Strength |
≥16Mpa |
ASTM D 2671 |
|
Ultimate Elongation |
≥500% |
ASTM D 2671 |
|
Tensile Strength After Heat Aging |
≥14Mpa |
175℃ ×168h |
|
Elongation After Heat Aging |
≥250% |
175℃ ×168h |
|
Longitudinal Change |
-5%~+5% |
ASTM D 2671 |
|
Flammability |
Self-extinguishing in 30 sec. |
AMS-DTL-23053/4 |
|
Voltage Withstand(Rated Voltage 600V) |
2500V,1min, no breakdown |
UL 224 |
|
Heat Shock |
No cracks, no dripping |
UL 224,250℃ ×4h |
|
Dielectric Strength |
≥20KV/mm |
ASTM D 149 |
|
Volume Resistivity |
≥1014Ω.cm |
ASTM D 876 |
|
Chemical Fluids Resistance |
Pass |
SAE-AMS-DTL-23053/5 |

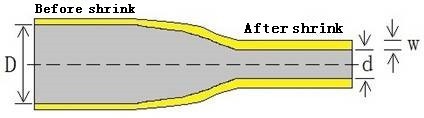

Structure
Dimensions
|
Size（mm） |
As supplied D(mm) |
After full recovery |
Standard Package (M/Roll) |
|
|
Inner diameter d |
Wall thickness w |
|||
|
Φ1.2 |
≥1.2 |
≤0.60 |
≥0.40 |
200 |
|
Φ1.6 |
≥1.6 |
≤0.80 |
≥0.40 |
200 |
|
Φ2.4 |
≥2.4 |
≤1.20 |
≥0.50 |
200 |
|
Φ3.2 |
≥3.2 |
≤1.60 |
≥0.50 |
200 |
|
Φ4.8 |
≥4.8 |
≤2.40 |
≥0.50 |
100 |
|
Φ6.4 |
≥6.4 |
≤3.20 |
≥0.60 |
100 |
|
Φ9.5 |
≥9.5 |
≤4.80 |
≥0.60 |
100 |
|
Φ12.7 |
≥12.7 |
≤6.40 |
≥0.60 |
50 |
|
Φ16.0 |
≥16.0 |
≤8.00 |
≥0.70 |
50 |
|
Φ19.1 |
≥19.1 |
≤9.50 |
≥0.70 |
50 |
|
Φ25.4 |
≥25.4 |
≤12.7 |
≥0.90 |
50 |
Note: Non-standard packages and sizes are available on request
