150°C High Temperature Flame Retardant Heat Shrink Tubing
- DBRS-150G(2X)
- Meets UL class of high temperature integrated tube compatible AMS-DTL = 23053/5 and UL 224 , CAN / CSA C22.2 NO198.1 -99
- Heat shrink ratio : 2:1
- Low smoke generation , flexible, flame retardant
- Min. shrink temperature : 84 °C
- Min. full recovery temperature :120 °C
- Continuous operating temperature : -55 ℃ ~ 150 ℃
- RoHS compliant
- Standard colors: black, white, red , yellow , Green, blue and other four international standard colors. More colors are available upon request.
- Detailed
150°C High Temperature Flame Retardant Heat Shrink Tubing
Description
150 ° C high temperature flame retardant heatshrinkable tubing, made of radiation cross-linked polyolefin material, hasexcellent physicochemical electrical properties. Typical applications includeinsulation of electrical connections, wire splices or terminals in hightemperature conditions, rust and corrosion resistance for the welding point,mechanical and wiring harness protection in electronics, communications, automotive,marine, aircraft manufacturing and other fields.
Features
● Meets UL class of high temperature integrated tube compatible AMS-DTL = 23053/5 and UL 224 , CAN / CSA C22.2 NO198.1 -99
●Heat shrink ratio : 2:1
● Low smoke generation , flexible, flame retardant
● Min. shrink temperature : 84 °C
● Min. full recovery temperature :120 °C
● Continuous operating temperature : -55 ℃ ~ 150 ℃
● RoHS compliant
● Standard colors: black, white, red , yellow , Green, blue and other four international standard colors. More colors are available upon request.
Technical Data
|
Properties |
Typical Data |
Test Method |
|
Tensile strength |
≥10.4MPa |
ASTM D 2671 |
|
Elongation |
≥200% |
ASTM D 2671 |
|
Tensile strength after heat aging |
≥7.3MPa |
180℃×168h |
|
Elongation after heat aging |
≥100% |
180℃×168h |
|
Longitudinal change |
-5%～+5% |
ASTM D 2671 |
|
Flammability |
VW-1 |
ASTM D 2671 C |
|
Voltage withstand(Rated voltage 600V) |
2500V,1min, without breakdown |
UL 224 |
|
Heat shock |
No cracking, no dripping |
UL 224，250℃×4h |
|
Dielectric strength |
≥15kV/mm |
ASTM D 149 |
|
Volume resistivity |
≥1014Ω.cm |
IEC 60093 |

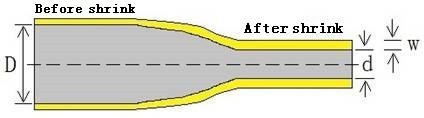

Structure
Dimension (2:1 Shrink Ratio)
|
Size(mm) |
As supplied D(mm) |
After full recovered (mm) |
Standard Package (M/Roll) |
|
|
Inner diameter d |
Wall thickness w |
|||
|
φ0.6/0.35 |
≥0.90 |
≤0.35 |
≥0.33 |
200 |
|
φ0.8/0.40 |
≥1.00 |
≤0.40 |
≥0.33 |
200 |
|
φ1.0/0.65 |
≥1.60 |
≤0.65 |
≥0.33 |
200 |
|
φ1.5/0.85 |
≥2.00 |
≤0.85 |
≥0.36 |
200 |
|
φ2.0/1.00 |
≥2.50 |
≤1.00 |
≥0.44 |
200 |
|
φ2.5/1.25 |
≥3.00 |
≤1.25 |
≥0.44 |
200 |
|
φ3.0/1.50 |
≥3.50 |
≤1.50 |
≥0.44 |
200 |
|
φ3.5/1.75 |
≥4.00 |
≤1.75 |
≥0.44 |
200 |
|
φ4.0/2.00 |
≥4.50 |
≤2.00 |
≥0.44 |
200 |
|
φ4.5/2.25 |
≥4.80 |
≤2.25 |
≥0.44 |
100 |
|
φ5.0/2.50 |
≥5.30 |
≤2.50 |
≥0.56 |
100 |
|
φ6.0/3.00 |
≥6.40 |
≤3.00 |
≥0.56 |
100 |
|
φ7.0/3.50 |
≥7.40 |
≤3.50 |
≥0.56 |
100 |
|
φ8.0/0.40 |
≥8.40 |
≤4.00 |
≥0.56 |
100 |
|
φ9.0/4.50 |
≥9.30 |
≤4.50 |
≥0.56 |
100 |
|
φ10/5.00 |
≥10.3 |
≤5.00 |
≥0.56 |
100 |
|
φ11/5.50 |
≥11.3 |
≤5.50 |
≥0.56 |
100 |
|
φ12/6.00 |
≥12.30 |
≤6.00 |
≥0.56 |
100 |
|
φ13/6.50 |
≥13.4 |
≤6.50 |
≥0.69 |
100 |
|
φ14/7.00 |
≥14.4 |
≤7.00 |
≥0.69 |
100 |
|
φ15/7.50 |
≥15.5 |
≤7.50 |
≥0.69 |
100 |
|
φ16/8.00 |
≥16.5 |
≤8.00 |
≥0.69 |
100 |
|
φ17/8.50 |
≥17.5 |
≤8.50 |
≥0.69 |
100 |
|
φ18/9.00 |
≥18.9 |
≤9.00 |
≥0.69 |
100 |
|
φ20/10.0 |
≥21.5 |
≤10.0 |
≥0.77 |
100 |
|
φ22/11.0 |
≥23.4 |
≤11.0 |
≥0.77 |
100 |
|
φ25/12.5 |
≥25.6 |
≤12.5 |
≥0.77 |
50 |
|
φ28/14.0 |
≥29.0 |
≤14.0 |
≥0.87 |
50 |
|
φ30/15.0 |
≥31.5 |
≤15.0 |
≥0.87 |
50 |
|
φ35/17.5 |
≥36.5 |
≤17.5 |
≥0.87 |
50 |
|
φ40/20.0 |
≥41.5 |
≤20.0 |
≥0.87 |
50 |
|
φ50/25.0 |
≥51.5 |
≤25.0 |
≥0.97 |
25 |
|
φ60/30.0 |
≥60.0 |
≤30.0 |
≥1.07 |
25 |
|
φ70/35.0 |
≥70.0 |
≤35.0 |
≥1.17 |
25 |
|
φ80/40.0 |
≥80.0 |
≤40.0 |
≥1.17 |
25 |
|
φ100/50.0 |
≥100.0 |
≤50.0 |
≥1.17 |
25 |
|
φ120/60.0 |
≥120.0 |
≤60.0 |
≥1.17 |
25 |
|
φ150/70.0 |
≥150.0 |
≤70.0 |
≥1.17 |
25 |
Note: non standard dimensions and packages are also available on request
