Flame Retardant Heat Shrink Tubing (2X)
- DBRS-125G (2X)
- Meets UL 224, CAN / CSA C22.2 NO198.1 -99
- Heat shrink ratio: 2:1
- Highly flame retardant , environmentally friendly
- Min. shrink temperature : 84 ℃
Min. full recovery temperature : 120 ℃ Continuous operating temperature : -55 ℃ ~ 125 ℃- RoHS Compliant
- Standard Colors: black, white, red, yellow, green, blue and other four international standard colors. More colors are available upon request
- Detailed

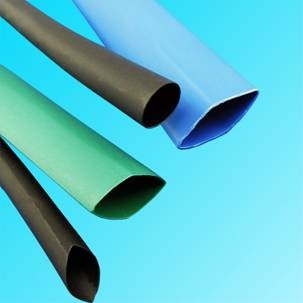

Flame Retardant Heat Shrink Tubing (2X)
Description
Flame retardant heat shrinkable tubing, made of radiation cross-linkedpolyolefin, has excellent physicochemical and electrical properties. It canreliably insulate cable and wire splices and terminations, effectively protectsoldered joint and provides good mechanical protection for wire harness inelectronic, communications, automotive, shipping and aircraft manufacturingindustries.
Features
● Meets UL 224, CAN / CSA C22.2 NO198.1 -99
● Heat shrink ratio: 2:1
● Highly flame retardant , environmentally friendly
● Min. shrink temperature : 84 ℃
● Min. full recovery temperature : 120 ℃
● Continuous operating temperature : -55 ℃ ~ 125 ℃
● RoHS Compliant
● Standard Colors: black, white, red, yellow, green, blue and other four international standard colors. More colors are available upon request
Technical Data
|
Properties |
Typical Data |
Test Method |
|
Tensile strength |
≥10.4MPa |
ASTM D 2671 |
|
Elongation |
≥200% |
ASTM D 2671 |
|
Tensile strength after heat |
≥7.3MPa |
158℃×168h |
|
Elongation after aging |
≥100% |
158℃×168h |
|
Longitudinal change |
-5%～+5% |
ASTM D 2671 |
|
Flammability |
VW-1 |
ASTM D 2671 C |
|
Voltage withstand (Rated voltage, 600V) |
2500V，1min without breakdown |
UL 224 |
|
Heat shock |
No track ,no drippings |
UL 224，250℃×4h |
|
Dielectric strength |
≥15kV/mm |
ASTM D 149 |
|
Volume resistivity |
≥1014Ω.cm |
IEC 60093 |
Structure

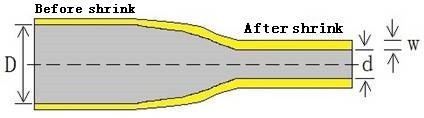

Dimension (shrink ratio: 2:1)
|
Size (mm) |
As supplied D(mm) |
After full recovery (mm) |
Standard Package (M/Roll) |
|
|
Inner diameter d |
Wall thickness w |
|||
|
φ0.5/0.35 |
0.7±0.2 |
≤0.35 |
0.33±0.10 |
200 |
|
φ0.6/0.40 |
0.9±0.2 |
≤0.40 |
0.33±0.10 |
200 |
|
φ0.8/0.50 |
1.1±0.2 |
≤0.50 |
0.33±0.10 |
200 |
|
φ1.0/0.65 |
1.5±0.2 |
≤0.65 |
0.36±0.10 |
200 |
|
φ1.5/0.85 |
2.0±0.2 |
≤0.85 |
0.36±0.10 |
200 |
|
φ2.0/1.00 |
2.5±0.2 |
≤1.00 |
0.45±0.10 |
200 |
|
φ2.5/1.30 |
3.0±0.2 |
≤1.30 |
0.45±0.10 |
200 |
|
φ3.0/1.50 |
3.5±0.2 |
≤1.50 |
0.45±0.10 |
200 |
|
φ3.5/1.80 |
4.0±0.2 |
≤1.80 |
0.45±0.10 |
200 |
|
φ4.0/2.00 |
4.5±0.2 |
≤2.00 |
0.45±0.10 |
200 |
|
φ4.5/2.30 |
5.0±0.2 |
≤2.30 |
0.45±0.10 |
100 |
|
φ5.0/2.50 |
5.5±0.2 |
≤2.50 |
0.56±0.10 |
100 |
|
φ5.5/2.75 |
6.0±0.2 |
≤2.75 |
0.56±0.10 |
100 |
|
φ6.0/3.00 |
6.5±0.2 |
≤3.00 |
0.56±0.10 |
100 |
|
φ7.0/3.50 |
7.5±0.3 |
≤3.50 |
0.56±0.10 |
100 |
|
φ8.0/4.00 |
8.5±0.3 |
≤4.00 |
0.56±0.10 |
100 |
|
φ9.0/4.50 |
9.5±0.3 |
≤4.50 |
0.56±0.10 |
100 |
|
φ10/5.00 |
10.5±0.3 |
≤5.00 |
0.56±0.10 |
100 |
|
φ11/5.50 |
11.5±0.3 |
≤5.50 |
0.56±0.10 |
100 |
|
φ12/6.00 |
12.5±0.3 |
≤6.00 |
0.56±0.10 |
100 |
|
φ13/6.50 |
13.5±0.3 |
≤6.50 |
0.70±0.10 |
100 |
|
φ14/7.00 |
14.5±0.3 |
≤7.00 |
0.70±0.10 |
100 |
|
φ15/7.50 |
15.5±0.4 |
≤7.50 |
0.70±0.10 |
100 |
|
φ16/8.00 |
16.5±0.4 |
≤8.00 |
0.70±0.10 |
100 |
|
φ18/9.00 |
19.0±0.5 |
≤9.00 |
0.70±0.10 |
100 |
|
φ20/10.0 |
22.0±0.5 |
≤10.0 |
0.80±0.15 |
100 |
|
φ22/11.0 |
24.0±0.5 |
≤11.0 |
0.80±0.15 |
100 |
|
φ25/12.5 |
26.0±0.5 |
≤12.5 |
0.90±0.15 |
50 |
|
φ28/14.0 |
29.0±0.5 |
≤14.0 |
0.90±0.15 |
50 |
|
φ30/15.0 |
31.5±1.0 |
≤15.0 |
1.00±0.15 |
50 |
|
φ35/17.5 |
36.5±1.0 |
≤17.5 |
1.00±0.15 |
50 |
|
φ40/20.0 |
41.5±1.0 |
≤20.0 |
1.00±0.15 |
50 |
|
Φ45/22.5 |
≥45.0 |
≤22.5 |
1.00±0.15 |
50 |
|
φ50/25.0 |
≥50.0 |
≤25.0 |
1.10±0.15 |
25 |
|
φ60/30.0 |
≥60.0 |
≤30.0 |
1.20±0.15 |
25 |
|
φ70/35.0 |
≥70.0 |
≤35.0 |
1.30±0.20 |
25 |
|
φ80/40.0 |
≥80.0 |
≤40.0 |
1.30±0.20 |
25 |
|
φ90/45.0 |
≥90.0 |
≤45.0 |
1.30±0.20 |
25 |
|
φ100/50.0 |
≥100.0 |
≤50.0 |
1.30±0.20 |
25 |
|
φ120/60.0 |
≥120.0 |
≤60.0 |
1.30±0.20 |
25 |
|
φ150/75.0 |
≥150.0 |
≤75.0 |
1.30±0.20 |
25 |
|
φ180/90.0 |
≥180.0 |
≤90.0 |
1.30±0.20 |
25 |
|
φ210/105.0 |
≥210.0 |
≤105.0 |
1.30±0.30 |
25 |
|
φ230/115.0 |
≥230.0 |
≤115.0 |
1.30±0.30 |
25 |
|
φ250/125.0 |
≥250.0 |
≤125.0 |
1.30±0.30 |
25 |
|
Φ300/150.0 |
≥300.0 |
≤150.0 |
1.30±0.30 |
25 |
Note: Non-standard dimensions and packages also available on your request
