Volsun VS-EPTS2102 High Thermal Conductivity Epoxy Potting Compound
- VS-EPTS2102
- Detailed

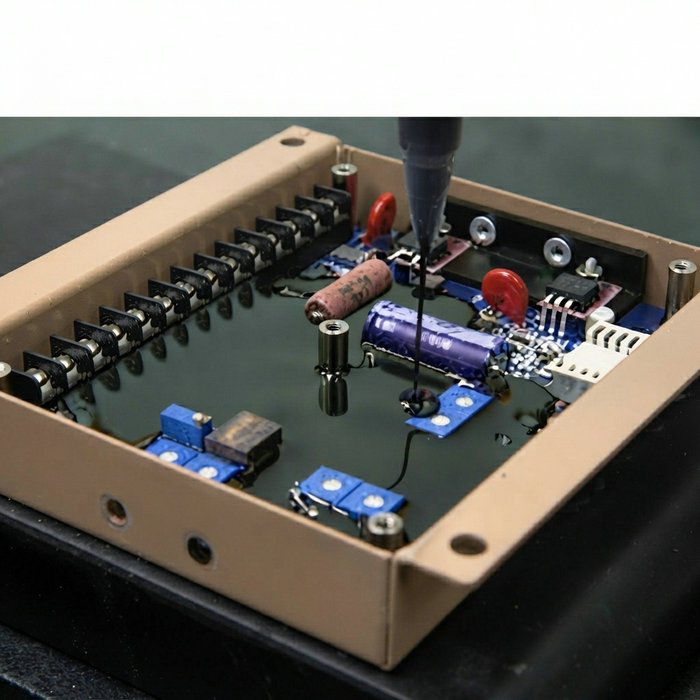

VS-EPTS2102 is a two-component, solvent-free, high-temperature curing epoxy resin thermal conductive potting adhesive. It's suitable for encapsulating devices like motor stators and high-frequency transformers that require high thermal conductivity and good resistance to thermal shock.
Features
- Excellent resistance to thermal shock (-40°C to +180°C)
- High thermal conductivity
- Excellent heat resistance
- Excellent wettability
- Excellent resistance to transmission fluid
Product Specifications
|
Project |
EPTS 2102A |
EPTS 2102B |
|
Main Components |
Epoxy Resin |
Modified Acid Anhydride |
|
Appearance |
Grayish-black paste |
White paste |
|
Viscosity @25℃ |
180000cps |
120000cps |
|
Viscosity @80℃ |
2500cps |
5300cps |
|
Specific Gravity @25℃ |
2.785g/cm3 |
2.655 g/cm3 |
|
Mixing Ratio (by weight) |
100wt% |
75wt% |
Operational Characteristics
|
Model |
Value |
|
|
Mixed viscosity/cps |
80℃ |
2700 |
|
Gelation time/min |
90℃ |
45 |
|
110℃ |
16 |
|
|
Usable time/min |
Viscosity doubling at 80°C |
24 |
|
Viscosity to 10,000 cps at 80°C |
42 |
|
|
Curing conditions (Select the appropriate curing conditions based on construction conditions) |
95℃/2hr+130℃/3hr |
|
Cured Material Properties (95℃/2hr+130℃/3hr)
|
Project |
Standard |
Unit |
Value |
|
|
Hardness |
ISO 868 |
ShoreD |
92 |
|
|
Glass transition temperature |
IEC 1006 |
℃ |
85 |
|
|
Tensile strength |
ISO 527 |
MPa |
60 |
|
|
Elongation at break |
ISO 527 |
% |
0.5 |
|
|
Tensile modulus |
ISO 527 |
GPa |
25 |
|
|
Bending strength |
ISO 178 |
MPa |
105 |
|
|
Bending modulus of elasticity |
ISO 178 |
GPa |
16 |
|
|
Impact strength |
ISO 179-93 |
KJ/m2 |
9 |
|
|
Linear thermal expansion coefficient |
ISO 11359-2 |
ppm/K |
23 (＜Tg) |
|
|
86 (＞Tg) |
||||
|
Tensile shear strength (Fe/Fe) |
GBT 7124-2008 |
MPa |
20 |
|
|
Thermal conductivity |
ISO 8894-1 |
W/mK |
2.16 |
|
|
Water absorption rate |
25℃/7D |
ISO 62 |
% by wt |
0.05 |
|
100℃/120min |
% by wt |
0.05 |
||
|
Breakdown voltage (23°C) |
IEC 60243-1 |
kV/mm |
20 |
|
|
Volume resistivity (23°C) |
IEC 62631 |
Ω.cm |
1.5×1015 |
|
|
Tracking resistance |
IEC 60112 |
CTI |
>600 |
|
Product Specification
|
Size |
Package |
|
VS-EPTS 2102（32L/40kg） |
Component A：16L/20kg；Component B：16L/20kg |
Note: Custom specs and packaging available on request.
Usage
Based on product laboratory test data, it is recommended that customers preheat both the main agent and the curing agent at 80°C for 1 hour before use. Then mix components A and B, evacuate the mixture, and proceed with injection. If bubbles are difficult to remove, the mixture can be preheated for an additional 10 minutes before evacuating and injecting. After baking the A and B components, ensure they are used within 30 minutes to prevent the mixture's viscosity from increasing, which could affect the wetting effect.
- Mix components A and B thoroughly in their original packaging. This is because the fillers in components A and B may settle over time.
- Mix components A and B in a weight ratio of 100:75, mix thoroughly, and then use a vacuum device to remove any bubbles.
- Please note the pot life of this product. Once components A and B are mixed, they should be used as soon as possible. Prolonged storage of the mixed material may affect the application process and product quality.
- Any unused components A and B should be stored separately in sealed containers. During use, care must be taken not to accidentally mix one component into the other, as this may cause contamination and degradation.
Storage Conditions / Shelf Life
- Keep the product tightly sealed and store it in its original packaging at room temperature away from light.
- The product has a shelf life of 6 months from the date of manufacture.
