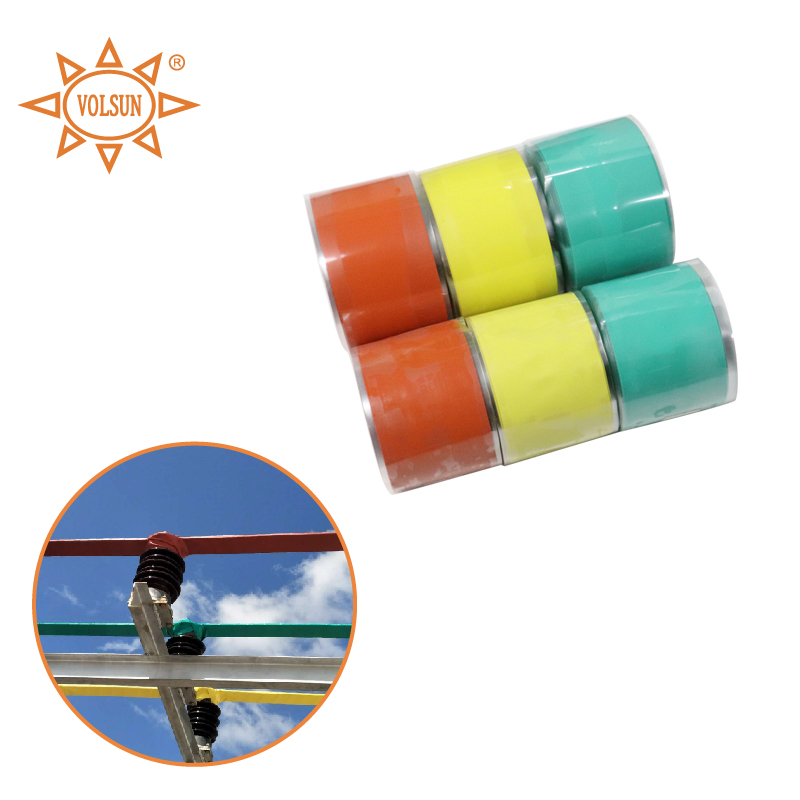

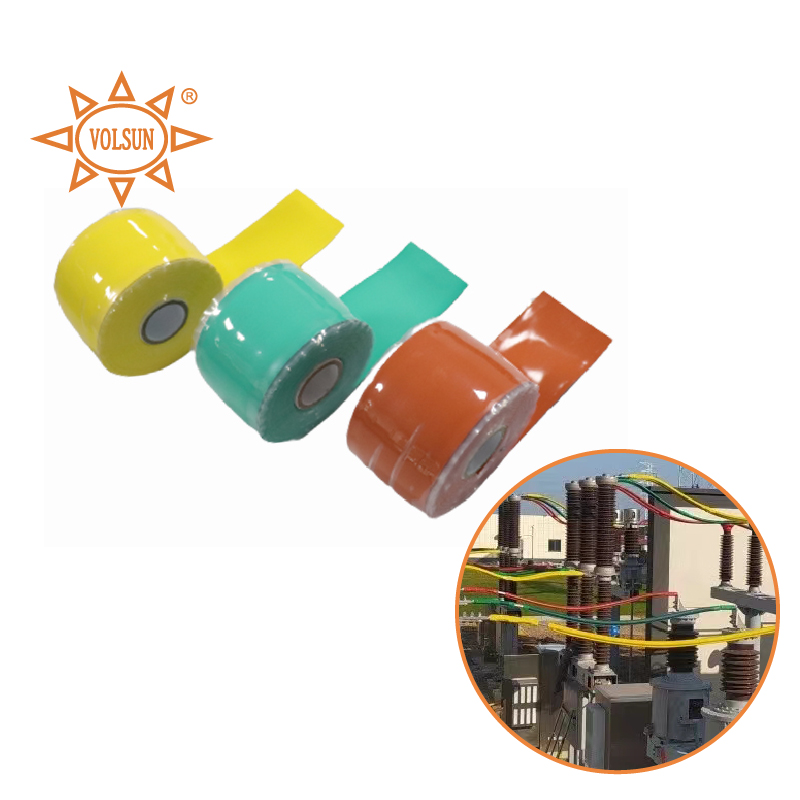

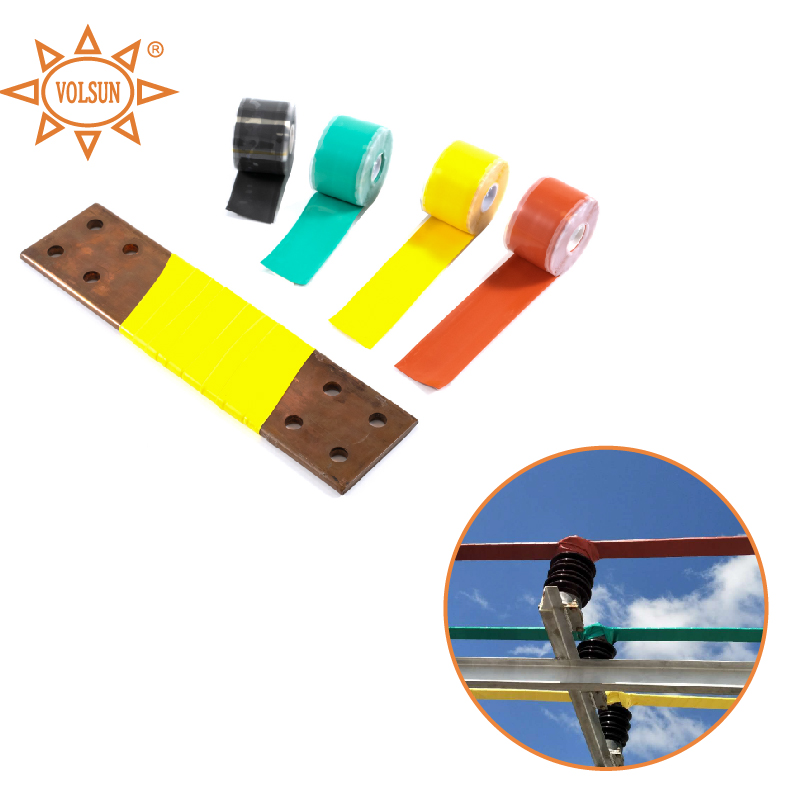

Customizable Silicone Self-fusing Tape For Electrical Switchgear Connectors
- Detailed
Self-amalgamating silicone tape is an easy-to-use, ready-to-apply tape designed to create airtight and watertight seals on various materials and surfaces. It is suitable for applications such as electrical connections, hoses, cables, and dampening vibrations on hand tools. The tape resists tearing, abrasion, and UV degradation, and remains effective when exposed to fuel, water, oil, acids, and numerous solvents. It is rated as a Class H insulator. This product is intended for sealing hoses and plumbing leaks, insulating electrical connections, and wrapping handles of hand tools.
Features
- Standard colors: red, yellow, green, black (other colors can be customized)
- Operating temperature: -60℃~+180℃
- The surface of the tape is not sticky to the touch, after peeling off, no sticky residue will be left
- Strong self-adhesiveness can be produced in a short time, and it can be self-integrated after winding, which can be sealed and waterproof
- The product can be wound into any shape, suitable for wrapping various electrical cable joints and intermediate joints
- Anti-fouling, anti-corrosion, anti-ultraviolet, waterproof, ozone-resistant, anti-aging, suitable for various environments, suitable for outdoor operations
Technical Performance
|
Item |
Typical Data |
Test Standard |
|
Tensile Strength |
≥3.5MPa |
GB/T 528-2009 |
|
Elongation at break |
≥200% |
GB/T 528-2009 |
|
Self-adhesive |
>3.5N/cm |
ASTM D2148 |
|
Flame Retardancy |
V-0 |
UL94 |
|
Dielectric strength |
≥22kV/mm |
GB/T1408.1-2006 |
|
Volume resistivity |
≥1.3×1014Ω·m |
GB/T1410-2006 |
|
Size |
Width(mm) |
Thickness(mm) |
Package(M/Roll) |
|
20*0.8 |
20±2.0 |
0.8±0.08 |
5/ customized |
|
25*0.5 |
25±2.0 |
0.5±0.08 |
5/ customized |
|
25*0.8 |
25±2.0 |
0.8±0.08 |
5/ customized |
|
25*1.0 |
25*1.0 |
1.0±0.08 |
5/ customized |
|
30*1.5 |
30±2.0 |
1.5±0.08 |
5/ customized |
|
50*0.5 |
50±2.0 |
0.5±0.08 |
5/ customized |
