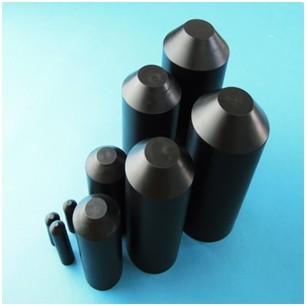

Heat shrink end cap
- MDRS-CAP
- Good sealing, waterproof, moisture proof
- Ultraviolet resistant and weather resistance
- RoHS compliant
- Continuous Operating Temperature: -55°C~110°C
- Shrink Temperature: 120°C
- Standard colors: Black
- Detailed
Heat shrink end cap
Description
MDRS-CAP Heat shrink cable end caps, with flat adhesive coating inside, are typically used to seal cable terminals against moisture etc.
Features
● Good sealing, waterproof, moisture proof
● Ultraviolet resistant and weather resistance
● RoHS compliant
● Continuous Operating Temperature: -55°C~110°C
● Shrink Temperature: 120°C
● Standard colors: Black
Technical Performance
|
Test Properties |
Test Method |
Typical Data |
|
Tensile Strength |
≥14MPa |
ASTM D 412 |
|
Elongation at break |
≥400% |
ASTM D 412 |
|
Density |
1.05g/cm3 |
ASTM D 792 |
|
Elongation after heat ageing |
≥300% |
ASTM D 412 |
|
dielectric strength |
≥15kV/mm |
IEC 60243 |
|
Volume Resistivity |
≥1014Ω .cm |
IEC 60093 |
Structure
Dimensions
|
Size(mm) |
As Supplied ID(mm) |
Length (±10%) |
Length of Adhesive (±10%) |
Size after shrink (±10%) |
|
|
ID(mm) |
Wall thickness W (±10%) |
||||
|
Standard Type |
|||||
|
Φ12/4 |
≥12.0 |
40 |
15 |
≤4.0 |
2.6 |
|
Φ14/5 |
≥14.0 |
45 |
18 |
≤5.0 |
2.2 |
|
Φ20/6 |
≥20.0 |
55 |
25 |
≤6.0 |
2.8 |
|
Φ25/8.5 |
≥25.0 |
68 |
30 |
≤8.5 |
2.8 |
|
Φ35/16 |
≥35.0 |
83 |
35 |
≤16.0 |
3.3 |
|
Φ40/15 |
≥40.0 |
90 |
40 |
≤16.0 |
3.3 |
|
Φ55/26 |
≥55.0 |
103 |
50 |
≤26.0 |
3.5 |
|
Φ75/36 |
≥75.0 |
120 |
55 |
≤36.0 |
4.0 |
|
Φ100/52 |
≥100 |
140 |
70 |
≤52.0 |
4.0 |
|
Φ120/60 |
≥120 |
150 |
70 |
≤60.0 |
4.0 |
|
Φ145/60 |
≥145 |
150 |
70 |
≤60.0 |
4.0 |
|
Φ160/82 |
≥160 |
150 |
70 |
≤82.0 |
4.2 |
|
Φ200/90 |
≥200 |
160 |
70 |
≤90.0 |
4.2 |
|
Standard Type |
|||||
|
Φ14/5 |
≥14.0 |
55 |
30 |
≤5.0 |
2.2 |
|
Φ42/15 |
≥42.0 |
110 |
40 |
≤15.0 |
3.3 |
|
Φ55/23 |
≥55.0 |
140 |
70 |
≤23.0 |
3.8 |
|
Φ62/23 |
≥62.0 |
140 |
70 |
≤23.0 |
3.8 |
|
Φ75/32 |
≥75.0 |
150 |
70 |
≤32.0 |
4.0 |
|
Φ75/36 |
≥75.0 |
170 |
70 |
≤36.0 |
4.2 |
|
Φ105/45 |
≥105 |
150 |
65 |
≤45.0 |
4.0 |
