Flame Retardant PVC tube
- 7 NS-PVC105
- Flammability：VW-1
- Operating temperature：-30℃～105℃
- Standard color：10 standard colors available on request
- Detailed

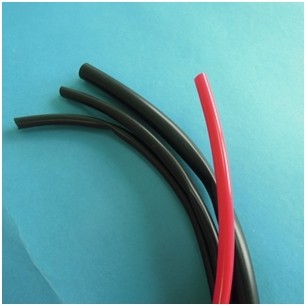

Flame Retardant PVC tube
Description
Flame retardant PVC tube boast excellent electrical and mechanical properties and find broad applications mainly in wire harness insulation and protection purposes in household appliances, automobiles, motorbikes.
Features
Flammability: VW-1
Operating temperature：-30℃～105℃
Standard color：10 standard colors available on request
Technical Data
Property
Typical Data
Tensile
strength（MPa）
≥16
Elongation
at break（%）
≥150
Max.
TS Change after heat ageing（%）
±20
Max.
Elongation change after heat ageing（%）
±20
20℃ Volume resistivity(Ω.m)
≥1012
Brittle
temperature(℃)
-15
Sizes
● ID：Φ3.0mm～Φ30.0mm
● Wall thickness：0.3mm～2.0mm
