Flame Retardant Heavy Wall Adhesive-lined Heat Shrink Tubing
- HBDJ-125G (3.5X)
- Min shrink temperature: 70℃
- Min. full recovery temperature: 125℃
- Continuous operating temperature: -45℃~125℃
- Shrink ratio: 3.5:1
- flame retardant outer layer,environment friendly.
- RoHS compliant.
- Standard color: black,more colors are available upon request
- Detailed
Flame Retardant Heavy Wall Adhesive-lined Heat Shrink Tubing
Description
Flame Retardant Heavy Wall Adhesive-lined Heat Shrink Tubing is a polyolefin tubeextruded with a layer of hot melt adhesive as the inner layer. It has excellentinsulation, mechanical abrasion resistance, impact resistance performance andgood sealing performance against water and moisture.This product isfound in many applications esp. flame retardance demanding conditions likeinsulation and protection for high voltage cable middle connections,terminations and busbar as well as different kinds of pipelines for itsexcellent corrosion resistance, abrasion resistance.
Features
Min shrink temperature: 70℃
Min. full recovery temperature: 125℃
Continuous operating temperature: -45℃~125℃
Shrink ratio: 3.5:1
flame retardant outer layer,environment friendly.
RoHS compliant .
Standard color: black,more colors are available upon request
Technical Performance
|
Properties |
Typical Data |
Test Method |
|
Tensile strength |
≥14MPa |
ASTM D 2671 |
|
Elongation |
≥400% |
ASTM D 2671 |
|
Tensile strength after heat ageing |
≥12MPa |
158℃ ×168h |
|
Elongation after heat ageing |
≥300% |
158℃ ×168h |
|
Longitudinal change |
0~-10% |
ASTM D 2671 |
|
Flammability |
The outer self-extinguishing 30s |
UL224 |
|
Dielectric |
≥18kV/mm |
IEC 60243 |
|
Volume resistivity |
≥1014Ω.cm |
IEC 60093 |
Hot melt adhesive
|
Property |
Typical data |
Test method/condition |
|
Softening point |
85±5℃ |
ASTM E 28 |
|
Water absorption |
<0.5% |
ASTM D 570 |
|
Peel strength(PE) |
≥120N/25mm |
ASTM D 1000 |
|
Peel strength(AI) |
≥80N/25mm |
ASTM D 1000 |

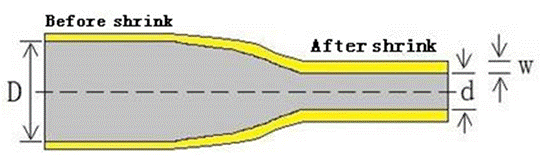

Dimensions
|
Size(mm) |
As supplied D(mm) |
Recovered(mm) |
Standard package |
|
|
Internal diameter d |
Wall thickness w |
(m/pcs) |
||
|
Φ8.0/2.0 |
≥8.0 |
≤2.0 |
≥2.0 |
1.00～1.50 |
|
Φ9.0/3.0 |
≥9.0 |
≤3.0 |
≥2.0 |
1.00～1.50 |
|
Φ13.0/4.0 |
≥13.0 |
≤4.0 |
≥2.5 |
1.00～1.50 |
|
Φ16.0/5.0 |
≥16.0 |
≤5.0 |
≥2.5 |
1.00～1.50 |
|
Φ19.0/5.0 |
≥19.0 |
≤5.0 |
≥2.5 |
1.00～1.50 |
|
Φ22.0/6.0 |
≥22.0 |
≤6.0 |
≥2.7 |
1.00～1.50 |
|
Φ25.0/6.0 |
≥25.0 |
≤6.0 |
≥2.7 |
1.00～1.50 |
|
Φ28.0/6.0 |
≥28.0 |
≤6.0 |
≥2.7 |
1.00～1.50 |
|
Φ33.0/8.0 |
≥33.0 |
≤8.0 |
≥3.2 |
1.00～1.50 |
|
Φ35.0/8.0 |
≥35.0 |
≤8.0 |
≥3.2 |
1.00～1.50 |
|
Φ40.0/12.0 |
≥40.0 |
≤12.0 |
≥4.1 |
1.00～1.50 |
|
Φ45.0/12.0 |
≥40.0 |
≤12.0 |
≥4.1 |
1.00～1.50 |
|
Φ55.0/16.0 |
≥55.0 |
≤16.0 |
≥4.1 |
1.00～1.50 |
|
Φ65.0/19.0 |
≥65.0 |
≤19.0 |
≥4.1 |
1.00～1.50 |
|
Φ75.0/22.0 |
≥75.0 |
≤22.0 |
≥4.1 |
1.00～1.50 |
|
Φ85.0/25.0 |
≥85.0 |
≤25.0 |
≥4.1 |
1.00～1.50 |
|
Φ95.0/30.0 |
≥95.0 |
≤30.0 |
≥4.3 |
1.00～1.50 |
|
Φ105.0/30.0 |
≥105.0 |
≤30.0 |
≥4.3 |
1.00～1.50 |
|
Φ115.0/34.0 |
≥115.0 |
≤34.0 |
≥4.3 |
1.00～1.50 |
|
Φ130.0/36.0 |
≥130.0 |
≤36.0 |
≥4.3 |
1.00～1.50 |
|
Φ140.0/42.0 |
≥140.0 |
≤42.0 |
≥4.3 |
1.00～1.50 |
|
Φ160.0/50.0 |
≥160.0 |
≤50.0 |
≥4.3 |
1.00～1.50 |
|
Φ180.0/50.0 |
≥180.0 |
≤50.0 |
≥4.3 |
1.00～1.50 |
|
Φ200.0/60.0 |
≥200.0 |
≤60.0 |
≥4.3 |
1.00～1.50 |
|
Φ235.0/65.0 |
≥235.0 |
≤65.0 |
≥4.5 |
1.00～1.50 |
|
Φ265.0/75.0 |
≥265.0 |
≤75.0 |
≥4.5 |
1.00～1.50 |
|
Φ300.0/85.0 |
≥300.0 |
≤85.0 |
≥4.5 |
1.00～1.50 |
|
Φ350.0/100.0 |
≥350.0 |
≤100.0 |
≥4.5 |
1.00～1.50 |
Note: Non-standard dimensions and package are available on request
