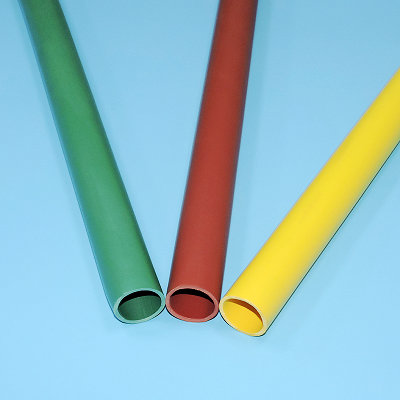

Low Voltage Heat Shrink Busbar Sleeve
- MPRS-LV (up to 1KV)
- Shrink ratio: 2:1
- Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
- Min. shrink temperature: ≥84 °C
- Min. full recovery temperature: ≥120 °C
- Continuous operating temperature: -55～125 °C
- RoHS compliant
- Standard Package: Black, White, Red ,Yellow, Green ,Blue. More colors are available upon request.
- Detailed
Low Voltage Heat shrink busbar sleeve
Description
Features
● Shrink ratio: 2:1
● Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
● Min. shrink temperature: ≥84 °C
● Min. full recovery temperature: ≥120 °C
● Continuous operating temperature: -55～125 °C
● RoHS compliant
● Standard Package: Black, White, Red ,Yellow, Green ,Blue. More colors are available upon request.
Technical Data
|
Property |
Typical Data |
Test Method |
|
Tensile strength |
≥10.4MPa |
ASTM D 2671 |
|
Elongation at break |
≥200% |
ASTM D 2671 |
|
Tensile strength after heat ageing |
≥7.3MPa |
158℃×168h |
|
Elongation after heat ageing |
≥100% |
158℃×168h |
|
Longitudinal change |
-5%～+5% |
ASTM D 2671 |
|
Flammability(Oxygen index) |
VW-1 |
ASTM D 2671 C |
|
Heat Shock |
No Tracks |
250℃×4h |
|
Dielectric Strength |
≥15kV/mm |
ASTM D 149 |
|
Dielectric Strength |
≥1014Ω.cm |
IEC 60093 |

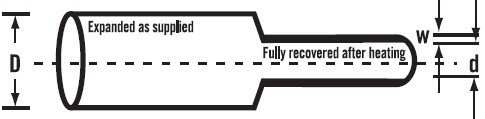

Structure
Dimensions(2:1)
|
Size（mm） |
As supplied D(mm) |
After full recovered (mm) |
Standard Package (M/Roll) |
|
|
Diameter d |
Wall thickness w |
|||
|
Φ30.0/15.0 |
31.5±1.0 |
≤15.0 |
1.00±0.15 |
50 |
|
Φ35.0/17.5 |
36.5±1.0 |
≤17.5 |
1.00±0.15 |
50 |
|
Φ40.0/20.0 |
41.5±1.0 |
≤20.0 |
1.00±0.15 |
50 |
|
Φ50.0/25.0 |
≥50 |
≤25.0 |
1.10±0.15 |
25 |
|
Φ60.0/30.0 |
≥60 |
≤30.0 |
1.20±0.15 |
25 |
|
Φ70.0/35.0 |
≥70 |
≤35.0 |
1.30±0.15 |
25 |
|
Φ80.0/40.0 |
≥80 |
≤40.0 |
1.30±0.20 |
25 |
|
Φ90.0/45.0 |
≥90 |
≤45.0 |
1.30±0.20 |
25 |
|
Φ100/50.0 |
≥100 |
≤50.0 |
1.30±0.20 |
25 |
|
Φ120/60.0 |
≥120 |
≤60.0 |
1.30±0.20 |
25 |
|
Φ150/75.0 |
≥150 |
≤75.0 |
1.30±0.20 |
25 |
|
Φ180/90.0 |
≥180 |
≤90.0 |
1.30±0.20 |
25 |
|
Φ210/105.0 |
≥210 |
≤105.0 |
1.30±0.30 |
25 |
|
Φ230/115.0 |
≥230 |
≤115.0 |
1.30±0.30 |
25 |
|
Φ250/125.0 |
≥250 |
≤125.0 |
1.30±0.30 |
25 |
|
Φ300/150.0 |
≥300 |
≤150.0 |
1.30±0.30 |
25 |
Other: Other cut lengths are
available, please contact our sales department.
