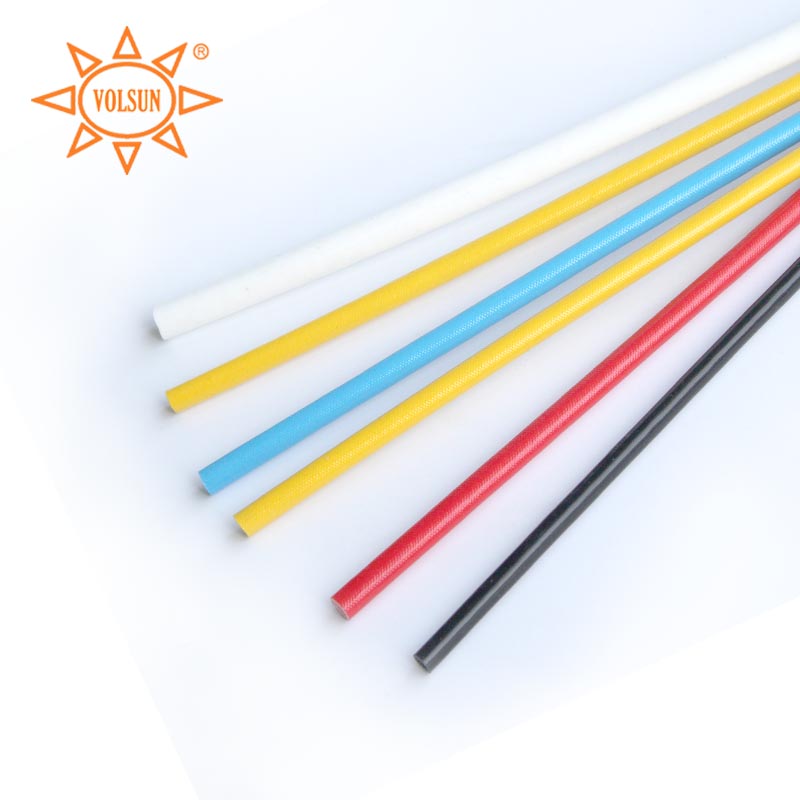

NS-GF200RES Silicone Resin Fiberglass Sleeve
- NS-GF200RES
- Flame Retardant, Environmental friendly
- Operating temperature：-40°C～200 °C
- RoHS compliant
- Standard color：White, other colors on quest
- Detailed
NS-GF200RES
Silicone Resin Fiberglass Sleeve
Description
Silicone resin fiberglass sleeve, by alkali - free glass fiber woven into a tube after coated with silicone resin, and then by high temperature treatment. It has good dielectric property, good softness and temperature resistance. Widely used in motors, household appliances, electrical equipment, electronic devices and cluster wire hardness insulation.
Features
Flame Retardant, Environmental friendly
Operating temperature：-40°C～200 °C
RoHS compliant
Standard color：White, other colors on quest
Technical Performance
|
Type |
Breakdown voltage(V) |
Volume resistivity |
Temperature resistance |
||
|
|
|
||||
|
Average |
Volume resistivity(Ω cm) |
(Ω.cm) |
|||
|
1.5KV |
1500 |
1000 |
1011 |
|
-40℃~200℃ |
|
2.5KV |
2500 |
1800 |
|||
Structure
Dimensions
|
|
ID(mm) |
|
Wall Thickness(mm) w(mm) |
Packaging (Roll/M) |
|
|
Size |
Tolerance |
1.5KV |
|
2.5KV |
|
|
Φ0.5 |
0～+0.20 |
0.30±0.1 |
|
0.35±0.1 |
200 |
|
Φ0.8 |
0～+0.20 |
0.30±0.1 |
|
0.35±0.1 |
200 |
|
Φ1.0 |
0～+0.20 |
0.30±0.1 |
|
0.35±0.1 |
200 |
|
Φ1.5 |
0～+0.25 |
0.35±0.1 |
|
0.40±0.1 |
200 |
|
Φ2.0 |
0～+0.25 |
0.35±0.1 |
|
0.40±0.1 |
100 |
|
Φ2.5 |
0～+0.25 |
0.35±0.1 |
|
0.40±0.1 |
100 |
|
Φ3.0 |
0～+0.25 |
0.35±0.1 |
|
0.40±0.1 |
100 |
|
Φ3.5 |
0～+0.35 |
0.40±0.1 |
|
0.45±0.1 |
100 |
|
Φ4.0 |
0～+0.35 |
0.40±0.1 |
|
0.45±0.1 |
100 |
|
Φ4.5 |
0～+0.35 |
0.40±0.1 |
|
0.45±0.1 |
100 |
|
Φ5.0 |
0～+0.35 |
0.40±0.1 |
|
0.45±0.1 |
100 |
|
Φ5.5 |
0～+0.40 |
0.45±0.1 |
|
0.50±0.1 |
100 |
|
Φ6.0 |
0～+0.40 |
0.45±0.1 |
|
0.50±0.1 |
100 |
|
Φ7.0 |
0～+0.50 |
0.45±0.1 |
|
0.50±0.1 |
100 |
|
Φ8.0 |
0～+0.50 |
0.45±0.1 |
|
0.50±0.1 |
50 |
|
Φ9.0 |
0～+0.50 |
0.45±0.1 |
|
0.50±0.1 |
50 |
|
Φ10.0 |
0～+0.70 |
0.50±0.15 |
|
0.55±0.15 |
50 |
|
Φ11.0 |
0～+0.70 |
0.50±0.15 |
|
0.55±0.15 |
50 |
|
Φ12.0 |
0～+0.70 |
0.50±0.15 |
|
0.55±0.15 |
50 |
|
Φ13.0 |
0～+0.80 |
0.55±0.15 |
|
0.60±0.15 |
50 |
|
Φ14.0 |
0～+0.80 |
0.55±0.15 |
|
0.60±0.15 |
50 |
|
Φ15.0 |
0～+0.80 |
0.55±0.15 |
|
0.60±0.15 |
50 |
|
Φ16.0 |
0～+0.80 |
0.55±0.15 |
|
0.60±0.15 |
50 |
|
Φ17.0 |
0～+0.80 |
0.60±0.20 |
|
0.60±0.20 |
30 |
|
Φ18.0 |
0～+0.80 |
0.60±0.20 |
|
0.65±0.20 |
30 |
|
Φ19.0 |
0～+0.80 |
0.60±0.20 |
|
0.65±0.20 |
30 |
|
Φ20.0 |
0～+0.80 |
0.60±0.20 |
|
0.65±0.20 |
30 |
|
Φ22.0 |
0～+0.80 |
0.65±0.20 |
|
0.75±0.20 |
30 |
|
Φ25.0 |
0～+0.80 |
0.75±0.20 |
|
0.85±0.20 |
30 |
|
Φ30.0 |
0～+0.80 |
0.85±0.25 |
|
0.95±0.25 |
30 |
Note: Non-standard dimensions and packages also available on your request
