Heavy Wall Adhesive-lined Dual wall Tubing
- SBRS-125G (3X) HB
- Shrink ratio:3:1
- Heavy wall, flame retardant outer layer ,environmentally friendly, UV resistant
Shrink temperature:80°C ~120°C- Continuous operating temperature:-45°C ~125°C
- RoHS compliant
- Standard color: Black
- Detailed
Heavy Wall Adhesive-lined Dual wall Tubing
Description
SBRS-125G (3X)HB is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive. The inner layer of adhesive, with superior sealing capability, is also a buffer against mechanical strain. Dual wall heat shrink tubing is designed to provide superior sealing against water, corrosive gas and chemicals.
Features
Shrink ratio:3:1
Heavy wall, flame retardant outer layer ,environmentally friendly, UV resistant
Shrink temperature:80°C ~120°C
Continuous operating temperature:-45°C ~125°C
RoHS compliant
Standard color: Black
Technical Performance
|
Property |
Typical data |
Test method/condition |
|
Tensile strength |
≥14MPa |
ASTM D 2671 |
|
Elongation at break |
≥400% |
ASTM D 2671 |
|
Tensile strength after heat aging |
≥12MPa |
158℃×168h |
|
Elongation after heat aging |
≥350% |
158℃×168h |
|
Longitudinal change |
0~-10% |
ASTM D 2671 |
|
Flammability |
Self extinguishing in 30 sec. |
AMS-DTL-23053/5 |
|
Dielectric strength |
≥20kV/mm |
IEC 60243 |
|
Volume resistivity |
≥1014Ω.cm |
IEC 60093 |
Technical Performance of Adhesive
|
Property |
Typical data |
Test method/condition |
|
Softening point |
85±5℃ |
ASTM E 28 |
|
Water absorption |
<0.5% |
ASTM D 570 |
|
Peel strength(PE) |
≥120N/25mm |
ASTM D 1000 |
|
Peel strength(AI) |
≥80N/25mm |
ASTM D 1000 |

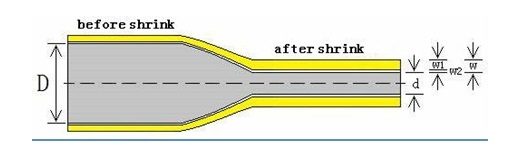

Structure
Dimensions (3:1)
|
Size |
As supplied ID(mm) D |
After full recovery(mm) |
Standard package |
|||
|
mm |
inch |
ID d |
Wall thickness w1 |
Thickness of adhesive w2 |
(m/spool) |
|
|
Φ19/6.0 |
3/4 |
19.0 |
6.0 |
3.0 |
1.35 |
1.22 |
|
Φ25/8.0 |
1 |
25.0 |
8.0 |
3.0 |
1.35 |
1.22 |
|
Φ33/8.0 |
1-1/4 |
33.0 |
8.0 |
3.0 |
1.35 |
1.22 |
|
Φ40/12 |
1-1/2 |
40.0 |
12.0 |
3.0 |
1.35 |
1.22 |
|
Φ55/16 |
2 |
55.0 |
16.0 |
3.0 |
1.35 |
1.22 |
|
Φ65/19 |
2-1/2 |
65.0 |
19.0 |
3.0 |
1.35 |
1.22 |
|
Φ75/22 |
3 |
75.0 |
22.0 |
3.0 |
1.35 |
1.22 |
|
Φ85/25 |
3-3/8 |
85.0 |
25.0 |
3.0 |
1.35 |
1.22 |
|
Φ100/33 |
4 |
100.0 |
33.0 |
3.0 |
1.35 |
1.22 |
Note：Non-standard package and dimensions are available on request.
|
|
