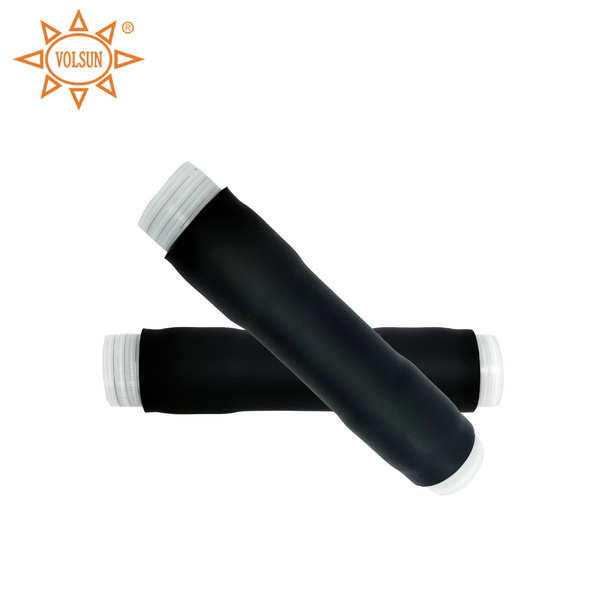

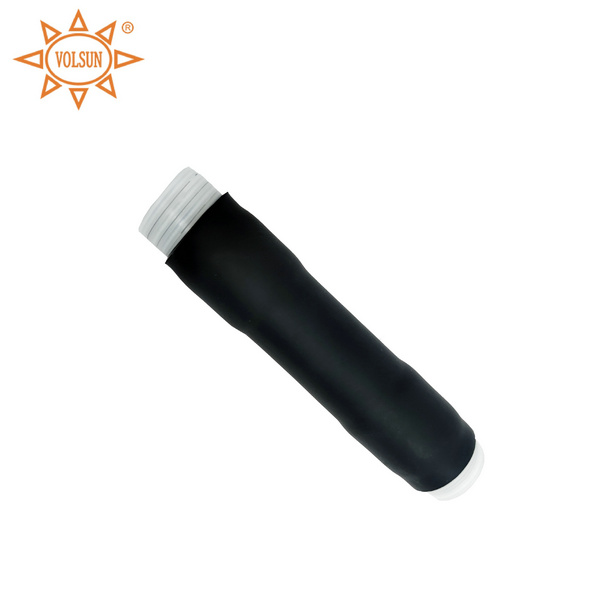

EPDM Cold Shrink Tube With Mastic for Sealing Insulation Protection
- RUBLS-EPDM
- IP68 waterproof sealing class
- Detailed
Description
Volsun EPDM cold shrink tubes with Mastic are rubber insulating sleeves that are pre-expanded over a removable support mandrel. In use, simply position and then remove the support mandrel, allowing the tube to utilize its radial force to form a tight wrap, serving to provide waterproofing and moisture-proof sealing. They are primarily used for the insulation and sealing of cable joints.
Features
-
IP68 waterproof sealing class
-
Operating temperature: -40~200°C
-
Simple installation, no heat requires
-
Seals tight, retains its resiliency and pressure even after long time
-
UV and Ozone Resistant
- Waterproof for outdoor use
|
Item |
Typical data |
Test method |
|
Tensile strength / Mpa |
≥8.0 |
GB/T 528-1998 |
|
Elongation at break % |
≥700 |
GB/T 528-1998 |
|
Shore A hardness |
45±5 |
GB/T 528-1998 |
|
Tear strength / N/MM |
≥22 |
GB/T 529-2008 |
|
Volume resistivity |
≥1012 |
ASTM D 257-07 |
|
Sealing |
IP68 |
/ |
|
Ozone resistant |
40°C + 50 PPHM + 50 hours |
DIN53509-2-2001 |
|
UV-resistance |
40°C + 1000 Hours |
IEC60068-2-5-2010 |
|
Low-temperature resistant |
-40 ℃ |
ISO 812 |
|
Flame retardant |
V-1 |
UL94 |

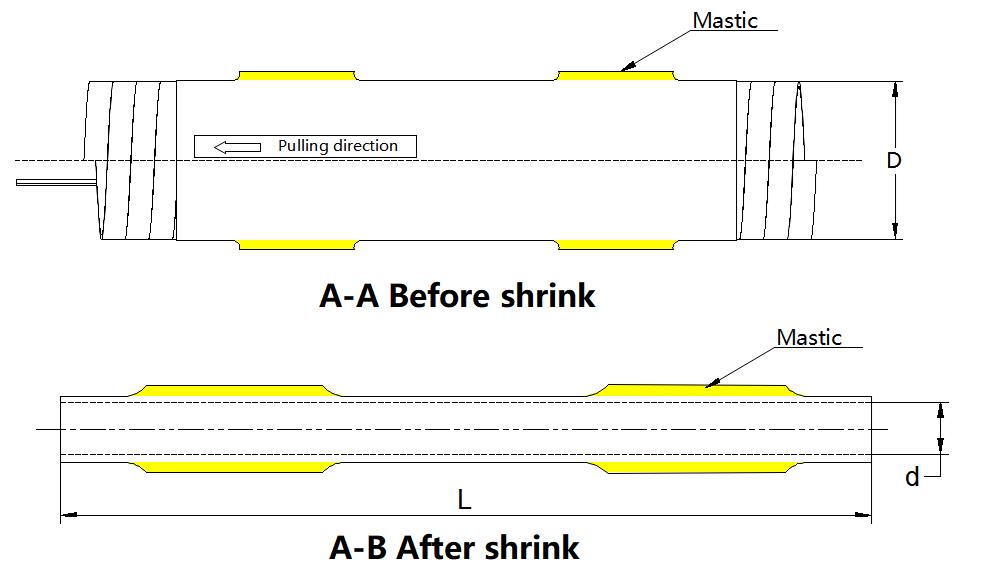

Structure
Dimensions
|
Type |
Expanding D (mm) |
Recovery(mm) |
Cover range（mm） |
|
|
d |
L |
|||
|
VS-25*150 |
≥25 |
≤8 |
150±3 |
11-20 |
