Silicone Rubber Cold Shrink Tube with Mastic

RUBLS-SM
  • Detailed

Silicone Rubber Cold Shrink Tube with Mastic

RUBLS-SM


Description

Volsun RUBLS-SM is an open-ended, water proofing mastic, cold shrink silicon rubber sleeve, which is factory pre-expanded and assembled onto a removable core. The core is removed when the tube is positioned for installation over an online connection or termination lug. The mastic at both ends provides excellent moisture-tight seals for termination and joints.



Features

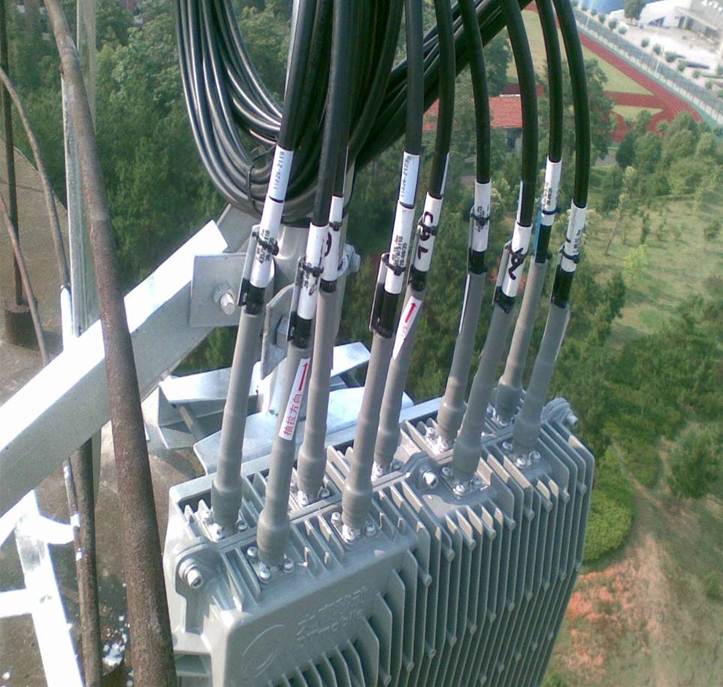

  • It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.
  • It can be used as a waterproof seal for cable television connector
  • It can be used as a waterproof seal for connecting wires and cables
  • Insulation seal for other types of connection


Technical Performance


Properties

Typical Data

Test Method

Shore Hardness

45±5

GB/T 531-2008

Tensile Strength

9.0MPa

GB/T 528-2009

Elongation at break

850%

GB/T 528-2009

Tear Strength

35kN/m

GB/T 529-2008

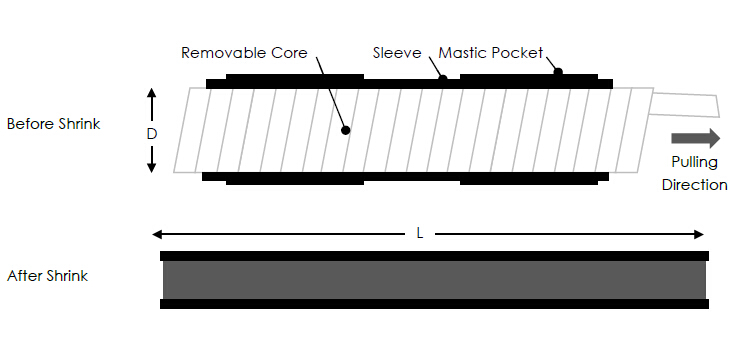

Structure


Dimensions

Size

Inner diameter (mm)

Min Cable Outer Diameter (mm)

Max Cable Outer Diameter (mm)

Recovered Length

L(mm)

VM25-4.8

Ф25

9

20

120

VM28-4.4

Ф28

11

23

110

VM35-4.8

Ф35

12

30

120

VM40-5.6

Ф40

12.7

35

140

VM40-8

Ф40

12.7

35

200

VM40-11

Ф40

12.7

35

280

Remark: Special size and package are available on request.



Application
