Black EPDM cold shrink tube for power industry
Description

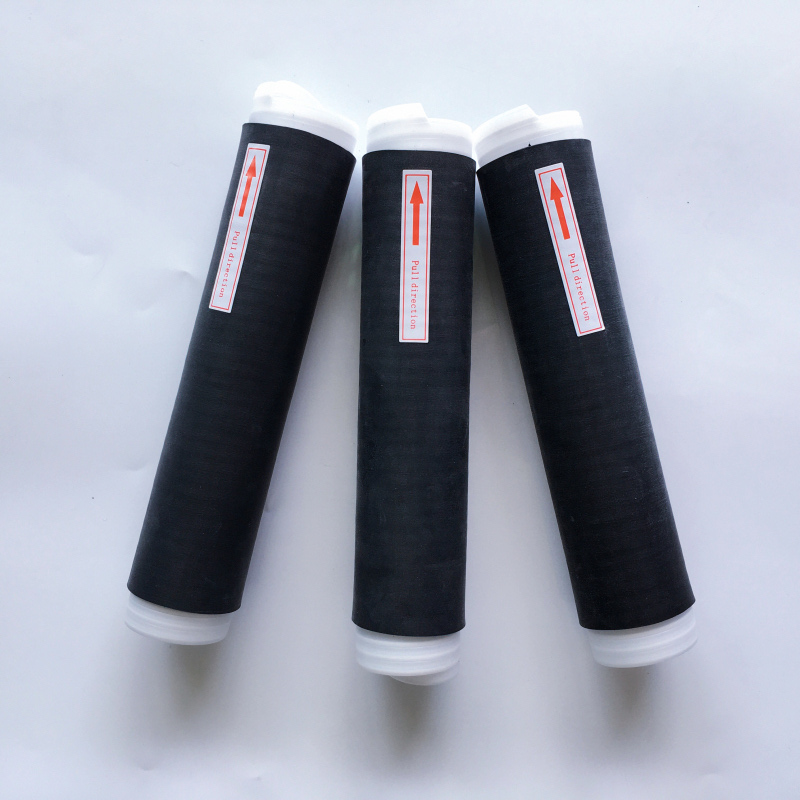

RUBLS-EPDM a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors.
Unique Advantages
1. Excellent
weather resistance, ultraviolet aging resistance and higher embrittlement
resistance than heat shrink tubing
2. More resistant to slab and prick, abrasion, acid and alkali than silicone
cold shrink tubing
3. Simultaneously expands and shrinks with workpieces without clearances, seals
tight in harsh environment
3. Stably sealing the workpieces in windy environment
4. Well suited for cable less than 1KV
5. Seals tight, retains its resiliency and pressure even after prolonged years
of ageing and exposure.
6. Simple , safe installation, requires no tools or special training. No
torches or heat work required.
7. Shrink Ratio:3.5:1
8. Sealing class IP68
Applications:
1. Primary electrical insulation for all solid dielectric (rubber and plastic)
insulated wire and cable splices rated to 1000volts
2. Meets ANSI C119.1, directly buriable or submersible or indoor, outdoor, or
overhead use
3. Physical protection and moisture sealing for high-voltage, air-insulated
connectors and lugs such as spacer cable and lug connections to bus bar
4. Insulation of secondary splices copper or aluminum conductors Relocation of
service Dig-in repairs, sheath repairs
5. Insulation of inline conductor transition connectors
6. Sealing of coax cables with Type N or 7/16 DIN connectors on wireless
communication towers
Technical Data
|
Properties |
Typical Data |
Test method |
|
HS |
49 A |
ASTM D 2240-75 |
|
Tensile Strength |
9.8 MPa |
ASTM D412-75 |
|
Elongation at break |
720% |
ASTM D412-75 |
|
Tear Strength |
27 N/ mm |
ASTM D624C-73 |
|
Dielectric Strength |
14.3kV/mm |
ASTM 149-75 |
|
Dielectric Constants |
5.0(Initial data)/5.6(90degree in the water for 7 days)) |
/ |
|
Anti-enzyme (bacteria) |
The 28 day exposure without growth |
ASTM G-21 |
|
UV Resistant |
UV irradiation for 2000 hours without aging |
ASTM G-53 |
Dimensions
|
Size |
Inner Diameter D(mm) |
Min Cable Outer diameter (mm) |
Max Cable Outer Diameter (mm) |
Recovered Length L(mm) |
|
VE18-3 |
18 |
7.8 |
14.3 |
80 |
|
VE18-6 |
18 |
7.8 |
14.3 |
152 |
|
VE18-7 |
18 |
7.8 |
14.3 |
178 |
|
VE24-8 |
20 |
2.54 |
20.9 |
203 |
|
VE25-7 |
25 |
10.1 |
20.9 |
178 |
|
VE25-8 |
25 |
10.1 |
20.9 |
203 |
|
VE25-11 |
25 |
10.1 |
20.9 |
279 |
|
VE25-12 |
25 |
10.1 |
20.9 |
305 |
|
VE28-5 |
28 |
8.0 |
22.5 |
125 |
|
VE35-6 |
35 |
13.9 |
30.1 |
152 |
|
VE35-8 |
35 |
13.9 |
30.1 |
203 |
|
VE35-9 |
35 |
13.9 |
30.1 |
229 |
|
VE35-11 |
35 |
13.9 |
30.1 |
279 |
|
VE42-6 |
42 |
16.8 |
35.1 |
152 |
|
VE42-8 |
42 |
16.8 |
35.1 |
203 |
|
VE42-10 |
42 |
16.8 |
35.1 |
254 |
|
VE42-12 |
42 |
16.8 |
35.1 |
305 |
|
VE42-16 |
42 |
16.8 |
35.1 |
406 |
|
VE42-18 |
42 |
16.8 |
35.1 |
457 |
|
VE50-8 |
50 |
13.5 |
43.7 |
203 |
|
VE58-6 |
58 |
24.0 |
49.3 |
152 |
|
VE58-7 |
58 |
24.0 |
49.3 |
178 |
|
VE58-8 |
58 |
24.0 |
49.3 |
203 |
|
VE58-10 |
58 |
24.0 |
49.3 |
254 |
|
VE58-12 |
58 |
24.0 |
49.3 |
305 |
|
VE58-18 |
58 |
24.0 |
49.3 |
457 |
|
VE58-24 |
58 |
24.0 |
49.3 |
610 |
|
VE58HP-10 |
58 |
20.5 |
51.0 |
254 |
|
VE65-10 |
65 |
23.7 |
57.5 |
254 |
|
VE77-6 |
77 |
32.2 |
67.8 |
152 |
|
VE77-7 |
77 |
32.2 |
67.8 |
178 |
|
VE77-9 |
77 |
32.2 |
67.8 |
229 |
|
VE77-12 |
77 |
32.2 |
67.8 |
305 |
|
VE77-13 |
77 |
32.2 |
67.8 |
330 |
|
VE77-14 |
77 |
32.2 |
67.8 |
355 |
|
VE77-18 |
77 |
32.2 |
67.8 |
457 |
|
VE77-22 |
77 |
32.2 |
67.8 |
550 |
|
VE77HP-13 |
77 |
27.4 |
70.0 |
330 |
|
VE105-8 |
105 |
42.6 |
93.7 |
203 |
|
VE105-9 |
105 |
42.6 |
93.7 |
229 |
|
VE105-18 |
105 |
42.6 |
93.7 |
457 |
|
VE105-20 |
105 |
42.6 |
93.7 |
508 |
|
VE120-24 |
120 |
33.0 |
114.3 |
610 |
|
VE160-24 |
160 |
60.0 |
154.0 |
620 |

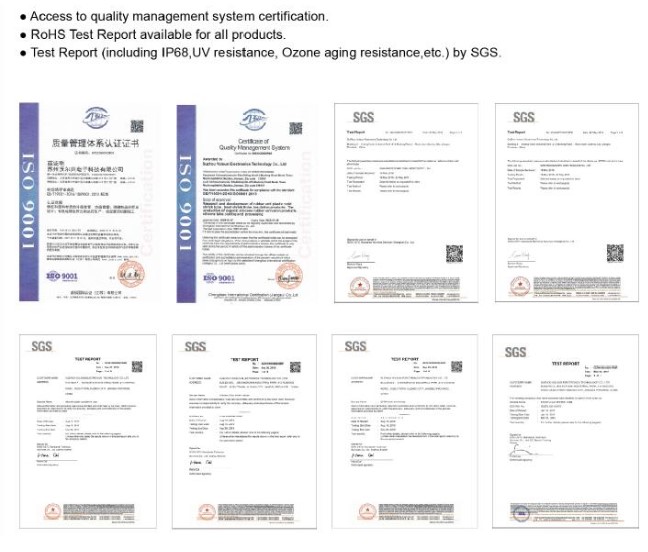

Certificates & Test Reports
