Two Supporting Cores Cold Shrink Tube

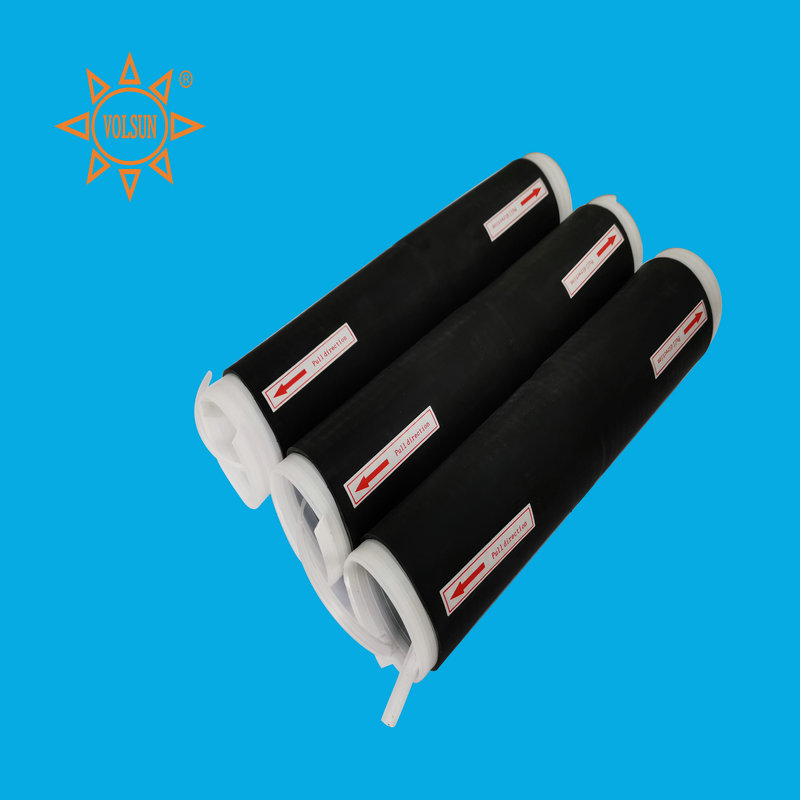

  • Two Supporting Cores Cold Shrink Tube.jpg
RUBLS-SLT
  • Detailed

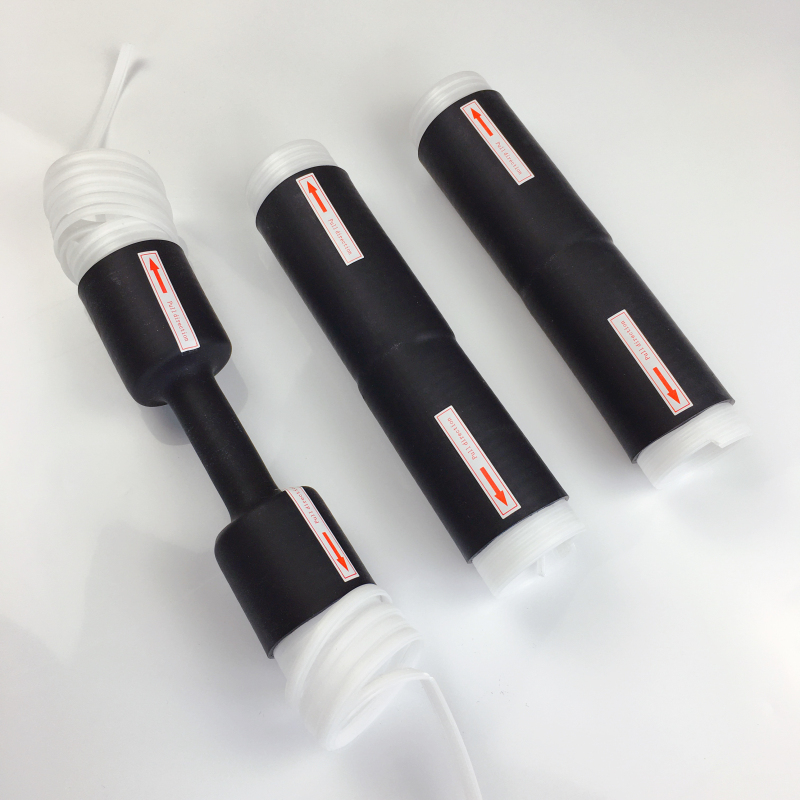

Two Supporting Cores Cold Shrink Tube

RUBLS-SLT


Description

The two pulling cores cold shrink tube is made of special raw materials. It can be positioned and then the support core can be removed. It has the advantages of large shrink ratio, excellent physical and mechanical properties, and resistance to puncture. Suitable for waterproof and moisture-proof sealing of communication and cable connection connectors, insulation and sealing of wire and cable connection, and insulation protection of other types of connectors.



Features
  •   Synchronous expansion and contraction with the workpiece in a harsh environment, no gaps, tight seals
  •   Shrink ratio is about 3-4 times, suitable for connection sealing of different diameters
  •   Strong resilience, long-lasting radial pressure, long-term moisture resistance, excellent water resistance
  •   Weather resistance, sun resistance, ozone resistance, UV resistance, salt spray corrosion resistance
  •   Unique two pulling cores structure for accurate positioning
  •   No need for heating or special tools, no need for hot melt adhesive or tape to strengthen the joint
  •   Standard color: Black

Technical Performance


Properties

Typical Data

Test Method

Shore Hardness

44±5

GB/T 531-2008

Tensile Strength

9.0MPa

GB/T 528-2009

Elongation at break

700%

GB/T 528-2009

Tear Strength

35kN/m

GB/T 529-2008

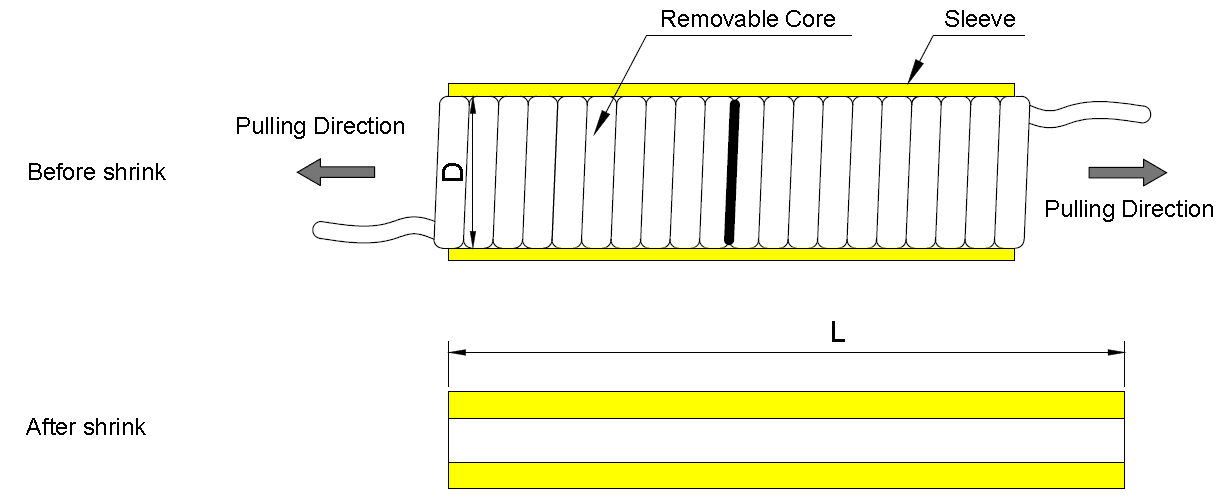

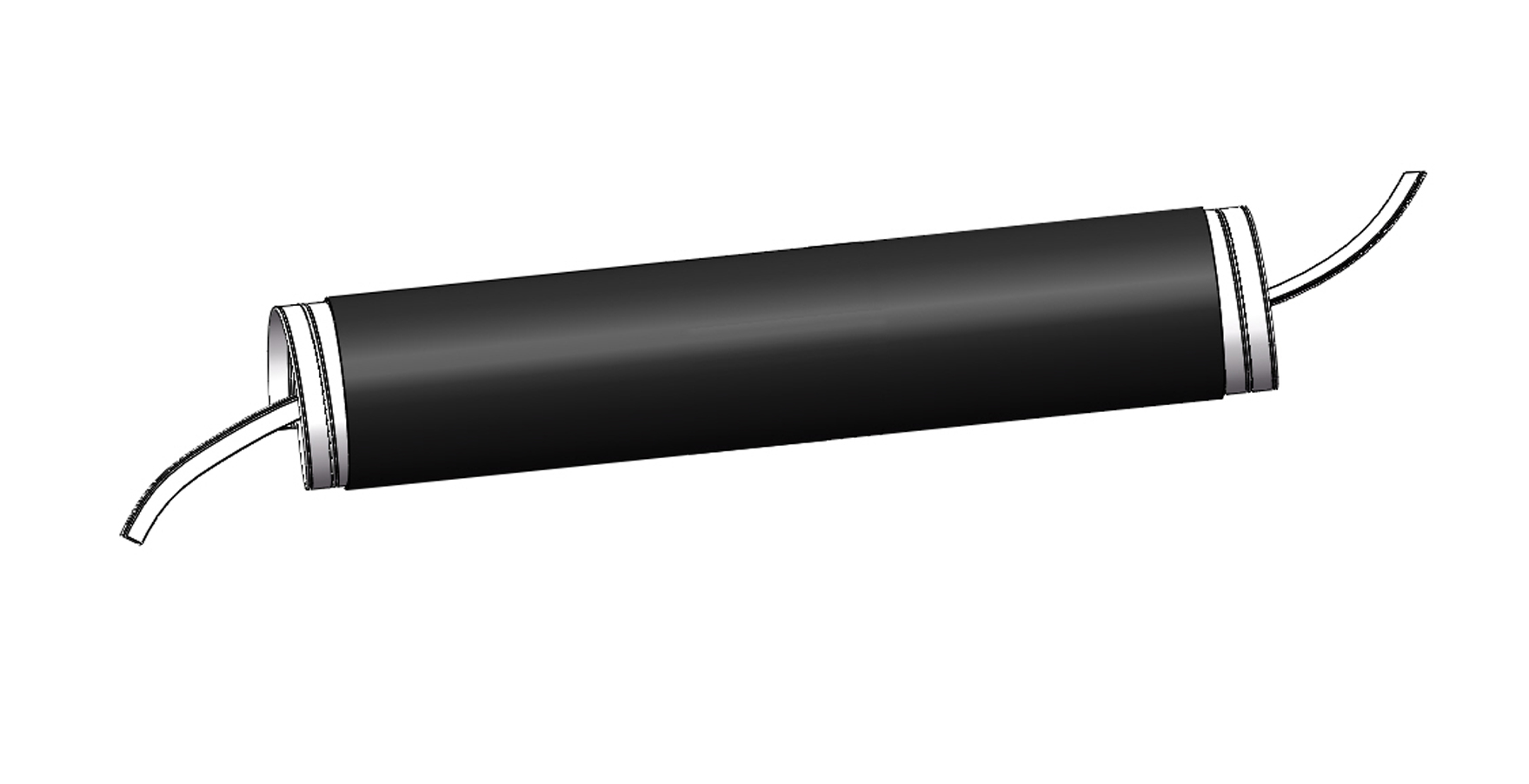

Structure

Dimensions

Size

Inner diameter (mm)

Min Cable Outer Diameter (mm)

Max Cable Outer Diameter (mm)

Recovered Length

L(mm)

VS32-2.2

Ф32

10.0

27.0

57

VS32-2.5

Ф32

10.0

27.0

65

VS32-5

Ф32

10.0

27.0

127

VS32-6

Ф32

10.0

27.0

150

VS32-7

Ф32

10.0

27.0

178

VS32-8

Ф32

10.0

27.0

203

VS32-9

Ф32

10.0

27.0

230

VS32-11

Ф32

10.0

27.0

280

VS32-12

Ф32

10.0

27.0

305

VS35-5

Ф35

12.5

30.0

127

VS35-7

Ф35

12.5

30.0

178

VS35-8

Ф35

12.5

30.0

203

VS35-9

Ф35

12.5

30.0

229

VS35-10

Ф35

12.5

30.0

254

VS35-11

Ф35

12.5

30.0

280

VS35-12

Ф35

12.5

30.0

305

VS40-5

Ф40

14.0

33.0

127

VS40-5.5

Ф40

14.0

33.0

140

VS40-6

Ф40

14.0

33.0

152

VS40-7

Ф40

14.0

33.0

180

VS40-8

Ф40

14.0

33.0

203

VS40-9

Ф40

14.0

33.0

230

VS40-10

Ф40

14.0

33.0

254

VS40-11

Ф40

14.0

33.0

280

VS40-12

Ф40

14.0

33.0

305

VS45-6

Ф45

14.0

39.0

152

VS45-7

Ф45

14.0

39.0

178

VS45-8

Ф45

14.0

39.0

203

VS45-9

Ф45

14.0

39.0

230

VS45-10

Ф45

14.0

39.0

254

VS45-11

Ф45

14.0

39.0

280

VS45-12

Ф45

14.0

39.0

305

VS53-6

Ф53

19.0

46.0

152

VS53-7

Ф53

19.0

46.0

178

VS53-8

Ф53

19.0

46.0

203

VS53-9

Ф53

19.0

46.0

230

VS53-10

Ф53

19.0

46.0

254

VS53-11

Ф53

19.0

46.0

280

VS53-12

Ф53

19.0

46.0

305


Remark: Special size and package are available on request.
