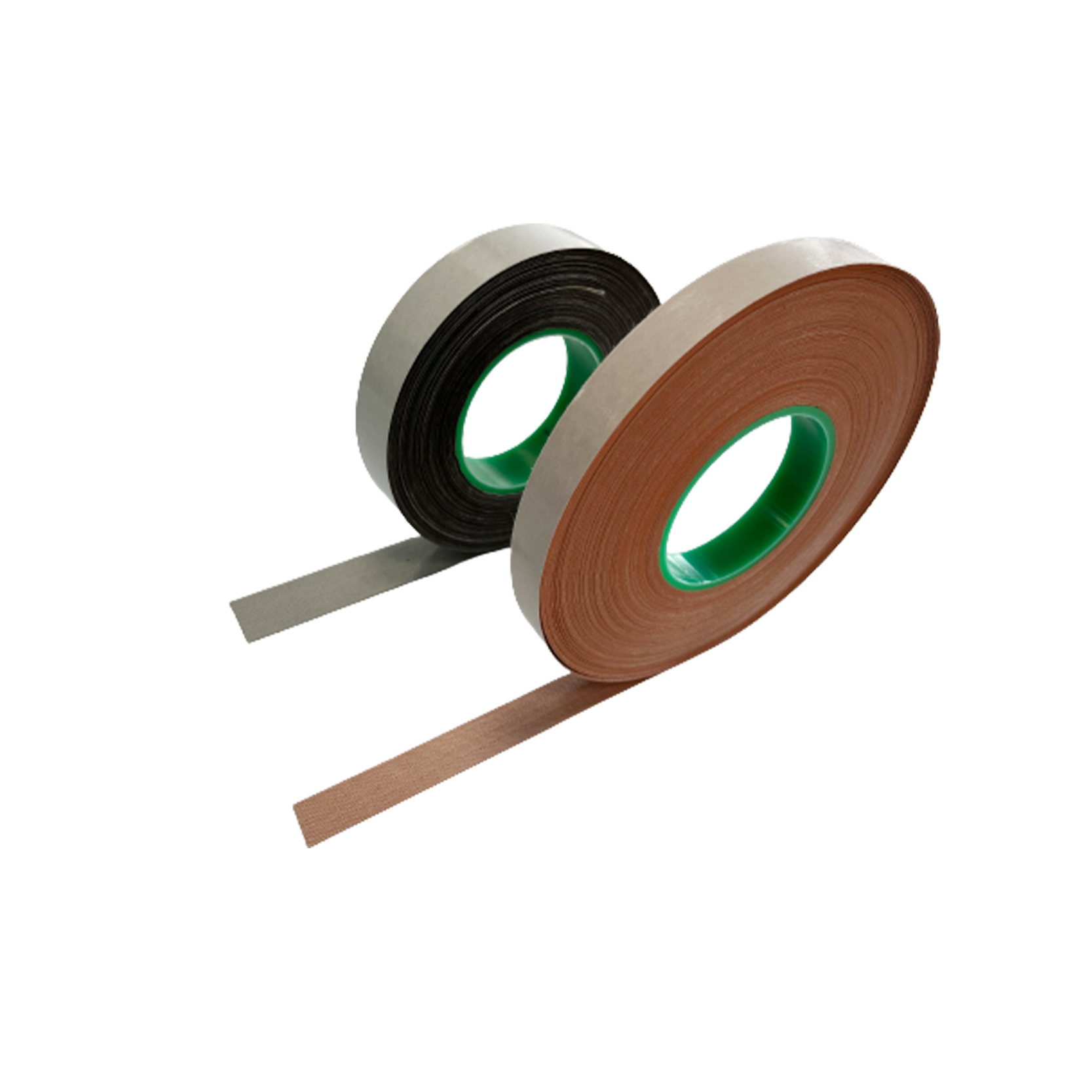

Ceramic composite high temperature insulation tape
- Detailed
High temperature insulation tape is mainly made of ceramic silicone rubber and refractory reinforcing fiber. It is a high-strength flexible composite product with good fire resistance, high temperature resistance and excellent high temperature insulation. It can resist flame ablation at 1000°C and prevent the flame from spreading to other areas. Can effectively isolate most chemical solvents, is a material specially designed for heat protection and electrical insulation protection to increase the safety of battery packs in electric vehicles and other energy storage systems.
Features
RoHS compliant
Color: White, Black, Orange
Low smoke, low flame, no smoke toxicity during combustion, excellent ozone resistance and anti-ultraviolet aging performance
Encrusted into a ceramic-like structure at high temperatures or in flames, giving it excellent electrical insulation
|
Item |
Index value |
Test Standard |
|
Density |
≤1.70g/cm3 |
GB/T 533-2008 |
|
Tensile strength |
≥15MPa |
GB/T 528-2009 |
|
Tear strength |
≥40KN/m |
GB/T 529 |
|
Breakdown strength |
≥22kV/mm |
GB/T 1695 |
|
Volume resistivity |
1.0×1013（Ω·cm） |
GB/T 1692 |
|
Insulation resistance（800℃，1min） |
＞0.3MΩ |
GB/T 31838.7 |
|
Flame retardancy |
VTM-0 |
UL94 |
|
Residue |
＞80% |
TG Analysis |
Dimension
|
Thickness（mm） |
Tolerance（mm） |
Package（M/Roll） |
|
0.25 |
±0.08 |
100 |
|
0.35 |
±0.08 |
100 |
|
0.55 |
±0.08 |
100 |
Note: Special sizes and packages are available on request.
