VS-GF3501 Thermal Conductive Silicon Liquid Gap Filler

  • Detailed

VS-GF3501 Thermal Conductive Silicon Liquid Gap Filler

Description

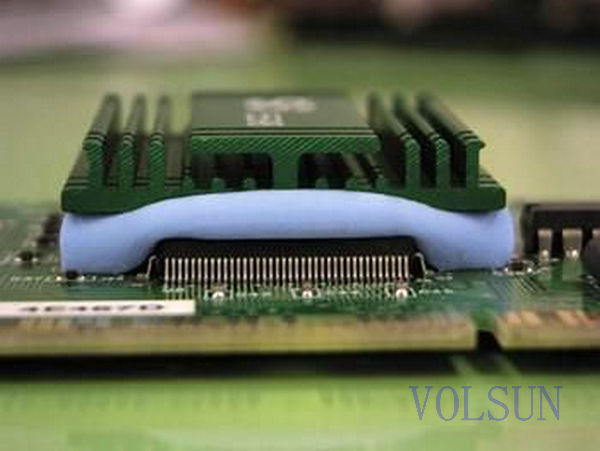

VS-GF3501 is a two-component, heat-curing silicone thermal conductive gap filler. It has good insulation and voltage resistance properties and thermal stability. It is safe and reliable to use, and has good rework ability. VS-GF3501 is used in new energy battery packs, automotive electronic control units, 5G communication base stations, power devices and heat sinks or machine casings, it can effectively remove air and achieve a good filling effect.





Features

  • Excellent surface wettability
  • Well insulation material
  • High thermal, low heat resistance
  • Continuous operating temperature-40~+200
  • Good resilience and long-term reliability
  • Comply with RoHS and REACH certification requirement
  • Complete specifications, accept customized
Technical Performance

Item

Technical Data

Test Standard Method

Mixing Ratio

1:1

/

Color(after mix)

Blue

Visual

Curing Condition

100℃·30min

/

Thermal conductivity

3.5±0.2 W/m·k

ASTM D5470

Hardness

70±10 Shore OO

ASTM D2240

Density

3.1±0.2 g/ml

ASTM D792

Tensile Strength

35 KPa

GB/T 528-2009

Elongation

10 %

GB/T 528-2009

Dielectric Strength

8 kV/mm

ASTM D149

Volume Resistivity

1.0×1014 Ω·cm

ASTM D257

Dielectric constant(1000Hz)

8.0

ASTM D150



Dimension

Size

Package

VS-GF3501Samples

50CC Two components/PC

VS-GF3501

400CC Two components/PC

Note: Special size and packaging can be customized on request



Instructions

  • Clean the surface of the object to be bonded or coated to remove rust, dust, oil, etc.
  • Unscrew the glue cap, install the static mixer, and use the manual/automatic glue gun to squeeze the glue on the surface of the cleaned object
  • After glue is completed, attach the second surface to it and apply a little pressure to fix it.
Precautions

  • The use environment should be free of large debris or other pollutants to avoid affecting the adhesion of materials and objects
  • Before the material is completely cured, avoid other objects contacting the material, which will affect the appearance and performance of the material
  • This product should not be in the mouth and eyes. If it accidentally enters the mouth and eyes, rinse with water in time or go to the hospital for medical treatment.
Storage conditions Shelf life
  • The product should keep the lid tightly closed and store in the original packaging at room temperature and away from light
  • The product shelf life is 9 months from the production date
