Volsun®VBK Adhesive-lined Heat Shrink Tube
Time: 2015-06-29 13:37:15     Copyfrom: volsun

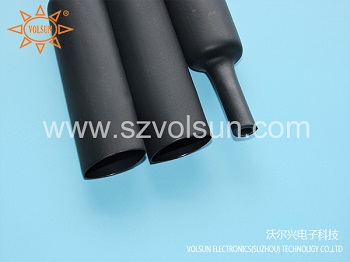

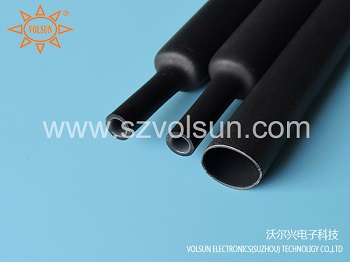

Volsun® VBK Adhesive-lined Heat Shrink Tube is semi-rigid anddesigned to provide moisture proof encapsulation of an electrical splice in an automotive environment. Especially for protecting automotive wire harness and splices.

As we know, moisture may enter a splice area directly or indirectly via a capillary action between individual wires, thus causing corrosion. But if you use our VBK Adhesive-lined Heat Shrink Tube to cover the wires, this problem will be easily solved.

Our tubing is centered over the splice area and on heating the adhesive melts and is squeezed around where the wires are crimped or welded and between the conductors, by the shrinking action of the sleeve.

The installed product provides low profile mechanical protection against flexing, abrasion and cut-through as well as electrical insulation. The jacket of VBK Adhesive-lined Heat Shrink Tube is flame-retarded, 125°C temperature resistant.

Here are some notes before purchasing:

1, VBK is divided into four types, 6/1.27, 8/1.65, 12/2.41 and 18/4.45

2, Our standard package of VBK is 1.22M per piece, other cut lengths are available, just contact our sales department earlier.

3, Standard color is black, we also can make clear color, but the jacket of clear VBK is non-flame retardant.

Excellent mechanical properties, high performance adhesive, high shrink ratio and RoHS compliant etc…That is our VBK Adhesive-lined Heat Shrink Tube!

Any interests please contact our Overseas Sales Manager.
