Why Your Electric Motor Needs a Shaft Grounding Ring: The Ultimate Shield Against Bearing Failure
Time: 2026-01-23 15:33:56 Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.
In the world of modern industrial automation, Variable Frequency Drives (VFDs) have become the gold standard for energy efficiency and precision control. However, these advanced systems hide a silent "killer" that can destroy your motor bearings from the inside out: Shaft Current.
If you are dealing with unexplained motor noise, premature bearing failure, or frequent downtime, the solution isn't just better grease—it’s a Shaft Grounding Ring (Conductive Ring).
1. The Invisible Enemy: Understanding Shaft Current
To solve a problem, we must first understand its source. According to recent technical studies, shaft current typically stems from three main sources:
- Capacitive Bearing Current: VFDs use Pulse Width Modulation (PWM) to control motors. This creates induced voltages that "leap" across the motor shaft through parasitic capacitance, eventually discharging through the bearings.
- High-Frequency Circulating Current: Often found in high-power motors (above 75 kW / 100 HP), these currents are driven by high-frequency magnetic flux. As motor power increases, the risk of these destructive currents grows exponentially.
- 50/60Hz Circuit Current: Even standard power sources can cause issues due to magnetic asymmetries within large equipment designs.
Without a dedicated path to ground, these currents use your bearings as a bridge, causing Electrical Discharge Machining (EDM). This leads to pitting, "fluting" (grooving), and ultimately, catastrophic bearing failure.
2. Why Choose a Shaft Grounding Ring Over Other Solutions?
When it comes to protecting your motor, there are several methods available, but not all are created equal. Let’s look at how the Shaft Grounding Ring stacks up against the competition:
Solution
Working Principle
Performance Analysis
Electronic Controllers
Modulates input current to the motor.
Reduces current to an extent but doesn't
eliminate the grounding path issue.
Insulated Bearings
Physically isolates the shaft from the
motor housing.
Expensive (costs rise with voltage); can lead to electrical
corrosion at the load end.
Shaft Grounding Ring
Uses conductive fibers to provide a
low-resistance path to ground.
High stability, superior conductivity, and
low cost.
While
insulated bearings simply "block" the path, a grounding ring
"channels" the electricity safely away. It is the most cost-effective
and reliable insurance policy for your motor’s longevity.
3. The
Core Benefits of Our Conductive Grounding Rings

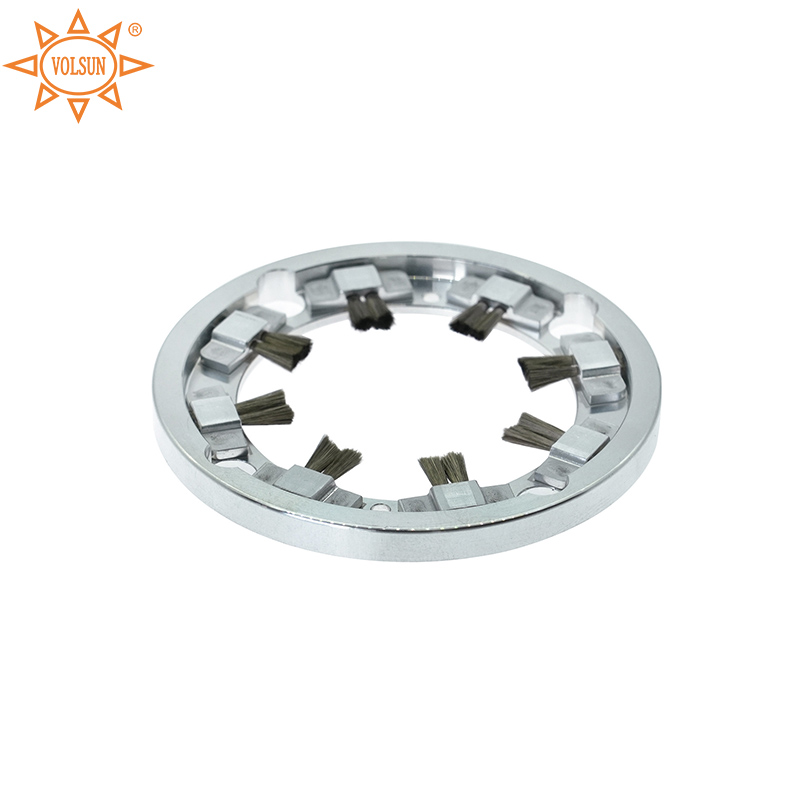

Our
shaft grounding rings are engineered with high-density conductive micro-fibers
that act as a "lightning rod" for your motor shaft. Here is why
industry leaders are making the switch:
Unlike traditional carbon brushes that wear down quickly and require constant maintenance, our conductive rings offer long-term stability. They maintain contact with the shaft even at high RPMs, ensuring the current never builds up enough to damage the bearings.
- Cost-Effective Maintenance
Replacing a motor bearing is expensive; replacing an entire motor is a disaster. Shaft grounding rings are a "set and forget" solution that costs a fraction of the price of ceramic or insulated bearings, while providing better overall protection for the entire drive train.
- Seamless Integration
Whether you are retrofitting an old motor or specifying a new installation, these rings are easy to install. They are compact, durable, and designed to thrive in harsh industrial environments.
4. Protect Your Investment Today
In an era where "uptime" is the most important metric, you cannot afford to let stray electrical currents eat away at your profit margins. Shaft Grounding Rings represent the perfect balance of advanced engineering and economic common sense.
By diverting harmful voltages away from your bearings and directly to the ground, you extend the life of your equipment, reduce maintenance costs, and ensure your operations run smoothly 24/7.
Don’t wait for the noise to start. Secure your motor's future today.
