Silicone Rubber Heat Shrink Tube

  • Acid and alkali resistant, corona resistant, prevent mildew
  • Flame retardant, flexible
  • Shrink Temperature:150℃~175℃
  • Continuous Operating Temperature:-55°C~200°C
  • Shrink Ratio:1.7:1
  • Environmental standards:RoHS
  • Standard colors: Black, grey, red, others can custom made
    • Detailed

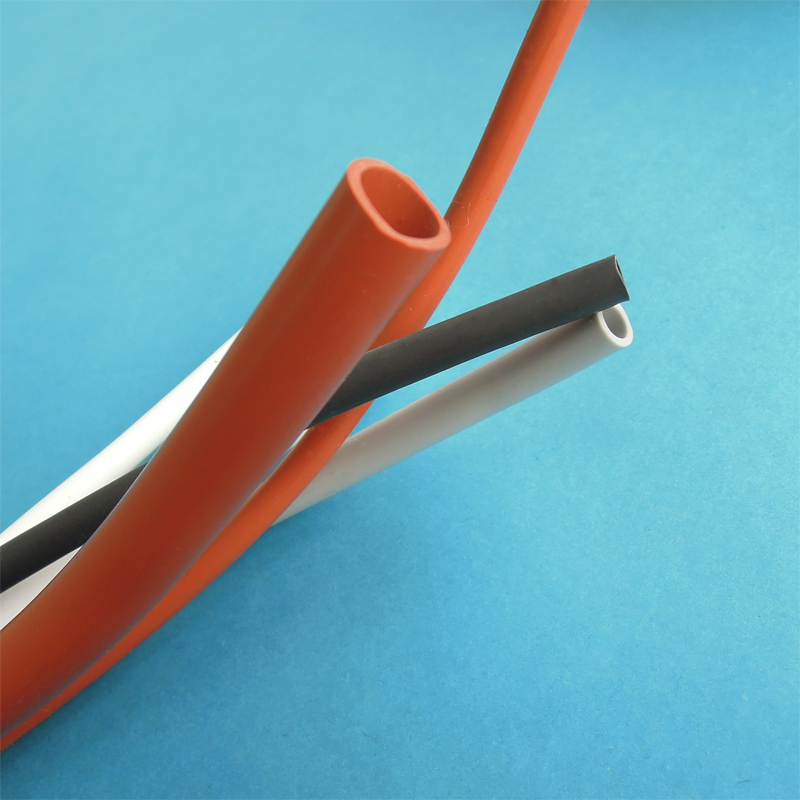

    Silicone Rubber Heat Shrink Tube





    Description



    TZRS-SIL200(1.7X) is made of silicone rubber and polymer elastomer modified by radiation can be used at high temperature for a long time, acid and alkali resistance, solvent resistance, resistance to external mechanical damage. It can be used for military vehicles, high-speed train, ship equipment or electrical appliances industries such as cable terminal, separating junction protection.





    Features



    ● Acid and alkali resistant, corona resistant, prevent mildew

    Flame retardant, flexible

    Shrink Temperature150175

    Continuous Operating Temperature-55°C~200°C

    Shrink Ratio1.7:1

    Environmental standardsRoHS

    Standard colors: Black, grey, red, others can custom made

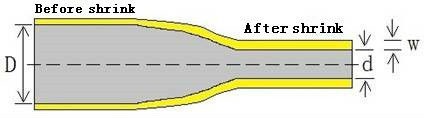

    Structure







    Techinical Performance





    Properties

    Typical Data

    Test Methods

    Tensile Strength

    ≥6.5MPa

    ASTM D 638

    Elongation

    ≥300%

    ASTM D 638

    Tear Strength

    ≥30kN/m

    ASTM D 624

    Heat Shock

    No cracksno dripping

    300×4h

    Proportion

    1.1

    ASTM D 792

    Volume Resistance

    ≥2*1013Ω.cm

    ASTM D 876





    Dimensions



    Size(mm)

    Inner Diameter

    (mm)

    After full recovery(mm)

    Inner Diameter

    Thickness(A)

    Thickness(B)

    φ1.0

    ≥1.0

    ≤0.60

    0.70±0.10

    1.10±0.10

    φ1.5

    ≥1.5

    ≤0.80

    0.70±0.10

    1.10±0.10

    φ2.0

    ≥2.0

    ≤1.20

    0.70±0.10

    1.10±0.10

    φ2.5

    ≥2.5

    ≤1.50

    0.70±0.10

    1.10±0.10

    φ3.0

    ≥3.0

    ≤1.80

    0.70±0.10

    1.10±0.10

    φ3.5

    ≥3.5

    ≤2.00

    0.70±0.10

    1.10±0.10

    φ4.0

    ≥4.0

    ≤2.50

    0.70±0.10

    1.10±0.10

    φ4.5

    ≥4.5

    ≤2.80

    0.70±0.10

    1.10±0.10

    φ5.0

    ≥5.0

    ≤3.00

    0.70±0.10

    1.10±0.10

    φ6.0

    ≥6.0

    ≤3.80

    0.70±0.10

    1.10±0.10

    φ7.0

    ≥7.0

    ≤4.00

    0.70±0.10

    1.10±0.10

    φ8.0

    ≥8.0

    ≤4.80

    0.70±0.10

    1.10±0.10

    φ9.0

    ≥9.0

    ≤5.00

    0.70±0.10

    1.10±0.10

    φ10

    ≥10.0

    ≤6.50

    1.70±0.10

    2.50±0.10

    φ12

    ≥12.0

    ≤7.00

    1.70±0.10

    2.50±0.10

    φ15

    ≥15.0

    ≤9.00

    1.70±0.10

    2.50±0.10

    φ20

    ≥20.0

    ≤13.0

    1.70±0.10

    2.50±0.10

    φ25

    ≥25.0

    ≤15.0

    1.70±0.10

    2.50±0.10

    φ30

    ≥30.0

    ≤18.0

    1.70±0.10

    2.50±0.10

    φ35

    ≥35.0

    ≤20.0

    1.70±0.10

    2.50±0.10

    φ40

    ≥38.0

    ≤25.0

    1.70±0.10

    2.50±0.10

    φ50

    ≥47.0

    ≤30.0

    1.70±0.10

    2.50±0.10

    φ60

    ≥57.0

    ≤38.0

    2.50±0.10

    3.20±0.10

    φ70

    ≥67.0

    ≤55.0

    2.50±0.10

    3.20±0.10

    φ80

    ≥77.0

    ≤48.0

    2.50±0.10

    3.20±0.10

    φ90

    ≥87.0

    ≤52.0

    2.50±0.10

    3.20±0.10

    φ110

    ≥107.0

    ≤68.0

    2.50±0.10

    3.20±0.10





    NoteNon-standard sizes and package are available on your request.
