Halogen-free Flame Retardant Heat Shrinkable Tubing
- DBRS-125H (2X) (3X)
- Meets UL 224, CAN / CSA C22.2 NO198.1 -99
- Heat shrink ratio : 2:1,3:1
- Halogen-free , low-smoke generations , non-toxic , flexible , fire retardant
- Min. shrink temperature :84 ℃
- Min. full recovery temperature :120 ℃
- Continuous operating temperature : -55 °C ~ 125°C
- Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material

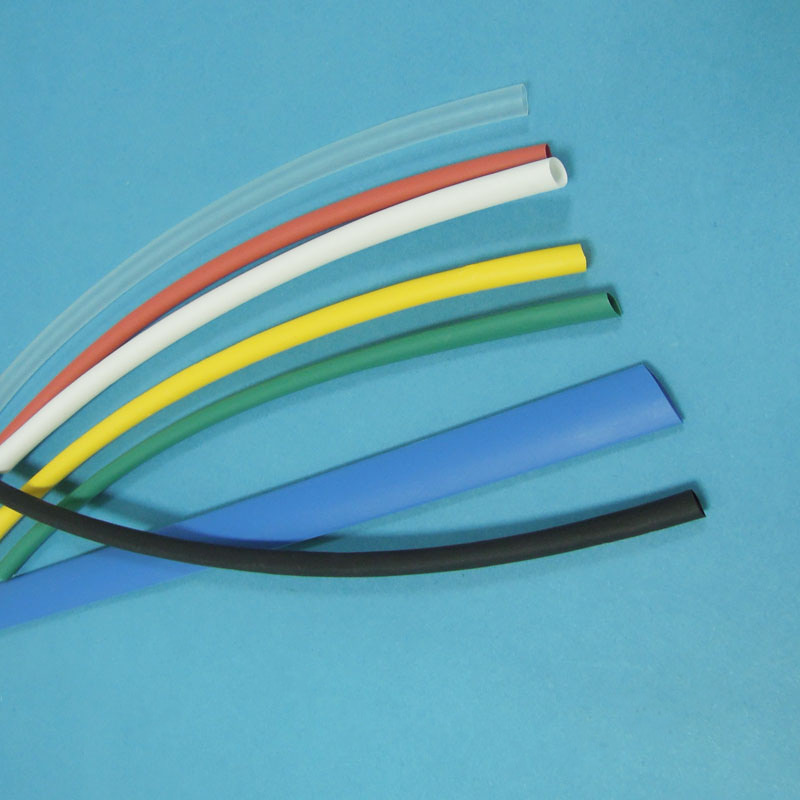

- Standard colors: black, white, red , yellow , Green, blue and other four international standard colors. More colors are available upon request.
- Detailed
Halogen-free Flame Retardant Heat Shrinkable Tubing
Description
Halogen-freefire retardant heat shrinkable tubing, made of radiation cross-linkedpolyolefin, is designed with excellent physicochemical and electricalproperties. Typical applications include insulation of electrical connectionsor wire splices, rust and corrosion resistance for the soldered joints orconnections, mechanical and wiring harness protection and insulation inelectronics, communications, automotive, marine, aircraft manufacturing andother fields.
Features
● Meets UL 224, CAN / CSA C22.2 NO198.1 -99
● Heat shrink ratio : 2:1,3:1
● Halogen-free , low-smoke generations , non-toxic , flexible , fire retardant
● Min. shrink temperature :84 ℃
● Min. full recovery temperature :120 ℃
● Continuous operating temperature : -55 °C ~ 125°C
● Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material
● Standard colors: black, white, red , yellow , Green, blue and other four international standard colors. More colors are available upon request.
Technical Data
Properties
Typical Data
Test Method
Tensile strength
≥10.4MPa
ASTM D 2671
Elongation
≥200%
ASTM D 2671
Tensile strength after heat aging
≥7.3MPa
158℃×168h
Elongation after heat aging
≥100%
158℃×168h
Longitudinal change
-5%～+5%
ASTM D 2671
Flammability
VW-1
ASTM D 2671
Voltage withstand(Rated voltage 600V)
2500V,1min, without breakdown
UL 224
Heat shock
No cracking, no dripping
UL 224，250℃×4h
Dielectric strength
≥15kV/mm
ASTM D 149
Volume resistivity
≥1014Ω.cm
IEC 60093

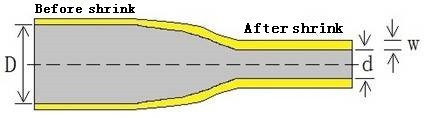

Structure
Dimension(2:1 Shrink Ratio)
Size(mm)
As supplied D (mm)
After full Recovered(mm)
Standard Package
(M/spool)
Internal diameter d
Wall thickness w
φ0.5/0.35
0.7±0.2
≤0.35
0.33±0.10
400
φ0.6/0.40
0.9±0.2
≤0.40
0.33±0.10
400
φ0.8/0.50
1.1±0.2
≤0.50
0.33±0.10
400
φ1.0/0.65
1.5±0.2
≤0.65
0.36±0.10
400
φ1.5/0.85
2.0±0.2
≤0.85
0.36±0.10
400
φ2.0/1.00
2.5±0.2
≤1.00
0.45±0.10
400
φ2.5/1.30
3.0±0.2
≤1.30
0.45±0.10
400
φ3.0/1.50
3.5±0.2
≤1.50
0.45±0.10
400
φ3.5/1.80
4.0±0.2
≤1.80
0.45±0.10
400
φ4.0/2.00
4.5±0.2
≤2.00
0.45±0.10
400
φ4.5/2.30
5.0±0.2
≤2.30
0.45±0.10
200
φ5.0/2.50
5.5±0.2
≤2.50
0.56±0.10
200
φ5.5/2.75
6.0±0.2
≤2.75
0.56±0.10
200
φ6.0/3.00
6.5±0.2
≤3.00
0.56±0.10
200
φ7.0/3.50
7.5±0.3
≤3.50
0.56±0.10
100
φ8.0/4.00
8.5±0.3
≤4.00
0.56±0.10
100
φ9.0/4.50
9.5±0.3
≤4.50
0.56±0.10
100
φ10/5.00
10.5±0.3
≤5.00
0.56±0.10
100
φ11/5.50
11.5±0.3
≤5.50
0.56±0.10
100
φ12/6.00
12.5±0.3
≤6.00
0.56±0.10
100
φ13/6.50
13.5±0.3
≤6.50
0.70±0.10
100
φ14/7.00
14.5±0.3
≤7.00
0.70±0.10
100
φ15/7.50
15.5±0.4
≤7.50
0.70±0.10
100
φ16/8.00
16.5±0.4
≤8.00
0.70±0.10
100
φ17/8.50
17.5±0.4
≤8.50
0.70±0.10
100
φ18/9.00
19.0±0.5
≤9.00
0.70±0.10
100
φ20/10.0
22.0±0.5
≤10.0
0.80±0.15
100
φ22/11.0
24.0±0.5
≤11.0
0.80±0.15
100
φ25/12.5
26.0±0.5
≤12.5
0.90±0.15
50
φ28/14.0
29.0±0.5
≤14.0
0.90±0.15
50
φ30/15.0
31.5±1.0
≤15.0
1.00±0.15
50
φ35/17.5
36.5±1.0
≤17.5
1.00±0.15
50
φ40/20.0
41.5±1.0
≤20.0
1.00±0.15
50
Φ45/22.5
≥45.0
≤22.5
1.00±0.15
50
φ50/25.0
≥50.0
≤25.0
1.10±0.15
25
φ60/30.0
≥60.0
≤30.0
1.20±0.15
25
φ70/35.0
≥70.0
≤35.0
1.30±0.20
25
φ80/40.0
≥80.0
≤40.0
1.30±0.20
25
φ90/45.0
≥90.0
≤45.0
1.30±0.20
25
φ100/50.0
≥100.0
≤50.0
1.30±0.20
25
φ120/60.0
≥120.0
≤60.0
1.30±0.20
25
φ150/75.0
≥150.0
≤75.0
1.30±0.20
25
φ180/90.0
≥180.0
≤90.0
1.30±0.20
25
φ210/105.0
≥210.0
≤105.0
1.30±0.30
25
φ230/115.0
≥230.0
≤115.0
1.30±0.30
25
φ250/125.0
≥250.0
≤125.0
1.30±0.30
25
Φ300/150.0
≥300.0
≤150.0
1.30±0.30
25
Dimension (3:1 Shrink Ratio)
Size(mm)
As supplied D
(mm)
After full recovered (mm)
Standard Package
( M/spool)
Internal diameter d
Wall thickness w
φ1.5/0.5
≥1.5
≤0.50
0.45±0.10
200
Φ3.0/1.0
≥3.0
≤1.00
0.55±0.10
200
Φ4.5/1.5
≥4.5
≤1.50
0.60±0.10
100
Φ6.0/2.0
≥6.0
≤2.00
0.65±0.10
100
Φ9.0/3.0
≥9.0
≤3.00
0.75±0.15
50
Φ12/4
≥12.0
≤4.00
0.75±0.15
50
Φ15/5
≥15.0
≤5.00
0.80±0.15
50
Φ18/6
≥18.0
≤6.00
0.85±0.15
50
Φ24/8
≥24.0
≤8.00
1.00±0.20
25
Φ30/10
≥30.0
≤10.0
1.15±0.20
25
Φ39/13
≥39.0
≤13.0
1.50±0.20
25
Φ50/16
≥50.0
≤16.0
2.50±0.20
25
Φ60/20
≥60.0
≤20.0
2.60±0.20
25
Φ70/23
≥70.0
≤23.0
2.60±0.20
25
Φ80/26
≥80.0
≤26.0
2.60±0.20
25
Φ90/30
≥90.0
≤30.0
2.60±0.20
25
Φ100/33
≥100.0
≤33.0
2.60±0.20
25
Note: Non-standard packages and sizes are available on request
