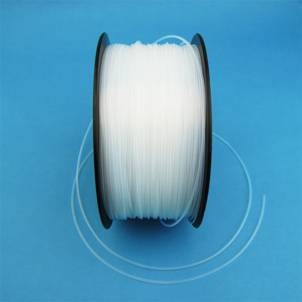

PTFE Teflon Tubing
- NS-PTFE200
- Highly temperature Resistant
- Highly flame retardant
- Resistant to corrosion, strong acid, strong base, chemical reagents, and oil etc
- Continuous operating temperature: -65℃～260℃
- RoHS compliant
- Flammability: VW-1
- Standard color: transparent
- Detailed
Description
Teflontubing or PTFE tubing, short for polytetrafluoroethylene tubing, ismade of superior polytetrafluoroethyleneresin through special extrusion and sintering process. This product is highlyelectrical insulating, highly flame retardant, self-lubricating and highly resistant tosuper high temperature, chemical reagents and almost all oil chemicals. Itfinds extensive applications inautomotive, war industry and aerospace markets.
Features
- Highly temperature Resistant
- Highly flame retardant
- Resistant to corrosion, strong acid, strong base, chemical reagents, and oil etc
- Continuous operating temperature: -65℃～260℃
- RoHS compliant
- Flammability: VW-1
- Standard color: transparent
Technical Data
|
Properties |
Typical Data |
Test Method |
|
Tensile strength |
≥25MPa |
ASTM D 2671 |
|
Elongation at break |
≥300% |
ASTM D 2671 |
|
Flammability |
VW-1 |
UL 224 |
|
Dielectric strength |
≥26kv/mm |
IEC 60243 |
|
Volume resistivity |
≥1014Ω.cm |
IEC 60093 |
|
Copper corrosion |
pass |
UL 224 |
|
Water absorption |
＜0.1% |
ASTM D 570 |
Dimension
|
Size (AWG） |
Inner diameter(mm） |
Outer diameter(mm) |
Standard package (m/coil，m/pc) |
||
|
Outer diameter（S） |
Outer diameter（T） |
Outer diameter（L） |
|||
|
30 |
0.30±0.10 |
0.80±0.10 |
0.70±0.10 |
0.60±0.10 |
305 m/coil |
|
28 |
0.38±0.10 |
0.88±0.10 |
0.78±0.10 |
0.68±0.10 |
305m/coil |
|
26 |
0.46±0.10 |
0.96±0.10 |
0.86±0.10 |
0.76±0.10 |
305m/coil |
|
24 |
0.56±0.10 |
1.16±0.10 |
1.06±0.10 |
0.86±0.10 |
305m/coil |
|
23 |
0.66±0.10 |
1.26±0.10 |
1.16±0.10 |
0.96±0.10 |
305m/coil |
|
22 |
0.71±0.10 |
1.31±0.10 |
1.21±0.10 |
1.01±0.10 |
305m/coil |
|
21 |
0.81±0.10 |
1.41±0.10 |
1.31±0.10 |
1.11±0.10 |
305m/coil |
|
20 |
0.86±0.10 |
1.66±0.10 |
1.46±0.10 |
1.16±0.10 |
305m/coil |
|
19 |
0.96±0.20 |
1.76±0.20 |
1.56±0.20 |
1.26±0.20 |
200m/coil |
|
18 |
1.07±0.20 |
1.87±0.20 |
1.67±0.20 |
1.37±0.20 |
200m/coil |
|
17 |
1.19±0.20 |
1.99±0.20 |
1.79±0.20 |
1.49±0.20 |
200m/coil |
|
16 |
1.34±0.20 |
2.14±0.20 |
1.94±0.20 |
1.64±0.20 |
153m/coil |
|
15 |
1.50±0.20 |
2.30±0.20 |
2.10±0.20 |
1.80±0.20 |
153m/coil |
|
14 |
1.68±0.20 |
2.48±0.20 |
2.28±0.20 |
2.08±0.20 |
153m/coil |
|
13 |
1.93±0.20 |
2.73±0.20 |
2.53±0.20 |
2.33±0.20 |
153m/coil |
|
12 |
2.16±0.25 |
2.96±0.25 |
2.77±0.25 |
2.60±0.25 |
153m/coil |
|
11 |
2.41±0.25 |
3.21±0.25 |
3.01±0.25 |
2.81±0.25 |
153m/coil |
|
10 |
2.69±0.25 |
3.49±0.25 |
3.29±0.25 |
3.01±0.25 |
153m/coil |
|
9 |
3.00±0.25 |
4.00±0.25 |
3.80±0.25 |
3.40±0.25 |
100m/coil |
|
8 |
3.38±0.25 |
4.38±0.25 |
4.18±0.25 |
3.80±0.25 |
100m/coil |
|
7 |
3.76±0.25 |
4.76±0.25 |
4.56±0.25 |
4.20±0.25 |
100m/coil |
|
6 |
4.22±0.25 |
5.22±0.25 |
4.92±0.25 |
4.70±0.25 |
100m/coil |
|
5 |
4.72±0.25 |
5.72±0.25 |
5.42±0.25 |
5.32±0.25 |
50m/coil |
|
4 |
5.28±0.30 |
6.28±0.30 |
6.02±0.30 |
5.88±0.25 |
50m/coil |
|
3 |
5.94±0.30 |
6.94±0.30 |
6.74±0.30 |
6.54±0.25 |
1.0m/pcs |
|
2 |
6.68±0.30 |
7.68±0.30 |
7.48±0.30 |
7.28±0.25 |
1.0m/pcs |
|
1 |
7.46±0.30 |
8.46±0.30 |
8.29±0.30 |
8.06±0.25 |
1.0m/pcs |
|
0 |
8.38±0.30 |
9.36±0.30 |
9.18±0.30 |
8.98±0.25 |
1.0m/pcs |
