UV Resistant Anti-aging Flame Retardant Type Self Fusing Silicone Tape
- FST6030SI
- high temperature resistant, aging resistant, excellent insulation, waterproof and sealing performance
- Detailed

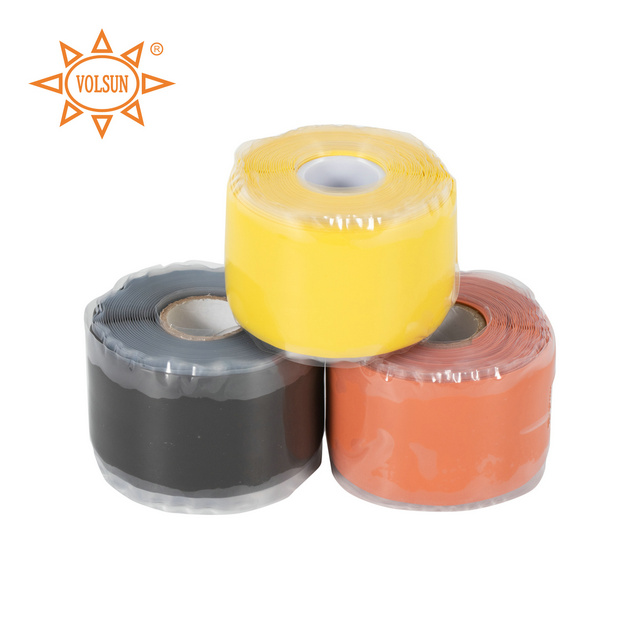

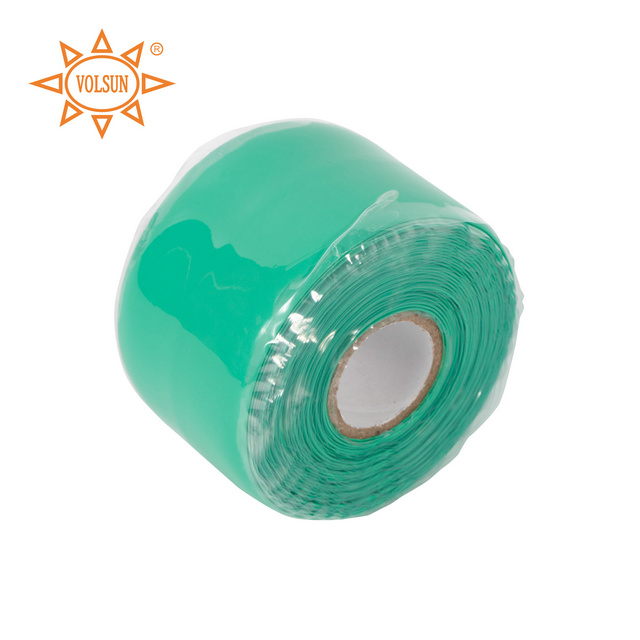

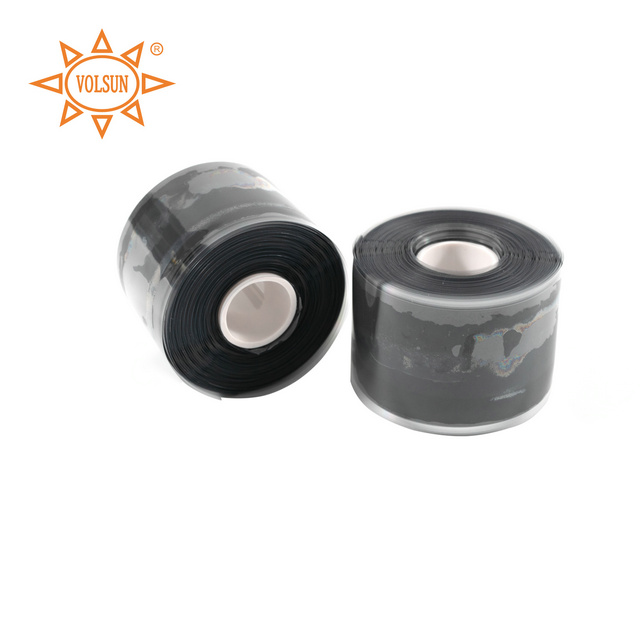

What is silicone self fusing tape?
Volsun self-fusing Silicone Tape is a convenient, ready to use tape which can be used to make airtight and waterproof seals on many types of materials and applications including electrical connections, hoses, and cables and to reduce vibration of hand tools. It is tear, abrasion, and UV resistant and it withstands exposure to fuel, water, oil, acids, and many solvents. It is a class H Insulator. This product is designed to seal hoses and leaky plumbing, insulate electrical connections, wrap hand tool handles.
What are advantages of self fusing silicone tape?
- Standard colors: red, yellow, green, black (other colors can be customized)
- Operating temperature: -60℃~+180℃
- The surface of the tape is not sticky to the touch, after peeling off, no sticky residue will be left
- Strong self-adhesiveness can be produced in a short time, and it can be self-integrated after winding, which can be sealed and waterproof

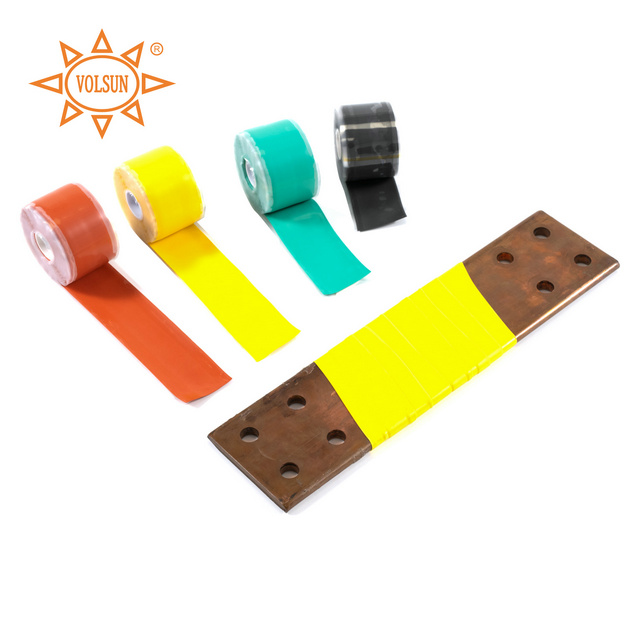

- The product can be wound into any shape, suitable for wrapping various electrical cable joints and intermediate joints
- Anti-fouling, anti-corrosion, anti-ultraviolet, waterproof, ozone-resistant, anti-aging, suitable for various environments, suitable for outdoor operations
Typical Technical Performance of self-fusing silicone tape
|
Item |
Typical Data |
Test Standard |
|
Tensile Strength |
≥3.5MPa |
GB/T 528-2009 |
|
Elongation at break |
≥200% |
GB/T 528-2009 |
|
Self-adhesive |
＞3.5N/cm |
ASTM D2148 |
|
Flame Retardancy |
V-0 |
UL94 |
|
Dielectric strength |
≥22kV/mm |
GB/T1408.1-2006 |
|
Volume resistivity |
≥1.3×1014Ω·m |
GB/T1410-2006 |
|
Size |
Width（mm） |
Thickness（mm） |
Package（M/Roll） |
|
20*0.8 |
20±2.0 |
0.8±0.08 |
5/ customized |
|
25*0.5 |
25±2.0 |
0.5±0.08 |
5/ customized |
|
25*0.8 |
25±2.0 |
0.8±0.08 |
5/ customized |
|
25*1.0 |
25*1.0 |
1.0±0.08 |
5/ customized |
|
30*1.5 |
30±2.0 |
1.5±0.08 |
5/ customized |
|
50*0.5 |
50±2.0 |
0.5±0.08 |
5/ customized |
How to apply the silicone self-fusing tape?
1. Wipe the surface of the object to be protected, tear off the isolation film, and wrap half of the self-adhesive tape on the object to be protected
2. Finish installation

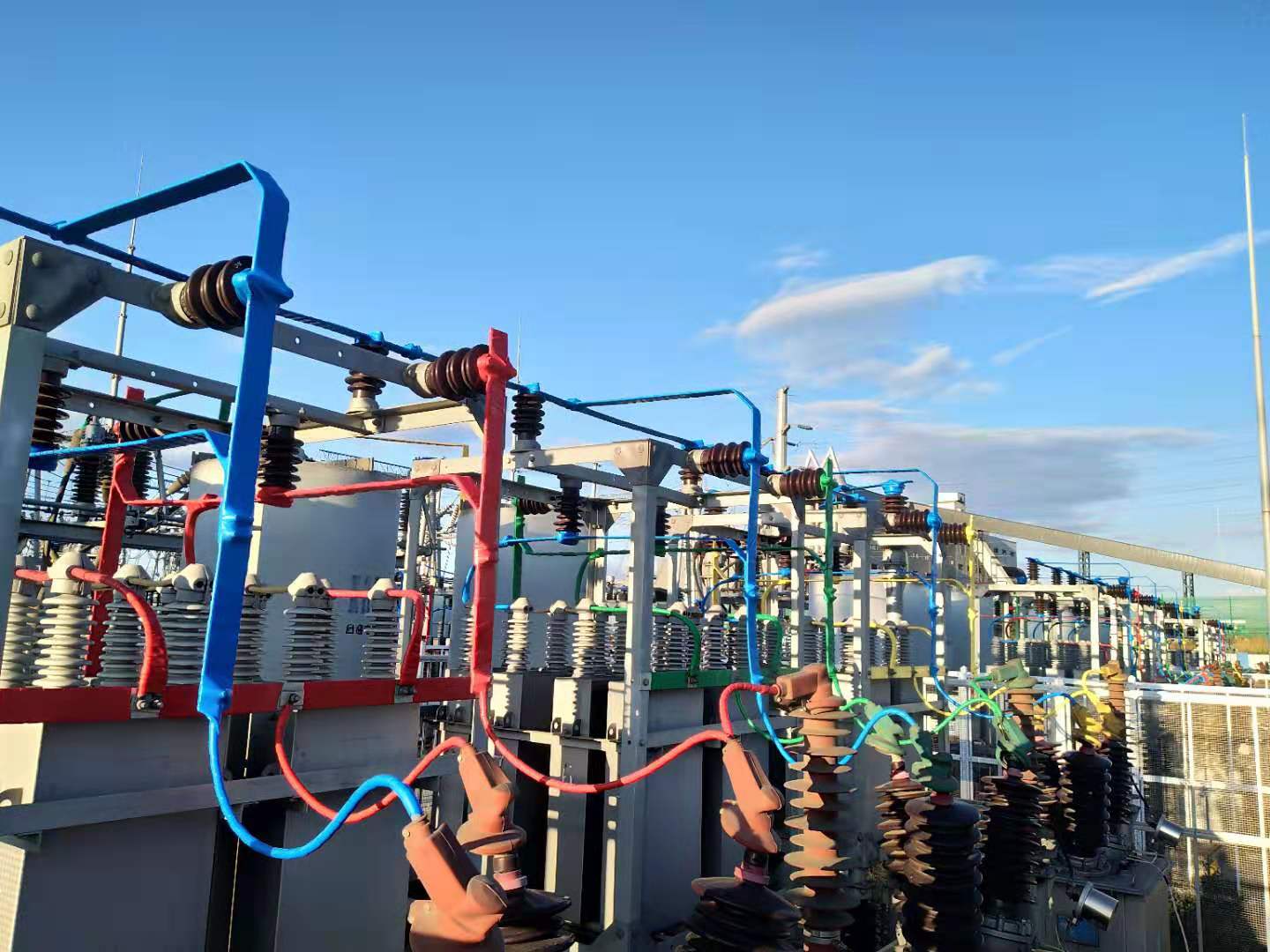

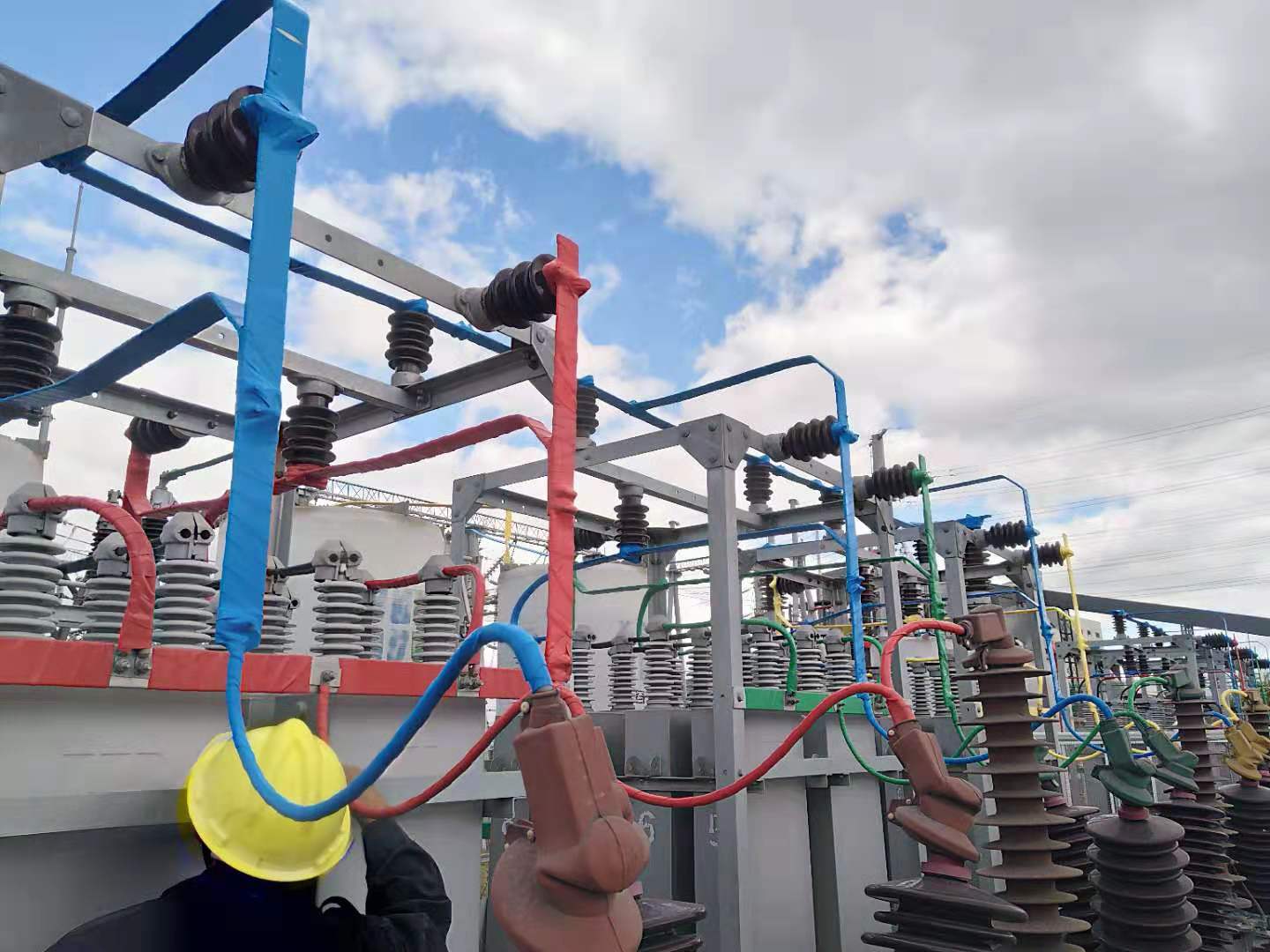

Application of silicone rubber self-adhesive tape in substation renovation project
1. Before installation, the surface of the object to be protected must be cleaned, free from dirt and debris, so as not to affect the installation and use
2. When tearing off the film and attaching it to the protected object, a small amount of tearing off the film is required. Too much film tearing at one time will cause wrinkles and stick to impurities during use, which will affect the use
3. When pasting, one-half overlap is required to ensure the protective effect of the product
4. The environment should be kept as clean as possible during use to prevent impurities from sticking to the tape and affecting the adhesive force
