Low Voltage Cable Breakout2 to 5 Cores
- MDRS-BKT
- Suitable for low-voltage power cables
- Seal, good adhesion properties
- Good UV and weather resistance
- Operating temperature: -55°C ~ 110°C
- Shrink temperature: 110°C ~ 130°C
- Standard colors: Black
- Detailed
Low Voltage Cable Breakout 2 to 5 Cores

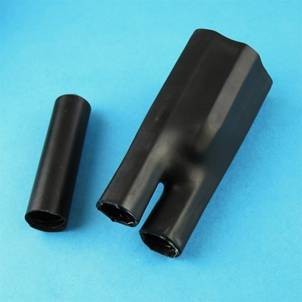

MDRS-BKT Heat shrinkable breakout, made with the hot melt material and the cross-linked polyolefin layer, and has excellent sealing performance, protection is mainly used in insulation and sealing at a low voltage power cable branch.
Features
● Suitable for low-voltage power cables
● Seal, good adhesion properties
● Good UV and weather resistance
● Operating temperature: -55°C ~ 110°C
● Shrink temperature: 110°C ~ 130°C
● Standard colors: Black
Technical Performance
|
Test Properties |
Typical Data |
Test Method |
|
Tensile Strength |
≥13 MPa |
ASTM D 2671 |
|
Ultimate elongation |
≥300% |
ASTM D 2671 |
|
Tensile strength after thermal aging |
≥10 MPa |
120℃, 168 hrs |
|
Ultimate elongation after thermal aging |
≥250% |
150℃, 168 hrs |
|
Dielectric Strength |
≥15kV/mm |
IEC 60243 |
|
Volume Resistivity |
≥1013Ω .cm |
IEC 60093 |
Dimensions
|
Size (mm) |
Big end ID(mm) |
Finger ID(mm) |
Length (±10%) |
Thickness after shrink (±20%) |
||||
|
Before shrink |
After shrink |
Before shrink |
After shrink |
Total Length |
Finger Length |
Big end Thickness |
Finger Thickness |
|
|
Two cores cable breakout |
||||||||
|
Φ22/8 |
22 |
8 |
9 |
3.5 |
55 |
18 |
2.2 |
1.8 |
|
Φ30/12 |
30 |
12 |
14 |
4.5 |
93 |
23 |
2.6 |
2.2 |
|
Φ40/16 |
40 |
16 |
15 |
5 |
125 |
35 |
2.1 |
2.1 |
|
Φ60/23 |
60 |
23 |
25 |
7.5 |
118 |
29 |
2.6 |
2.6 |
|
Φ60/23 |
60 |
23 |
25 |
7.5 |
155 |
45 |
2.6 |
2.6 |
|
Φ100/42 |
100 |
42 |
30 |
9 |
155 |
55 |
3.1 |
3.1 |
|
Φ150/75 |
150 |
75 |
20 |
6 |
170 |
64 |
3.8 |
3.8 |
|
Three cores cable breakout |
||||||||
|
Φ38/16 |
38 |
17 |
14 |
4..5 |
98 |
23 |
2.7 |
2.7 |
|
Φ40/16 |
40 |
16 |
15 |
4.5 |
125 |
35 |
2.1 |
2.1 |
|
Φ60/24 |
60 |
25 |
25 |
8 |
165 |
50 |
3.0 |
2.5 |
|
Φ60/24 |
60 |
24 |
25 |
8 |
180 |
45 |
3.2 |
2.8 |
|
Φ80/36 |
80 |
38 |
35 |
11 |
185 |
55 |
3.5 |
3.5 |
|
Φ80/36 |
80 |
38 |
35 |
11 |
215 |
57 |
4.0 |
4.0 |
|
Φ110/48 |
110 |
50 |
46 |
17.5 |
250 |
65 |
4.0 |
4.0 |
|
Φ125/57 |
125 |
57 |
55 |
20 |
260 |
57 |
4.0 |
4.0 |
|
Φ140/70 |
140 |
70 |
62 |
26 |
280 |
70 |
4.0 |
4.0 |
|
Φ170/75 |
170 |
77 |
75 |
28 |
280 |
80 |
4.0 |
4.0 |
|
Four cores cable breakout |
||||||||
|
Φ40/15 |
42 |
15 |
14 |
3.5 |
105 |
26 |
2.2 |
2.0 |
|
Φ55/21 |
55 |
21 |
20 |
5 |
150 |
40 |
3.1 |
2.6 |
|
Φ65/26 |
65 |
26 |
26 |
7 |
175 |
45 |
3.3 |
2.9 |
|
Φ75/26 |
75 |
26 |
28 |
7 |
175 |
45 |
3.3 |
2.9 |
|
Φ82/37 |
82 |
37 |
30 |
9 |
190 |
60 |
4.0 |
3.0 |
|
Φ90/37 |
90 |
37 |
32 |
9 |
190 |
60 |
4.0 |
3.0 |
|
Φ100/47 |
102 |
47 |
38 |
12 |
198 |
58 |
4.0 |
3.0 |
|
Φ125/52 |
130 |
52 |
52 |
15 |
240 |
75 |
4.0 |
4.0 |
|
Φ160/70 |
160 |
70 |
64 |
19 |
260 |
75 |
4.0 |
4.0 |
|
Five cores cable breakout |
||||||||
|
Φ40/19 |
40 |
19 |
13 |
4 |
98 |
25 |
2.5 |
2.0 |
|
Φ55/24 |
55 |
24 |
18 |
5 |
155 |
40 |
3.2 |
2.6 |
|
Φ80/33 |
80 |
33 |
26 |
8 |
175 |
53 |
3.0 |
2.8 |
|
Φ100/42 |
100 |
42 |
34 |
10 |
190 |
60 |
3.0 |
3.0 |
