Flame Retardant Medium Wall Adhesive-lined Heat Shrink Tubing
- ZBDJ-125G (3.5X)
- Shrink ratio:3.5:1
- Flame-retardant outer layer; environmentally friendly
- Shrink temperature:80℃~120℃
- Continuous operating temperature:-55℃~125℃
- RoHS compliant
- Standard colors: black
- Detailed
Flame Retardant Medium Wall Adhesive-lined Heat Shrink Tubing
Description

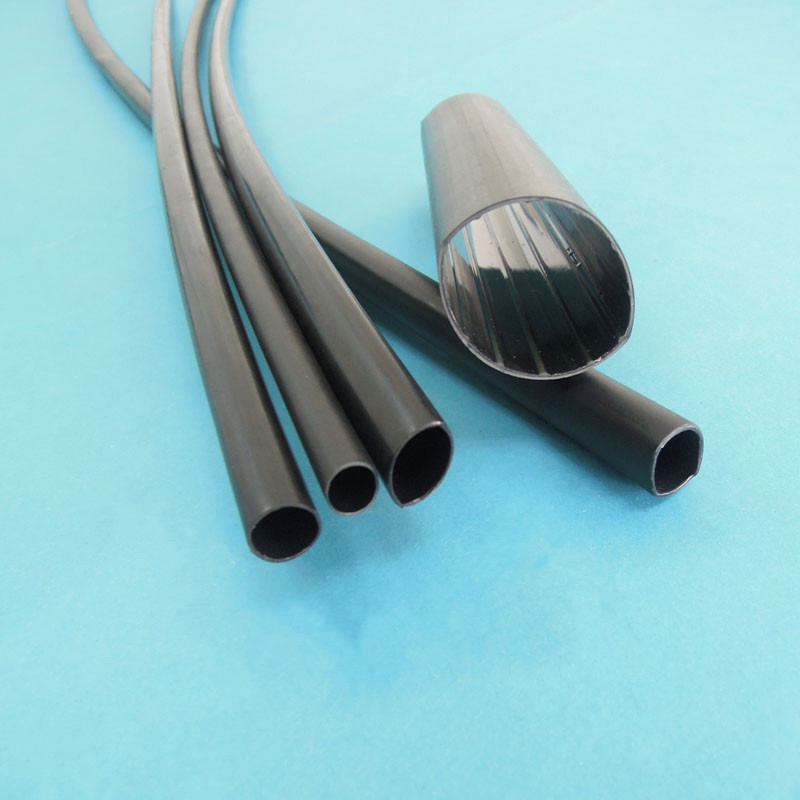

ZBDJ-125G (3.5X)Flame retardant adhesive-lined heat shrink tubing, with a hot melt adhesive layer extruded inside, is made of polyolefin materials whose properties are modified through ionizing radiation technology. The polyolefin outside, combined with inner layer of adhesive, produces excellent insulation, sealing capability against water and moisture, mechanical abrasion resistance, impact resistance. This product is specially designed to provide insulation protection for medium and low voltage cable middle connection, terminations and various busbars and for other corrosion resistant, moisture-proof and sealing purposes.
Features
● Shrink ratio:3.5:1
● Flame-retardant outer layer; environmentally friendly
● Shrink temperature:80℃~120℃
● Continuous operating temperature:-55℃~125℃
● RoHS compliant
● Standard colors: black
Technical Performance
|
Properties |
Typical Data |
Test Method |
|
Tensile strength |
≥14MPa |
ASTM D 2671 |
|
Elongation |
≥400% |
ASTM D 2671 |
|
Tensile strength after heat ageing |
≥12MPa |
158℃ ×168h |
|
Elongation after heat ageing |
≧ 300% |
158℃ ×168h |
|
Longitudinal change |
0~-10% |
ASTM D 2671 |
|
Flammability |
Self-extinguish in 30 sec. |
UL224 |
|
Dielectric strength |
≥18kv/mm |
IEC 60243 |
|
Volume resistivity |
≥1014Ω.cm |
IEC 60093 |
Hot melt adhesive
Property
Typical
data
Test
method/condition
Softening point
95±5℃
ASTM E 28
Water absorption
<0.5%
ASTM D 570
Peel strength(PE)
≥120N/25mm
ASTM D 1000
Peel strength(AI)
≥80N/25mm
ASTM D 1000

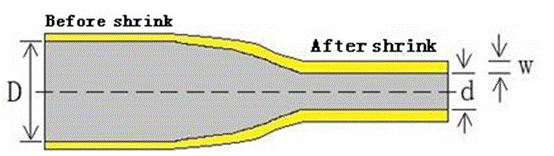

Structure
Dimensions
|
Size(mm) |
As supplied D(mm) |
Recovered(mm) |
Standard package |
|
|
Internal diameter d |
wall thickness w |
(m/pc) |
||
|
Φ8.0/2.0 |
≥8.0 |
≤2.00 |
≥1.7 |
1.00～1.50 |
|
Φ9.0/3.0 |
≥9.0 |
≤3.00 |
≥1.8 |
1.00～1.50 |
|
Φ12.0/3.0 |
≥12.0 |
≤3.00 |
≥1.8 |
1.00～1.50 |
|
Φ16.0/5.0 |
≥16.0 |
≤5.00 |
≥2.0 |
1.00～1.50 |
|
Φ19.0/5.0 |
≥19.0 |
≤5.00 |
≥2.2 |
1.00～1.50 |
|
Φ22.0/6.0 |
≥22.0 |
≤6.00 |
≥2.2 |
1.00～1.50 |
|
Φ25.0/6.0 |
≥25.0 |
≤6.00 |
≥2.2 |
1.00～1.50 |
|
Φ28.0/6.0 |
≥28.0 |
≤6.00 |
≥2.5 |
1.00～1.50 |
|
Φ33.0/8.0 |
≥33.0 |
≤8.00 |
≥2.5 |
1.00～1.50 |
|
Φ35.0/8.0 |
≥35.0 |
≤8.00 |
≥2.5 |
1.00～1.50 |
|
Φ40.0/12.0 |
≥40.0 |
≤12.0 |
≥2.5 |
1.00～1.50 |
|
Φ45.0/12.0 |
≥45.0 |
≤12.0 |
≥2.5 |
1.00～1.50 |
|
Φ55.0/16.0 |
≥55.0 |
≤16.0 |
≥2.7 |
1.00～1.50 |
|
Φ65.0/19.0 |
≥65.0 |
≤19.0 |
≥2.8 |
1.00～1.50 |
|
Φ75.0/22.0 |
≥75.0 |
≤22.0 |
≥3.0 |
1.00～1.50 |
|
Φ85.0/25.0 |
≥85.0 |
≤25.0 |
≥3.0 |
1.00～1.50 |
|
Φ95.0/30.0 |
≥95.0 |
≤30.0 |
≥3.0 |
1.00～1.50 |
|
Φ105.0/30.0 |
≥105.0 |
≤30.0 |
≥3.0 |
1.00～1.50 |
|
Φ115.0/34.0 |
≥115.0 |
≤34.0 |
≥3.3 |
1.00～1.50 |
|
Φ130.0/36.0 |
≥130.0 |
≤36.0 |
≥3.3 |
1.00～1.50 |
|
Φ140.0/42.0 |
≥140.0 |
≤42.0 |
≥3.5 |
1.00～1.50 |
|
Φ160.0/50.0 |
≥160.0 |
≤50.0 |
≥3.5 |
1.00～1.50 |
|
Φ180.0/58.0 |
≥180.0 |
≤58.0 |
≥3.5 |
1.00～1.50 |
|
Φ205.0/65.0 |
≥205.0 |
≤65.0 |
≥3.5 |
1.00～1.50 |
|
Φ235.0/65.0 |
≥235.0 |
≤65.0 |
≥3.7 |
1.00～1.50 |
|
Φ265.0/75.0 |
≥265.0 |
≤75.0 |
≥4.0 |
1.00～1.50 |
|
Φ300.0/85.0 |
≥300.0 |
≤85.0 |
≥4.0 |
1.00～1.50 |
|
Φ350.0/100.0 |
≥350.0 |
≤100.0 |
≥4.3 |
1.00～1.50 |
|
Φ380.0/150.0 |
≥380.0 |
≤150.0 |
≥4.3 |
1.00～1.50 |
|
Φ410.0/150.0 |
≥410.0 |
≤150.0 |
≥4.3 |
1.00～1.50 |
Note: Non-standard dimensions and package are available on request
