Flame retardant Medium Wall Heat Shrink Tubing(without adhesive)

ZBWJ-125G(3.5X)
  • Flame-retardant outer layer; Ultraviolet-proof
  • Min shrink temperature: 80°C
  • Min. full recovery temperature: 120 °C​
  • Continuous operating temperature: -55 °C ~125°C
  • Shrink ratio: 3.5:1
  • RoHS compliant
  • Standard color: black. More colors are available upon request
    • Detailed

    Flame retardant Medium Wall Heat Shrink Tubing(without adhesive)


    Description


    ZBWJ-125G (3.5X)Flame retardant medium wall heat shrink tubing is manufactured through modification of polyolefin materials using ionizing radiation technology with electronic accelerators. It carries excellent insulation, flame retardant and flexibility. It is ideal for insulating and protecting middle connections and terminals of medium& low voltage cable, busbars and other places where flame retardant is demanded and resisting corrosion and abrasion for pipelines.


    Features


    ● Flame-retardant outer layer; Ultraviolet-proof

    ● Min shrink temperature: 80°C

     Min. full recovery temperature: 120 °C

     Continuous operating temperature: -55 °C ~125°C

    ● Shrink ratio: 3.5:1

     RoHS compliant

     Standard color: black. More colors are available upon request


    Technical Performance


    Properties

    Typical Data

    Test Method

    Tensile strength

    ≥14MPa

    ASTM D 2671

    Elongation

    ≥400%

    ASTM D 2671

    Tensile strength after heat ageing

    12MPa

    158℃ ×168h

    Elongation after heat ageing

    300%

    158℃ ×168h

    Longitudinal change

    0~-10%

    ASTM D 2671

    Flammability

    Self-extinguishing in 30 sec.

    UL224

    Dielectric strength

    18kv/mm

    IEC 60243

    Volume resistivity

    1014Ω.cm

    IEC 60093

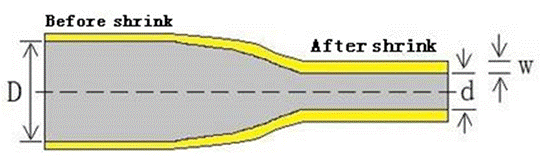

    Structure




    Dimensions


    Size(mm)

    As supplied

    D(mm)

    Recovered(mm)

    Standard Package

    Internal diameter

    d

    Wall thickness(mm)

    w

    (m/pc)

    Φ8.0/2.0

    8.0

    2.00

    1.7

    1.00~1.50

    Φ9.0/3.0

    9.0

    3.00

    1.8

    1.00~1.50

    Φ12.0/3.0

    12.0

    3.00

    1.8

    1.00~1.50

    Φ16.0/5.0

    16.0

    5.00

    2.0

    1.00~1.50

    Φ19.0/5.0

    19.0

    5.00

    2.2

    1.00~1.50

    Φ22.0/6.0

    22.0

    6.00

    2.2

    1.00~1.50

    Φ25.0/6.0

    25.0

    6.00

    2.2

    1.00~1.50

    Φ28.0/6.0

    28.0

    6.00

    2.5

    1.00~1.50

    Φ33.0/8.0

    33.0

    8.00

    2.5

    1.00~1.50

    Φ35.0/8.0

    35.0

    8.00

    2.5

    1.00~1.50

    Φ40.0/12.0

    40.0

    12.0

    2.5

    1.00~1.50

    Φ45.0/12.0

    45.0

    12.0

    2.5

    1.00~1.50

    Φ55.0/16.0

    55.0

    16.0

    2.7

    1.00~1.50

    Φ65.0/19.0

    65.0

    19.0

    2.8

    1.00~1.50

    Φ75.0/22.0

    75.0

    22.0

    3.0

    1.00~1.50

    Φ85.0/25.0

    85.0

    25.0

    3.0

    1.00~1.50

    Φ95.0/30.0

    95.0

    30.0

    3.0

    1.00~1.50

    Φ105.0/30.0

    105.0

    30.0

    3.0

    1.00~1.50

    Φ115.0/34.0

    115.0

    34.0

    3.3

    1.00~1.50

    Φ130.0/36.0

    130.0

    36.0

    3.3

    1.00~1.50

    Φ140.0/42.0

    140.0

    42.0

    3.5

    1.00~1.50

    Φ160.0/50.0

    160.0

    50.0

    3.5

    1.00~1.50

    Φ180.0/58.0

    180.0

    58.0

    3.5

    1.00~1.50

    Φ205.0/65.0

    205.0

    65.0

    3.5

    1.00~1.50

    Φ235.0/65.0

    235.0

    65.0

    3.7

    1.00~1.50

    Φ265.0/75.0

    265.0

    75.0

    4.0

    1.00~1.50

    Φ300.0/85.0

    300.0

    85.0

    4.0

    1.00~1.50

    Φ350.0/100.0

    350.0

    100.0

    4.3

    1.00~1.50

    Φ380.0/150.0

    380.0

    150.0

    4.3

    1.00~1.50

    Φ410.0/150.0

    410.0

    150.0

    4.3

    1.00~1.50

    Note: Non-standard dimensions and package are available on request
