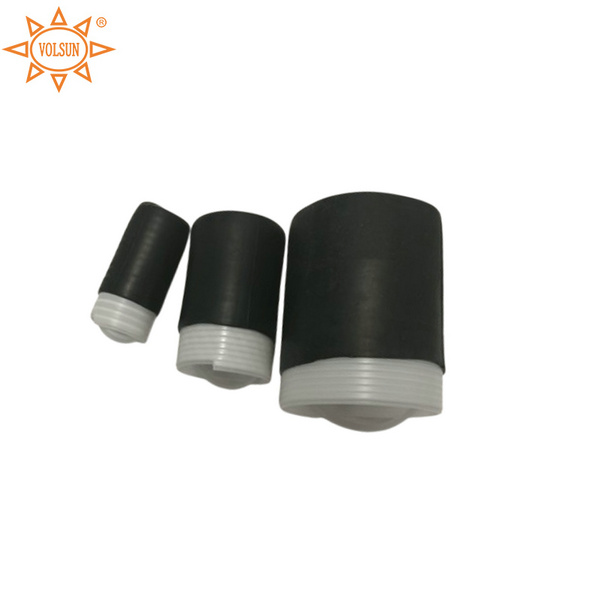

EPDM Rubber Cold Shrinkable End Caps For Cable Protection
- EPDM Cold Shrink End Cap
- Detailed
What is a cold shrink end cap?
The cold shrink end caps utilize EPDM rubber tubing, pre-stretched onto a plastic supporting core, offering exceptional performance. On-site application requires no heat: position the cap on the cable end and pull the supporting plastic strip. Relying on EPDM's excellent elastic memory, the cap recovers fully to create a long-lasting, dependable insulation seal protecting the cable end.
Features
- Good moisture resistance, acid resistance, alkali resistance, ozone resistance and UV resistance
- Good weather resistance, ozone aging resistance, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
- The special rubber formulation ensures that the material has tough properties to resist external mechanical forces
- Easy to install, no need special tools, fire or heat
- Standard color: black
Technical Performance
|
Properties |
Typical Data |
Test method |
|
Tensile Strength |
9.8MPa |
ASTM D412-75 |
|
Antibacterial |
No growth after 28 days of exposure |
ASTM G-21 28 days exposure |
|
Moisture absorption |
Weight increased by 3.2% |
In water at 90℃ for 7 days |
|
Weight increased by 1.3% |
In water at 90℃ for 24 hours |
|
|
Elongation at Break |
720% |
ASTM D412-75 |
|
Tear Strength |
27kN/m |
ASTM D624C-73 |
Size(mm)
（Expanded I.D.*Full Recovered Length）
Application Range
Min Cable
O.D.(mm)
Max
Cable O.D.(mm)
Φ25*60
11.6
20.9
Φ35*75
15.9
30.1
Φ55*82
26.0
49.2
Φ90*100
45.5
84.3
Please be noted that we can also produce other sizes according to customer's requirements.
