Volsun silicone cold shrink tube for 5G waterproof solution
Description

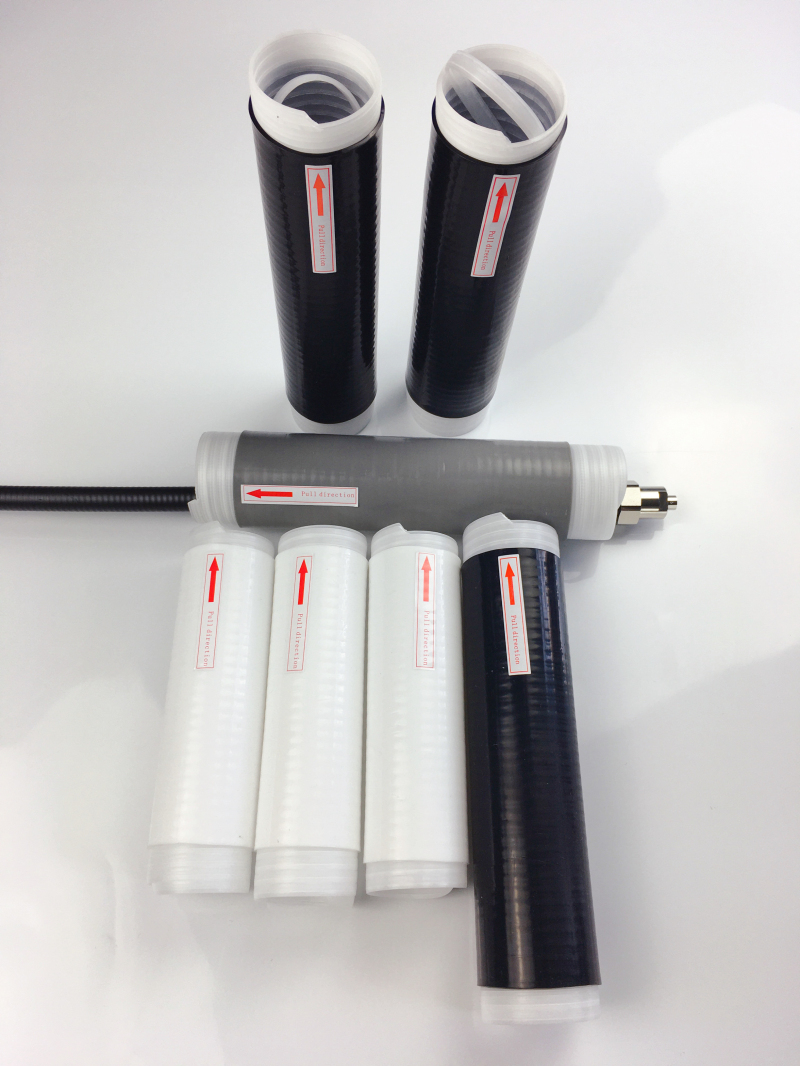

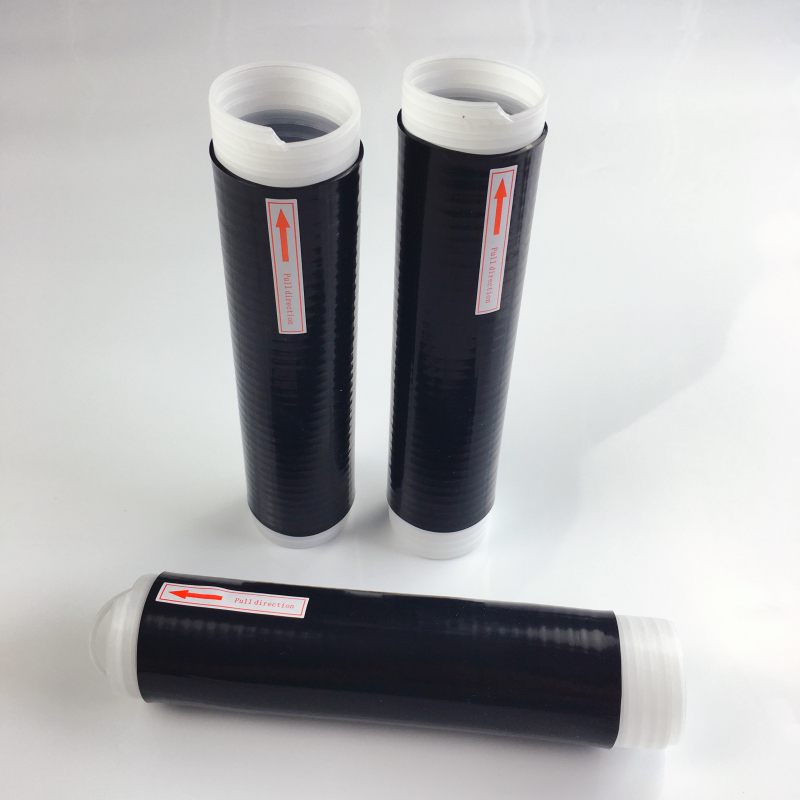

RUBLS-SILIC, Factory Direct Rubber Cold
Shrink Tube, is made of special purpose silicone rubber with a high shrink
ratio and excellent physical and mechanical properties like slab and prick
resistance. It reliably seals electrical connections of electric communications
and cable televisions against water and moisture and effectively insulates wire
and cable connections or joints and other electrical connections etc.
1. Continuous operating temperature:-60°C~200°C
2. Shrink Ratio :4:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
3. Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
4. Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
5. Excellent tear resistance
6. Simple installation, requires no special heating tools , and adhesive to seal the connections
7. Standard color: black
Technical Data
|
Properties |
Typical Data |
Test method |
|
HS |
45A |
ASTM D 2240-75 |
|
Tensile Strength |
9.8 MPa |
ASTM D412-75 |
|
Elongation at break |
840% |
ASTM D412-75 |
|
Tear Strength |
39 N/ mm |
ASTM D624C-73 |
|
Dielectric Strength |
23kV/mm |
ASTM 149-75 |
|
Volume Resistivity |
9×1015Ω.cm |
ASTM D 257 |
Dimensions
|
Size |
Inner Diameter D(mm) |
Min Cable Outer Diameter (mm) |
Max Cable Outer Diameter (mm) |
Recovered Length L(mm) |
|
VS28-1.4 |
28 |
6.0 |
25.0 |
36 |
|
VS28-1.7 |
28 |
6.0 |
25.0 |
43 |
|
VS28-5 |
28 |
6.0 |
25.0 |
130 |
|
VS28-6 |
28 |
6.0 |
25.0 |
150 |
|
VS32-2.2 |
32 |
10.5 |
27.0 |
57 |
|
VS32-5 |
32 |
10.5 |
27.0 |
130 |
|
VS32-7 |
32 |
10.5 |
27.0 |
178 |
|
VS32-8 |
32 |
10.5 |
27.0 |
203 |
|
VS32-9 |
32 |
10.5 |
27.0 |
229 |
|
VS32-11 |
32 |
10.5 |
27.0 |
279 |
|
VS32-12 |
32 |
10.5 |
27.0 |
305 |
|
VS35-5 |
35 |
10.5 |
30.0 |
130 |
|
VS35-7 |
35 |
10.5 |
30.0 |
178 |
|
VS35-8 |
35 |
10.5 |
30.0 |
203 |
|
VS35-9 |
35 |
10.5 |
30.0 |
229 |
|
VS35-11 |
35 |
10.5 |
30.0 |
279 |
|
VS35-12 |
35 |
10.5 |
30.0 |
305 |
|
VS42-6 |
42 |
12.0 |
36.0 |
150 |
|
VS42-7 |
42 |
12.0 |
36.0 |
178 |
|
VS42-8 |
42 |
12.0 |
36.0 |
203 |
|
VS42-9 |
42 |
12.0 |
36.0 |
229 |
|
VS42-11 |
42 |
12.0 |
36.0 |
279 |
|
VS42-12 |
42 |
12.0 |
36.0 |
300 |
|
VS45-6 |
45 |
13.5 |
39.0 |
150 |
|
VS45-7 |
45 |
13.5 |
39.0 |
178 |
|
VS45-8 |
45 |
13.5 |
39.0 |
203 |
|
VS45-9 |
45 |
13.5 |
39.0 |
229 |
|
VS45-11 |
45 |
13.5 |
39.0 |
279 |
|
VS45-12 |
45 |
13.5 |
39.0 |
300 |
|
VS50-6 |
50 |
18.0 |
45.0 |
150 |
|
VS50-7 |
50 |
18.0 |
45.0 |
178 |
|
VS50-8 |
50 |
18.0 |
45.0 |
203 |
|
VS50-9 |
50 |
18.0 |
45.0 |
229 |
|
VS50-11 |
50 |
18.0 |
45.0 |
279 |
|
VS50-12 |
50 |
18.0 |
45.0 |
300 |
|
VS58-6 |
58 |
18.0 |
51.0 |
150 |
|
VS58-7 |
58 |
18.0 |
51.0 |
178 |
|
VS58-8 |
58 |
18.0 |
51.0 |
203 |
|
VS58-9 |
58 |
18.0 |
51.0 |
229 |
|
VS58-11 |
58 |
18.0 |
51.0 |
279 |
|
VS58-12 |
58 |
18.0 |
51.0 |
300 |
|
VS68-6 |
68 |
22.0 |
63.0 |
150 |
|
VS68-7 |
68 |
22.0 |
63.0 |
178 |
|
VS68-8 |
68 |
22.0 |
63.0 |
203 |
|
VS68-9 |
68 |
22.0 |
63.0 |
229 |
|
VS68-11 |
68 |
22.0 |
63.0 |
279 |
|
VS68-14 |
68 |
22.0 |
63.0 |
350 |

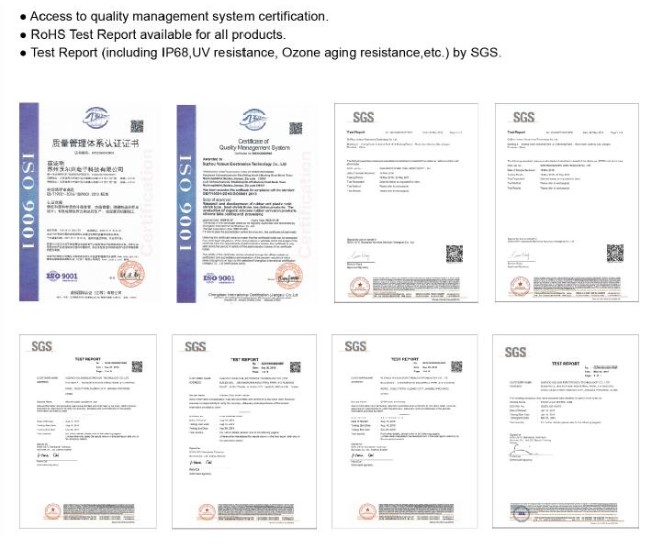

Certificates & Test Reports
