Silicone Rubber Cold Shrink Tube with Mastic
- RUBLS-SM
- Detailed
Silicone Rubber Cold Shrink Tube with Mastic
RUBLS-SM
Description

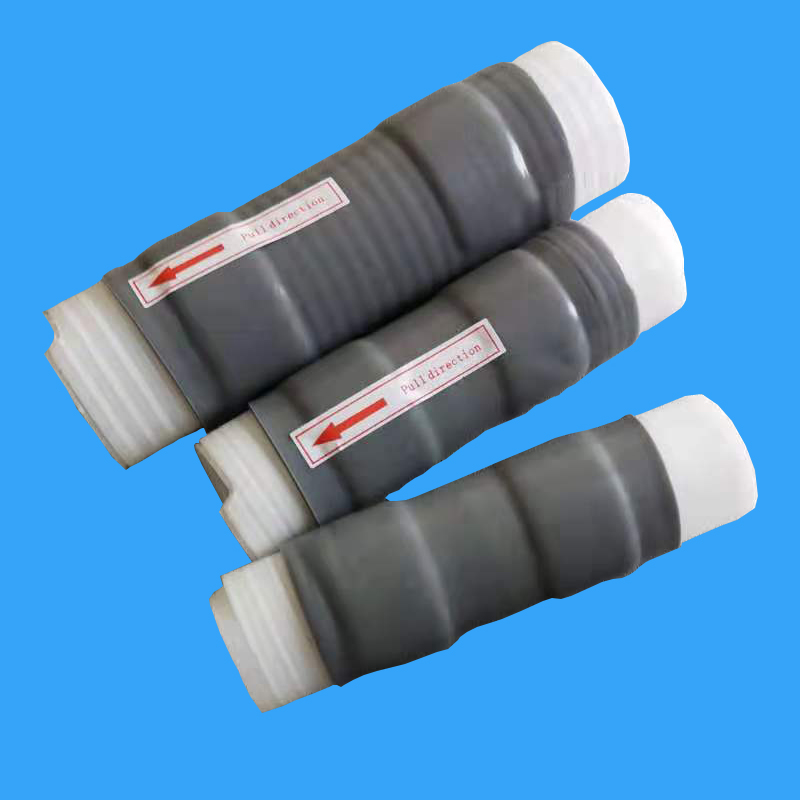

Volsun RUBLS-SM is an open-ended, water proofing mastic, cold shrink silicon rubber sleeve, which is factory pre-expanded and assembled onto a removable core. The core is removed when the tube is positioned for installation over an online connection or termination lug. The mastic at both ends provides excellent moisture-tight seals for termination and joints.
Features
- It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.
- It can be used as a waterproof seal for cable television connector
- It can be used as a waterproof seal for connecting wires and cables
- Insulation seal for other types of connection
Technical Performance
|
Properties |
Typical Data |
Test Method |
|
Shore Hardness |
45±5 |
GB/T 531-2008 |
|
Tensile Strength |
≥9.0MPa |
GB/T 528-2009 |
|
Elongation at break |
≥850% |
GB/T 528-2009 |
|
Tear Strength |
≥35kN/m |
GB/T 529-2008 |
Structure
Dimensions
|
Size |
Inner diameter (mm) |
Min Cable Outer Diameter (mm) |
Max Cable Outer Diameter (mm) |
Recovered Length L(mm) |
|
VM25-4.8 |
Ф25 |
9 |
20 |
120 |
|
VM28-4.4 |
Ф28 |
11 |
23 |
110 |
|
VM35-4.8 |
Ф35 |
12 |
30 |
120 |
|
VM40-5.6 |
Ф40 |
12.7 |
35 |
140 |
|
VM40-8 |
Ф40 |
12.7 |
35 |
200 |
|
VM40-11 |
Ф40 |
12.7 |
35 |
280 |
Remark: Special size and package are available on request.
