The application process of cold shrink tube
Time: 2022-04-02 09:47:27     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.

I believe everyone is familiar with heat shrink tube. Many people do not know what cold shrink tubes are. In fact, cold shrink tube are named relative to heat shrink tube. Heat shrink tube are called heat-shrinkable tube. The tube size can be reduced by heating and pulling the supporting core is called a cold shrinkable tube. Today, I will take you to see the application process of cold shrink tube.

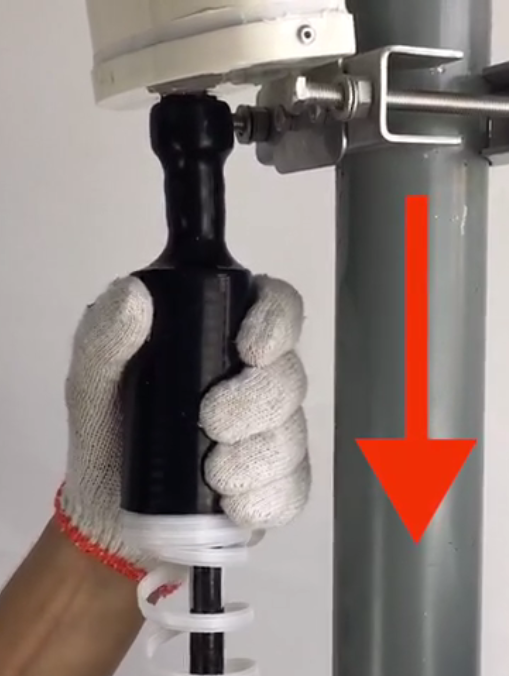

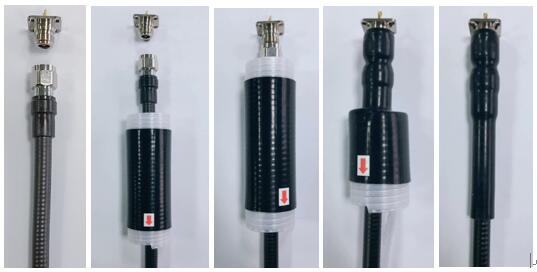

Preparing a silicone rubber cold shrink tube material in advance. The inner diameter of the cold shrink tube must be slightly larger than the thick cable to be covered, so that the thick cable can be tightly wrapped when shrinks. Wrapping the thin cable tightly and hold the cable and the cold shrink tube material in one hand through the alignment position of the product to be wrapped and gently pull off the white supporting core inside with the other hand, so that it shrinks quickly and completely wraps the protected place.


Pulling to make it shrink completely and rapidly.The cold shrink tube is more suitable for high-altitude work and places that do not need live work and also generally used in communication base station RF feeder, 1/2N, 7/8 jumper, coaxial cable, with a permanent diameter Shrinkage force, outdoor aging resistance, corrosion resistance, waterproof sealing, radiation resistance, expansion rate of more than 4 times.

Precautions:
1. The outer diameter of the thick cable and the thin cable should be considered, which is larger than the thick cable before shrink and smaller than the thin cable when shrink, so as to meet the applicable scope of the cable.
2. It cannot be reversed when pulling, align the position to be protected and operate properly.

More detail about cold shrink tube,please contact us freely by volsuntube@szvolsun.com
