Replace 3M series cold shrink end cap
Time: 2022-02-12 10:30:25     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.

Description

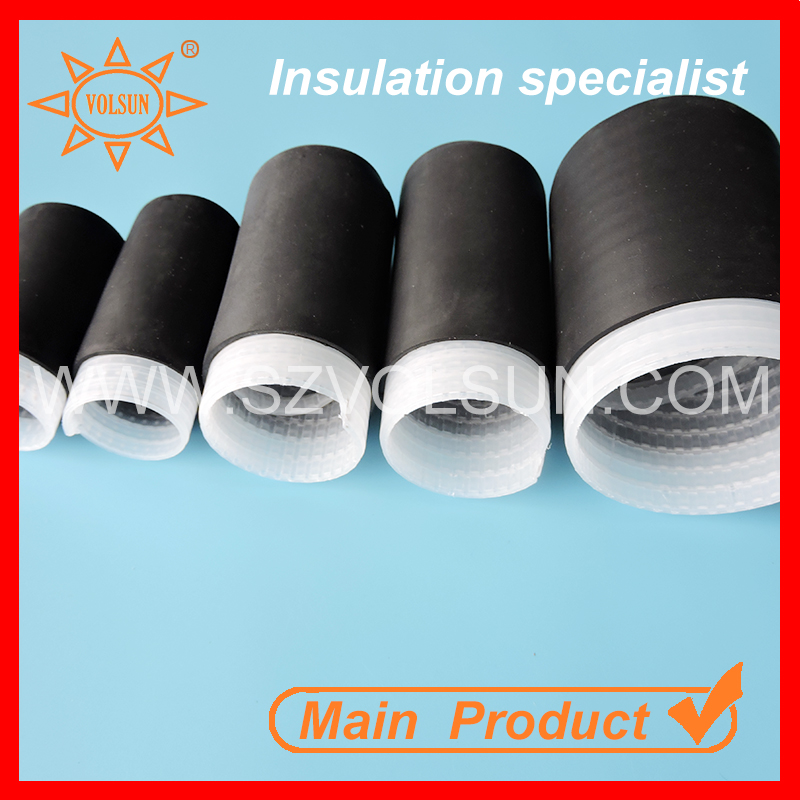

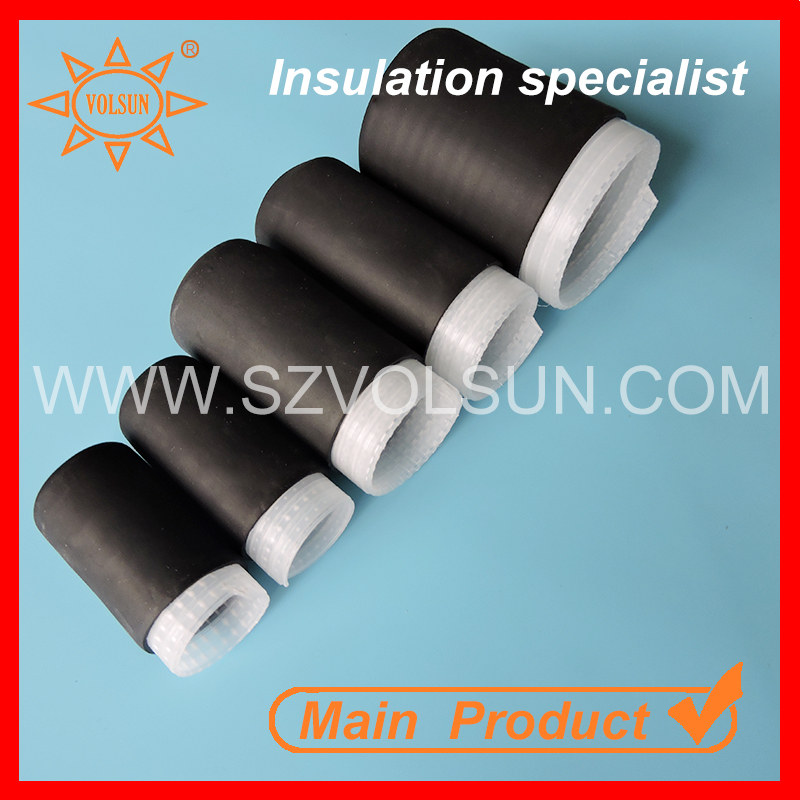

EPDM rubber cold shrink caps, EPDM rubber with excellent performance will be pre-expanded on a supporting core . The support tube is wound by a strip of plastic. During on-site installation, the operation is simple, no heating is required, just need to pull the support tube out; Because the EPDM rubber itself has excellent elastic memory characteristics, after the cap is fully recovered, a reliable and long-lasting insulation seal protection can be formed at the end of the cable.




Feature
  UV resistance, Moisture resistance, Acid and alkali resistance, Ozone resistance
  Strong and elastic rubber, always maintain its sealing pressure
  Good thermal stability
  Excellent resistance to humidity and electricity
  The special rubber formula ensures that the material has tough characteristics to resist external mechanical forces
  Easy to install, no need special tools, fire or heat

  Standard color:Black


Technical Performance

Properties

Typical data

Test Method

Tensile strength

9.8MPa

ASTM D412-75

Elongation at break

720%

ASTM D412-75

Tear strength

27kN/m

ASTM D624C-73

Antibacterial

No growth after 28 days of exposure

ASTM G-21

Moisture absorption

Weight increased by 3.2%

In water at 90 for 7 days

Weight increased by 1.3%

In water at 90 for 24 hours


Note: Above test data are typical data, not as a standard, just for reference.


Dimensions

Sizemm

Expanded I.D. * Fully Recovered Length

Application Range

Min Cable O.D.mm

Max Cable O.D.mm

Φ25*60

11.6

20.9

Φ35*75

15.9

30.1

Φ55*82

26.0

49.2

Φ90*100

45.5

84.3



More details about cold shrink end cap,please feel freely to contact us by volsuntube@szvolsun.com
