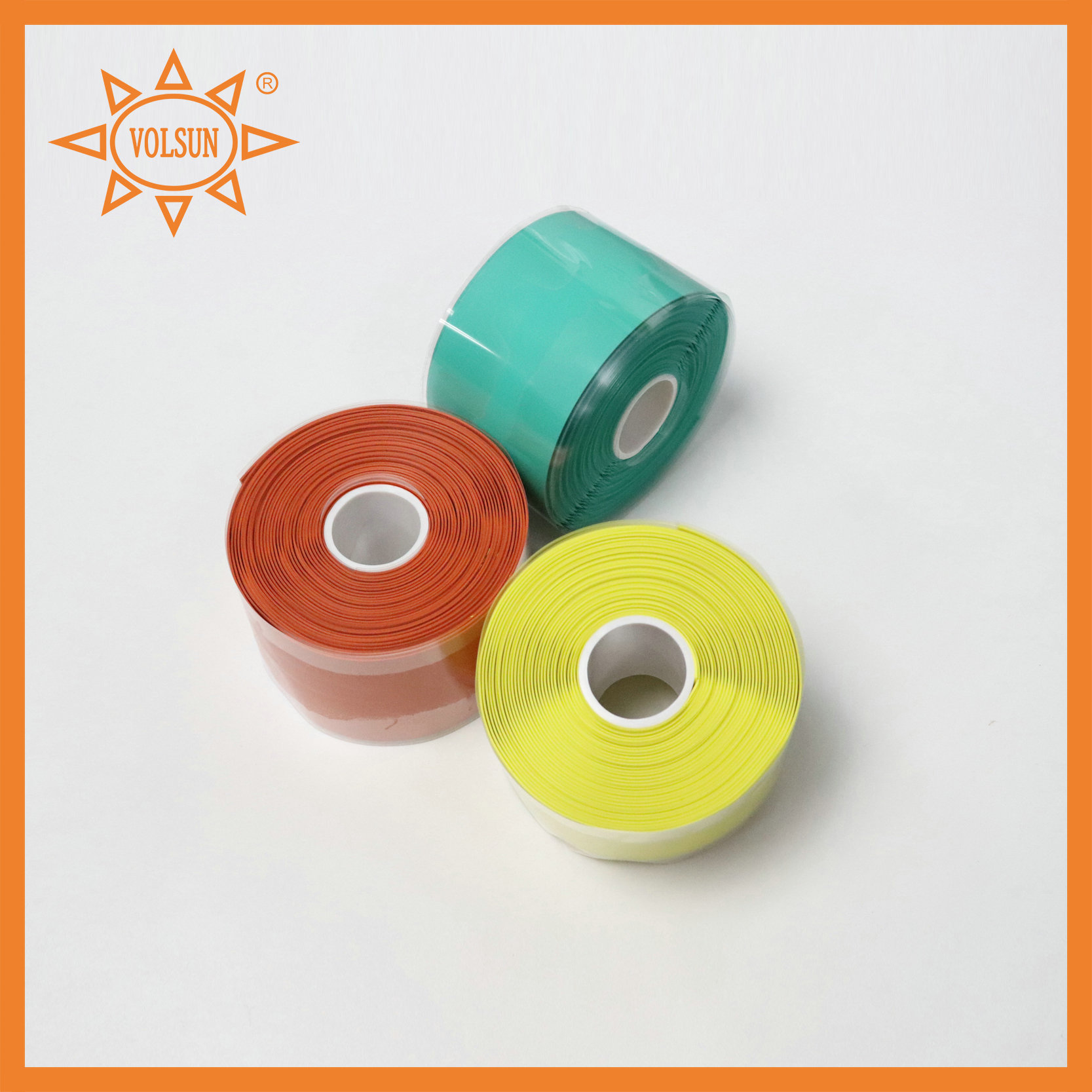

Volsun flame retardant silicone self-fusing tape for cable protection
Time: 2021-06-19 11:49:54     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.

We will introduce the silicone self-fusing tape product which includes the description,installation,package and technical performance.

Description:

Self-fusing Silicone Tape is a convenient, ready to use tape which can be used to make airtight and waterproof seals on many types of materials and applications including electrical connections and cables and to reduce vibration of hand tools. It is tear, abrasion and UV resistant and it withstands exposure to fuel, water, oil, acids, and many solvents. It is a class H Insulator. This product is designed to seal hoses and leaky plumbing, insulate electrical connections, wrap hand tool handles.


Direction for use note:

1. Remove any excess dirt, oil, etc. from repair area and clean hands with hand cleaners or soap and water before starting the repair.

2. Remove package and peel 1-2 inches of liner from the tape.

3. Press the exposed tape firmly to the surface to be repaired, making sure to completely overlap the first wrap over itself while at the same time stretching the tape.






Features
•  Operating temperature: -60-180℃
•  Standard color: Red,Yellow,Blue,Green
•  Flame retardant grade: V0(UL94)

•  Hardness shore: 53A


Technical Data

Properties

Typical Data

Test Method

Tensile Strength

3.5Mpa

ASTM D 412

Elongation at break

300%

ASTM D 412

Dielectric Strength

25KV

ASTM D 149

Aurohension

13.7N/cmtypical data

GB/T 20631.2-2006

Water absorption

0.35%

ASTM D 570

Volume Resistivity

1.0×10140.cm

ASTM D 876




Dimensions

Size(mm)              Width(mm)

                                               Standard Package

(M/Roll)

                Thickness(mm)

25*0.8

25                                                0.8                             5/Customized

25*1.0

25                                                1.0                              5/Customized

50*0.5

50                                                0.5                              5/Customized

50*0.7

50                                                0.7                              5/Customized

50*0.8

50                                                0.8                               5/Customized

50*1.8

50                                                1.8                               5/Customized

80*1.8

80                                                1.8                               5/Customized

100*1.8

100                                             1.8                                 5/Customized

Note: Other dimensions or package can be customized as request.
