Customized Waterproof silicone Self Fusing Tape for Electrical Application
Time: 2021-01-26 09:43:55     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.

Description

Self-fusing Silicone Tape is a convenient, ready to use tape which can be used to make airtight and waterproof seals on many types of materials and applications including electrical connections, hoses, and cables and to reduce vibration of hand tools. It is tear, abrasion, and UV resistant and it withstands exposure to fuel, water, oil, acids, and many solvents. It is a class H Insulator.


This product is designed to seal hoses and leaky plumbing, insulate electrical connections, wrap hand tool handles. Direction for use note:

1. Remove any excess dirt, oil, etc. from repair area and clean hands with hand cleaners or soap and water before starting the repair.

2. Remove package and peel 1-2 inches of liner from the tape. 3. Press the exposed tape firmly to the surface to be repaired, making sure to completely overlap the first wrap over itself while at the same time stretching the tape.

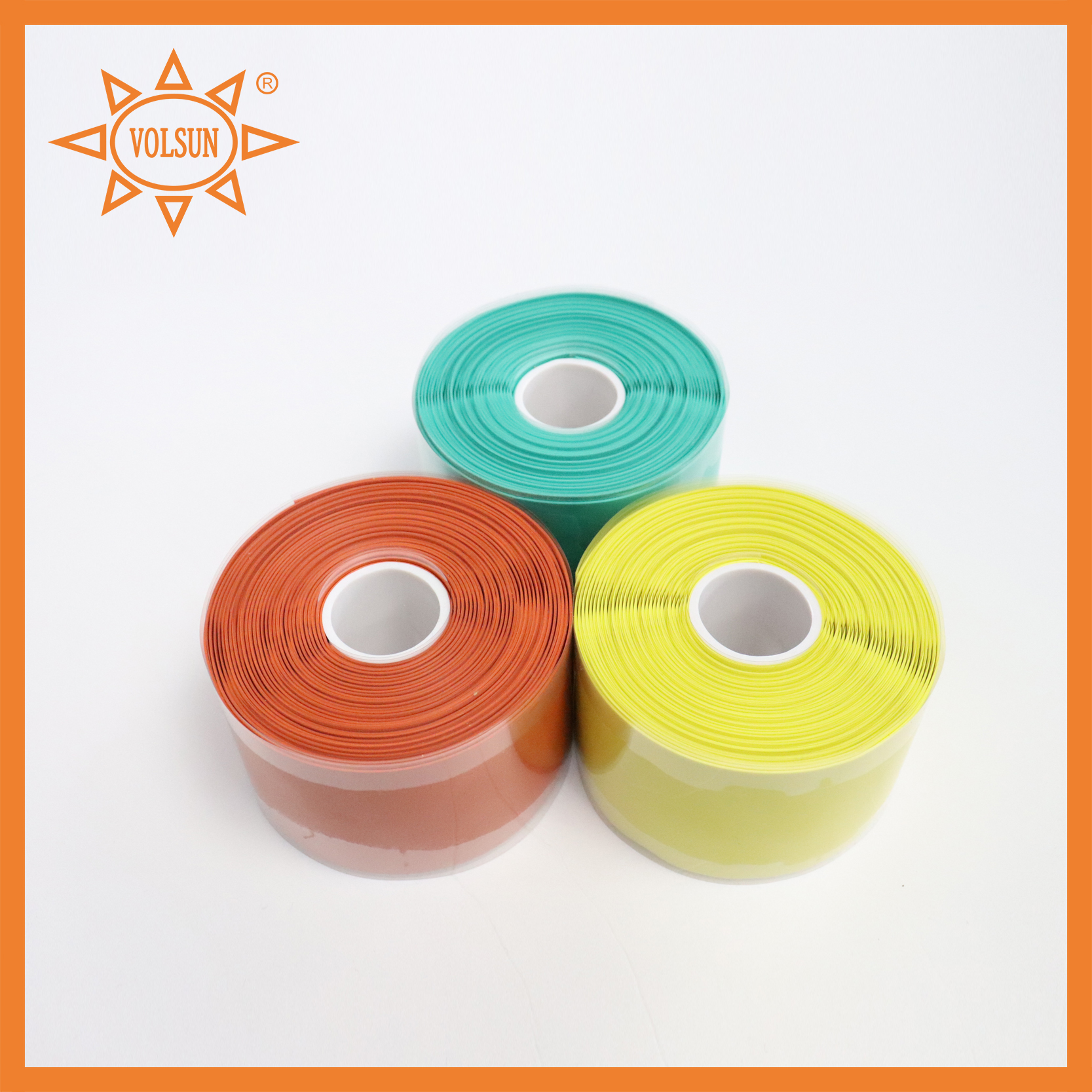

silicone self fusing tape



Features

·  Excellent heat, chemical and moisture resistance

·  Full cure is achieved in 24 hours

·  Tear and abrasion resistant

·  Non-flammable

·  UV resistant



Technical Data

Chemical Type

Silicone Gum

Appearance

Black Tape

Specific Gravity

1.15 g/ml

Odor

Odorless

Temperature Range(Continuous)

-50 - 400 F(-45 - 200oC)

(Intermittent)

-80 - 500 F(-62 - 260oC)

Tensile Strength

850 psi

Elongation

400%

Hardness

50A

Dielectric  Strength

400 Vpm

Cure Time (75F)

24hr


Specifications





Spec

Width(mm)

Thickness(mm)

Package(m/coil)





25*0.5

25

0.5

5m/OEM

25*0.8

25

0.8

5m/OEM

50*0.5

50

0.5

5m/OEM

50*0.7

50

0.7

5m/OEM

50*0.8

50

0.8

5m/OEM

50*1.8

50

1.8

5m/OEM

80*1.8

80

1.8

5m/OEM

100*1.8

100

1.8

5m/OEM
